Material
It is made from high-grade 52100 bearing steel, which undergoes strict heat treatment. This material ensures excellent hardness, wear resistance, and dimensional stability, allowing the bearing to perform well in long-term operations.
Features
• Double rubber seals ("2RS"): These seals offer superior protection against water, oil, and fine contaminants, maintaining internal lubrication more effectively than metal shields, especially in humid or dusty environments.
• Low friction: The precision-machined raceways and rolling elements minimize friction, enabling smooth and quiet rotation.
• Compact structure: Its small size makes it suitable for applications with limited installation space.
• Good load capacity: Despite its compactness, it can bear moderate radial loads stably.
Applications
• Garden equipment: Used in small lawnmower motors and water sprinkler mechanisms.
• Household appliances: Applied in humid environments like washing machine pump components and dishwasher small motors.
• Personal care devices: Integrated into electric toothbrushes and hair clippers that may come into contact with moisture.
• Small industrial pumps: Utilized in miniature liquid transfer pumps where sealing performance is crucial.
| Part Number | 692 2RS |
| Characteristics |
| System of Measurement | Metric |
| Bearing Type | Ball |
| Seal Type | Sealed |
| Inner Ring Type | Standard |
| For Load Direction | Radial |
| Construction | Single Row |
| Ball Qty | 6 |
| Tolerance Class | ABEC1 |

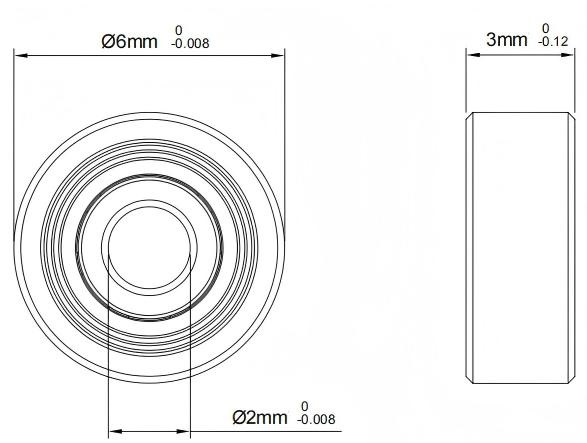

| Dimensions |
| Bore Dia | 2 mm |
| Bore Dia Tolerance | -0.008mm to 0 |
| Outer Dia | 6 mm |
| Outer Dia Tolerance | -0.008mm to 0 |
| Width | 3 mm |
| Width Tolerance | -0.12mm to 0 |
| Ball Dia | 1.2 mm |
| Radial Clearance | 0.005mm to 0.01 mm |
| Radial Clearance Trade No | MC3 |
| Material |
| Ring Material | Chrome Steel |
| Ball Material | Chrome Steel |
| Cage Material | Carbon Steel |
| Shield Material | Nitrile Rubber |
| Performance |
| Dynamic Radial Load | 63 lbf |
| Static Radial Load | 18 lbf |
| Max Speed (X1000 rpm) | 75 |
| Temperature Range | -30° to 110 °C |
| Properties |
| Lubrication | Required |
| RoHS | Compliant |
| REACH | Compliant |
| Weight | 0.35 g |
