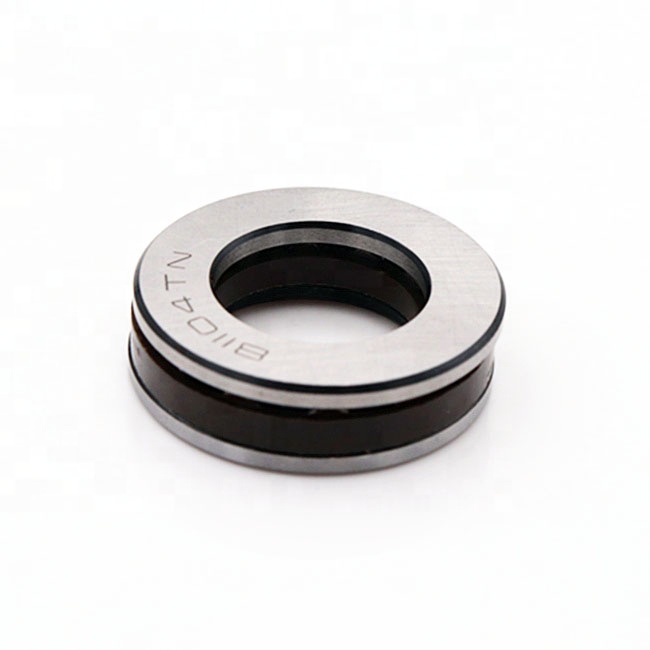

Cylindrical roller thrust bearings
Place of Origin: Sichuan, China.
Brand: neutral, TIK or your brand.
Package: plastic bag/box/carton/pallet.
Certification: ISO9001:2015.
Loading Port: Shanghai, Ningbo, Tianjin, Qingdao.
Samples: Free samples are available.
Payment: Western Union, T/T, D/P, L/C.
Quantity in stock: 100,000 pcs.
Request a Quote
Cylindrical roller thrust bearings have a high axial load carrying capacity, are extremely rigid and can support axial forces in one direction. Cylindrical roller thrust bearings have a greater load carrying capacity than axial needle roller bearings with the same bearing diameter.
Cylindrical roller thrust bearings are particularly suitable where:
A: high axial and shock locks occur in one direction and no radial loads are present.
B: the load carrying capacity of comparable axial deep groove ball bearings is no longer sufficient.
C: the axial space available is only very small.
D: the bearing parts can or must be mounted separately.
Features

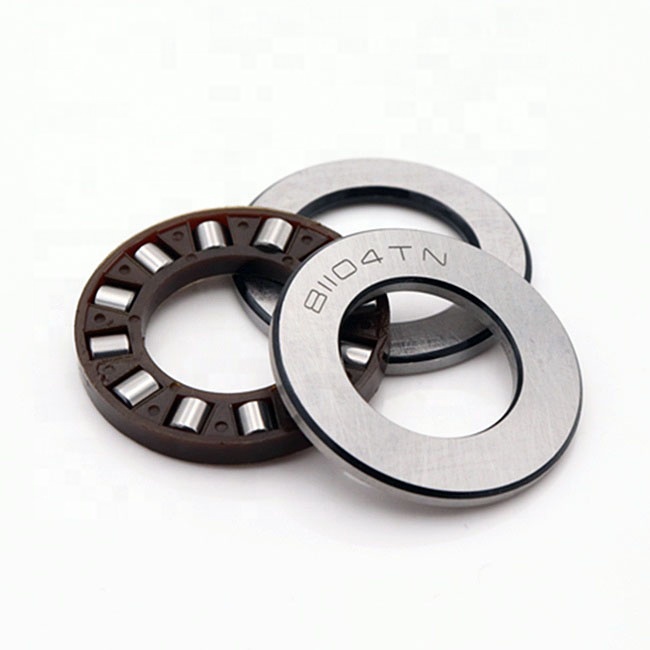

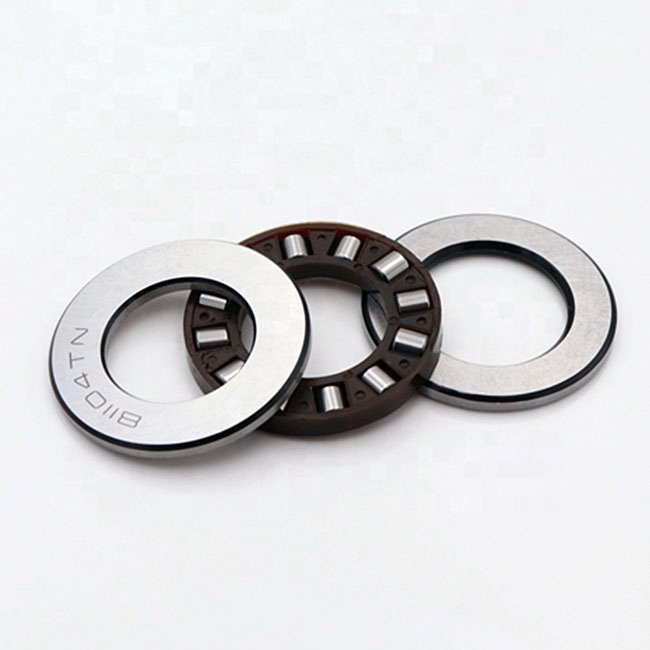

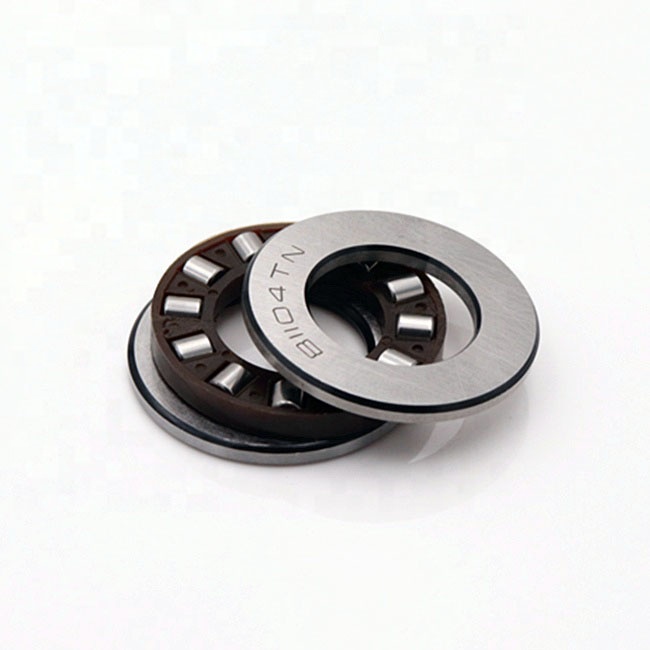

These bearings consist of rings with raceways (shaft washer and housing washer) and cylindrical rollers and the cage assembly. The contour surface of the cylindrical rollers makes the even distribution of the pressure between the rollers and rolling surfaces. They can carry axial load in single direction. Greater the load carrying capacity is, bigger the rigidity in the axial direction is.

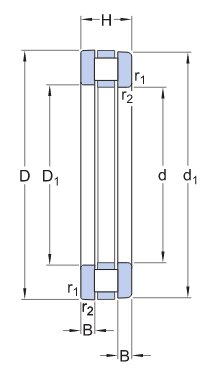

| Bearing No. | Boundary dimensions | Basic load ratings | Speed ratings |
| mm | Dynamic | Static | Reference speed | Limiting speed |
| d | D | H | Dw | C[kN] | C0[kN] | [r/min] | [r/min] |
| 81102 TN | 15 | 28 | 9 |
| 11.2 | 27 | 4 300 | 8 500 |
| 81103 TN | 17 | 30 | 9 |
| 12.2 | 31.5 | 4 300 | 8 500 |
| 81104 TN | 20 | 35 | 10 |
| 18.6 | 48 | 3 800 | 7 500 |
| 81105 TN | 25 | 42 | 11 |
| 25 | 69.5 | 3 200 | 6 300 |
| 81106 TN | 30 | 47 | 11 |
| 27 | 78 | 3 000 | 6 000 |
| 81107 TN | 35 | 52 | 12 |
| 29 | 93 | 2 800 | 5 600 |
| 81108 TN | 40 | 60 | 13 |
| 43 | 137 | 2 400 | 5 000 |
| 81109 TN | 45 | 65 | 14 |
| 45 | 153 | 2 200 | 4 500 |
| 81110 TN | 50 | 70 | 14 |
| 47.5 | 166 | 2 200 | 4 300 |
| 81111 TN | 55 | 78 | 16 |
| 69.5 | 285 | 1 900 | 3 800 |
| 81112 TN | 60 | 85 | 17 |
| 80 | 300 | 1 800 | 3 600 |
| 81113 TN | 65 | 90 | 18 |
| 83 | 320 | 1 700 | 3 400 |
| 81114 TN | 70 | 95 | 18 |
| 86.5 | 345 | 1 700 | 3 400 |
| 81115 TN | 75 | 100 | 19 |
| 83 | 335 | 1 600 | 3 200 |
| 81116 TN | 80 | 105 | 19 |
| 81.5 | 335 | 1 500 | 3 000 |
| 81117 TN | 85 | 110 | 19 |
| 88 | 365 | 1 500 | 3 000 |
| 81118 TN | 90 | 120 | 22 |
| 110 | 450 | 1 300 | 2 600 |
| 81120 TN | 100 | 135 | 25 |
| 156 | 630 | 1 200 | 2 400 |
| 81122 TN | 110 | 145 | 25 |
| 163 | 680 | 1 100 | 2 200 |
| 81124 TN | 120 | 155 | 25 |
| 170 | 735 | 1 100 | 2 200 |
| 81126 TN | 130 | 170 | 30 |
| 200 | 880 | 950 | 1 900 |
| 81128 TN | 140 | 180 | 31 |
| 208 | 930 | 900 | 1 800 |
| 81130 TN | 150 | 190 | 31 |
| 212 | 1 000 | 850 | 1 700 |
| 81132 TN | 160 | 200 | 31 |
| 216 | 1 020 | 850 | 1 700 |
| 81134 TN | 170 | 215 | 34 |
| 285 | 1 340 | 800 | 1 600 |
| 81136 M | 180 | 225 | 34 |
| 270 | 1 270 | 750 | 1 500 |
| 81138 M | 190 | 240 | 37 |
| 310 | 1 460 | 700 | 1 400 |
| 81140 M | 200 | 250 | 37 |
| 310 | 1 500 | 700 | 1 400 |
| 81144 M | 220 | 270 | 37 |
| 335 | 1 700 | 670 | 1 300 |
| 81148 M | 240 | 300 | 45 |
| 475 | 2 450 | 560 | 1 100 |
| 81152 M | 260 | 320 | 45 |
| 490 | 2 600 | 530 | 1 100 |
| 81156 M | 280 | 350 | 53 |
| 680 | 3 550 | 480 | 950 |
| 81160 M | 300 | 380 | 62 |
| 850 | 4 400 | 430 | 850 |
| 81164 M | 320 | 400 | 63 |
| 880 | 4 650 | 400 | 800 |
| 81168 M | 340 | 420 | 64 |
| 900 | 4 900 | 380 | 800 |
| 81172 M | 360 | 440 | 65 |
| 900 | 4 900 | 380 | 750 |
| 81176 M | 380 | 460 | 65 |
| 900 | 5 000 | 360 | 750 |
| 81184 M | 420 | 500 | 65 |
| 980 | 5 850 | 340 | 700 |
| 81188 M | 440 | 540 | 80 |
| 1 430 | 8 000 | 300 | 600 |
| 81192 M | 460 | 560 | 80 |
| 1 460 | 8 500 | 300 | 600 |
| 81196 M | 480 | 580 | 80 |
| 1 460 | 8 500 | 280 | 560 |
| 811/500 M | 500 | 600 | 80 |
| 1 560 | 9 300 | 280 | 560 |
| 811/530 M | 530 | 640 | 85 |
| 1 730 | 10 600 | 260 | 530 |
| 811/560 M | 560 | 670 | 85 |
| 1 760 | 11 000 | 260 | 500 |
| 811/600 M/HB1 | 600 | 710 | 85 |
| 1 800 | 11 600 | 240 | 500 |
| 811/630 M | 630 | 750 | 95 |
| 2 160 | 13 700 | 220 | 450 |
| 811/670 M | 670 | 800 | 105 |
| 2 550 | 16 300 | 200 | 400 |
| 811/750 M | 750 | 900 | 120 |
| 3 250 | 21 200 | 170 | 340 |
| 811/800 M | 800 | 950 | 120 |
| 3 450 | 22 000 | 170 | 340 |
| 811/850 M | 850 | 1 000 | 120 |
| 3 450 | 23 200 | 160 | 320 |
| 811/900 M | 900 | 1 060 | 130 |
| 4 000 | 27 000 | 150 | 300 |
| 811/950 M | 950 | 1 120 | 135 |
| 4 400 | 30 000 | 140 | 280 |
| 811/1000 M | 1 000 | 1 180 | 140 |
| 4 750 | 32 500 | 130 | 260 |
| 811/1060 M | 1 060 | 1 250 | 150 |
| 5 300 | 37 500 | 120 | 240 |
| 811/1120 M | 1 120 | 1 320 | 160 |
| 6 000 | 41 500 | 110 | 220 |
