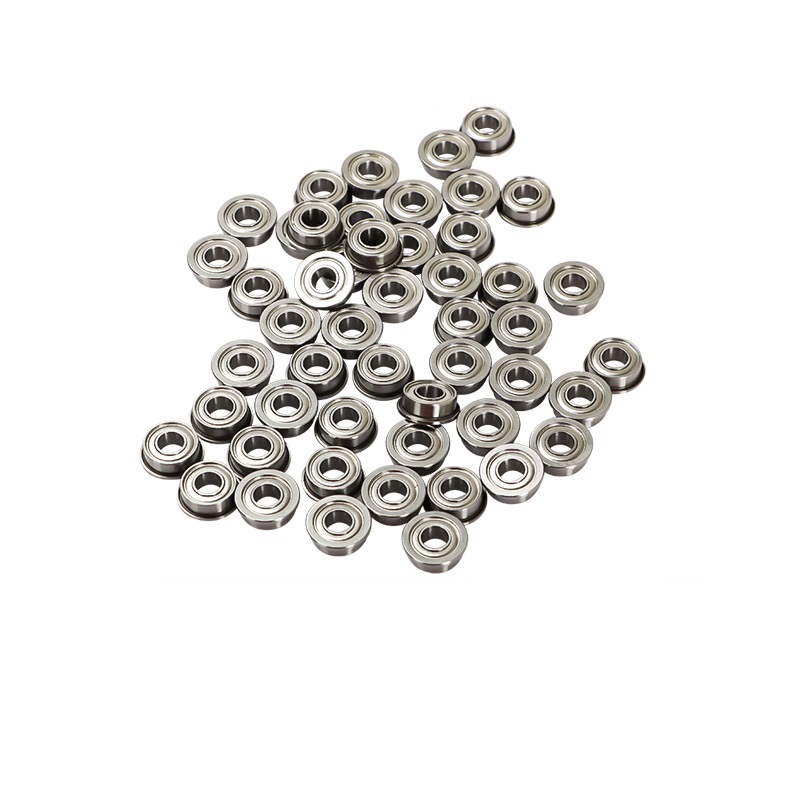

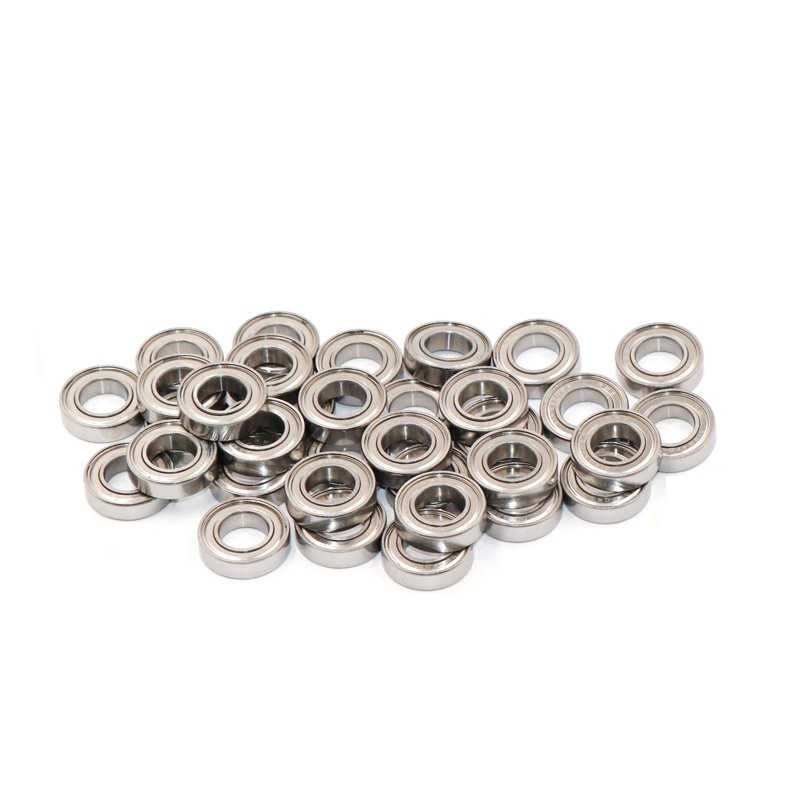

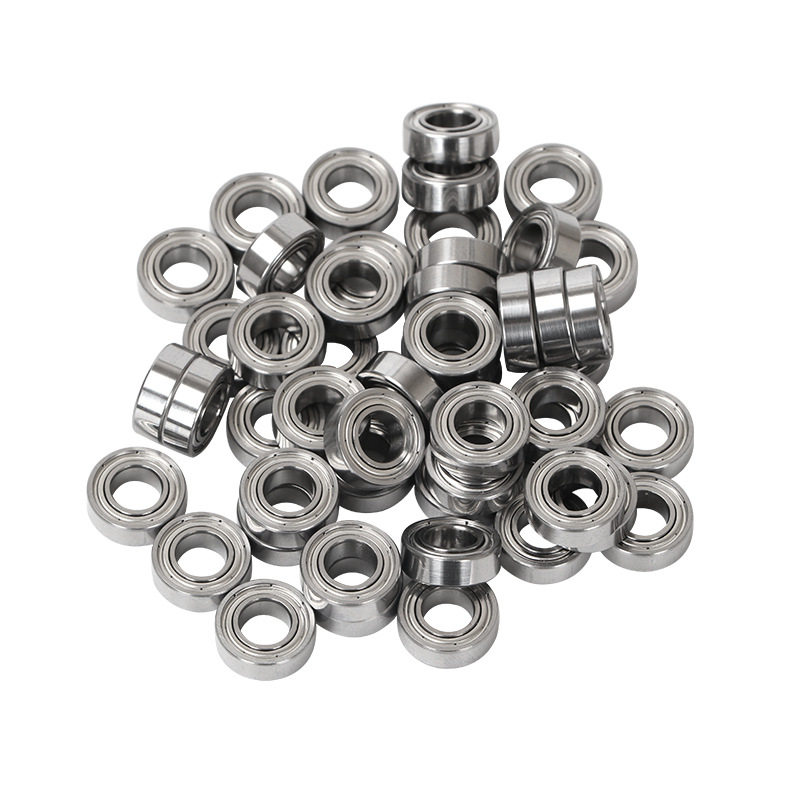

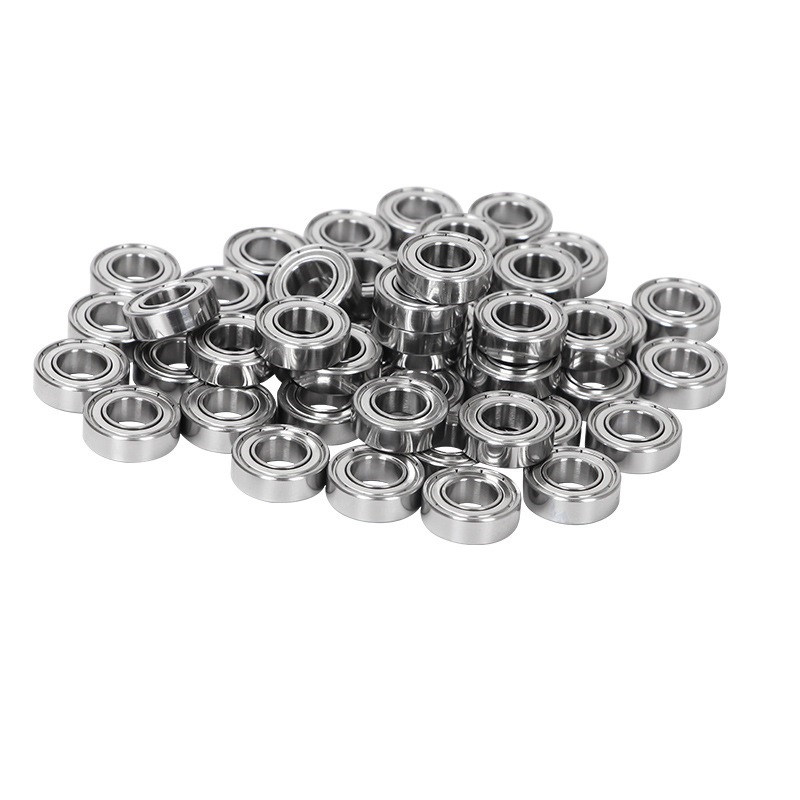

Miniature ball bearings 692ZZ 2x6x3mm
The 692ZZ is a small, durable bearing ideal for precision tasks.
Made from high-grade chromium alloy steel, it gets heat treatment to boost hardness and resist wear.
Its key features include double metal shields (marked "ZZ") that block dust, low friction for quiet, smooth rotation, and a compact size fitting tight spaces.
It’s commonly used in small motors, camera adjustments, and 3D printer parts.
Request a Quote
Material
The 692ZZ bearing is manufactured using high-quality 52100 chromium steel. This material is characterized by its exceptional hardness after heat treatment, which enhances the bearing's wear resistance significantly. It also has good dimensional stability, ensuring the bearing maintains its precision even under varying temperature conditions.
Features
• High rotational accuracy: The precise machining of its components guarantees smooth operation with minimal deviation.
• Excellent sealing: Equipped with double metal shields (denoted by "ZZ"), it effectively prevents the ingress of dust, debris and moisture, while retaining the lubricant inside.
• Low friction coefficient: The optimized design of the rolling elements and raceways reduces friction, contributing to energy efficiency and prolonged service life.
• Strong load capacity: Despite its small size, it can bear moderate radial and axial loads.
Applications
• Office equipment: Used in small motors of printers, scanners and shredders.
• Consumer electronics: Applied in the rotating parts of digital cameras, camcorders and portable DVD players.
• Automotive accessories: Utilized in small mechanisms like electric side mirrors and seat adjustment motors.
• Precision toys: Integrated into high-speed toy cars, remote-controlled helicopters and mechanical model kits.
| Part Number | 692ZZ |
| Characteristics |
| System of Measurement | Metric |
| Bearing Type | Ball |
| Seal Type | Shielded |
| Inner Ring Type | Standard |
| For Load Direction | Radial |
| Construction | Single Row |
| Ball Qty | 6 |
| Tolerance Class | ABEC1 |

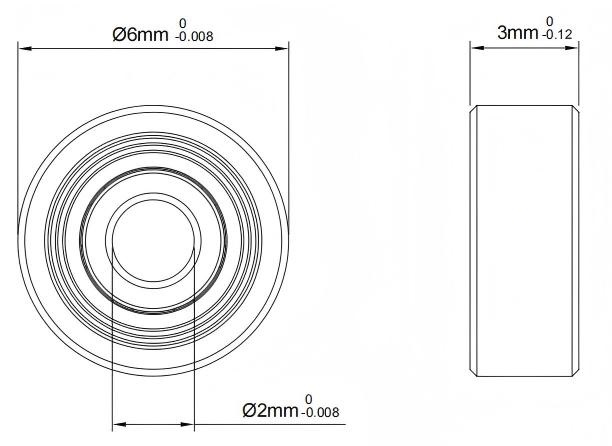

| Dimensions |
| Bore Dia | 2 mm |
| Bore Dia Tolerance | -0.008mm to 0 |
| Outer Dia | 6 mm |
| Outer Dia Tolerance | -0.008mm to 0 |
| Width | 3 mm |
| Width Tolerance | -0.12mm to 0 |
| Ball Dia | 1.2 mm |
| Radial Clearance | 0.005mm to 0.01 mm |
| Radial Clearance Trade No | MC3 |
| Material |
| Ring Material | Chrome Steel |
| Ball Material | Chrome Steel |
| Cage Material | Carbon Steel |
| Shield Material | Carbon Steel |
| Performance |
| Dynamic Radial Load | 63 lbf |
| Static Radial Load | 18 lbf |
| Max Speed (X1000 rpm) | 75 |
| Temperature Range | -30° to 110 °C |
| Properties |
| Lubrication | Required |
| RoHS | Compliant |
| REACH | Compliant |
| Weight | 0.35 g |
