Material

1. Ring Material: Similar to its 2RS counterpart, the inner and outer rings of the MR52ZZ are crafted from high-carbon chromium bearing steel (GCr15). This material delivers exceptional hardness (typically 60-65 HRC after heat treatment), superior wear resistance, and remarkable fatigue strength, enabling the bearing to endure continuous loads and high rotational speeds without compromising structural integrity.

2. Ball Material: The rolling elements are also made of chrome steel, ensuring a smooth surface finish that minimizes friction. Their high dimensional accuracy and roundness stability under thermal and mechanical stress contribute to consistent rotational precision.

3. Cage Material: The cage, responsible for maintaining uniform spacing between balls, is usually constructed from low-carbon steel (such as SPCC). This material offers a balance of strength and ductility, allowing the cage to withstand the centrifugal forces generated during high-speed operation while keeping the balls properly aligned.

4. Shield Material: The defining feature of the MR52ZZ is its double-sided metal shields, which are typically made from cold-rolled steel. These shields are press-fitted into the outer ring, creating a non-contact barrier that offers robust protection against larger contaminants like dust and debris without adding significant friction.

Characteristics

1. Enhanced Contaminant Resistance: The metal shields of the MR52ZZ provide superior defense against solid particles compared to rubber seals. While they do not offer a hermetic seal, they effectively block larger debris, making the bearing suitable for environments where dust or grit is present but liquid ingress is not a primary concern.

2. High-Temperature Tolerance: Unlike rubber-sealed bearings, the metal shields of the MR52ZZ can withstand elevated temperatures. This allows the bearing to operate reliably in applications where ambient temperatures reach up to 120°C (and potentially higher in short-term scenarios), making it ideal for use in proximity to heat sources like small motors or lighting fixtures.

3. Low Friction and High-Speed Performance: The non-contact design of the metal shields minimizes friction, enabling the MR52ZZ to achieve high rotational speeds with minimal energy loss. This characteristic, combined with the precision-machined components, ensures smooth operation even at elevated RPMs, making it suitable for fast-moving mechanisms.

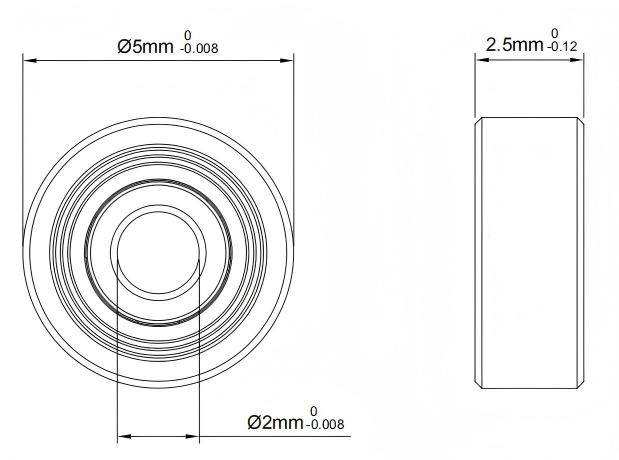

4. Compact Dimensions: With a bore diameter of 2mm, outer diameter of 5mm, and width of 2.5mm, the MR52ZZ shares the same compact footprint as other miniature bearings in its class. This small size allows it to be integrated into space-constrained applications such as micro-motors, precision gearboxes, and small-scale robotics.

5. Durable Construction: The use of high-quality steel for all components, combined with the robust shield design, gives the MR52ZZ excellent durability. It can withstand repeated mechanical stress, vibration, and moderate loads, ensuring a long service life in demanding applications.

Applications

1. Electrical Motors: The MR52ZZ is commonly used in small fractional-horsepower motors, such as those found in household appliances, power tools, and automotive auxiliary systems. Its high-temperature tolerance and low friction make it well-suited for the continuous operation of these motors.

2. Precision Machinery: In devices like 3D printers, laser engravers, and CNC micro-machining tools, the MR52ZZ plays a crucial role in ensuring the smooth movement of precision components. Its compact size and high rotational accuracy help maintain the precision of these machines' operations.

3. Consumer Electronics: The bearing is utilized in various consumer electronics, including computer cooling fans, hard disk drives, and optical drives. Its small size and low noise operation make it ideal for these applications, where space is limited and quiet performance is essential.

4. Automotive Components: In automotive systems such as dashboard instruments, window regulators, and seat adjustment mechanisms, the MR52ZZ provides reliable performance. Its ability to withstand temperature fluctuations and resist dust makes it a durable choice for these automotive applications.

5. Industrial Robotics: Miniature robotic arms and grippers often rely on the MR52ZZ for their joint mechanisms. The bearing's compact size, high-speed capability, and resistance to contaminants ensure precise and reliable movement in these robotic systems, even in factory environments where dust may be present.
