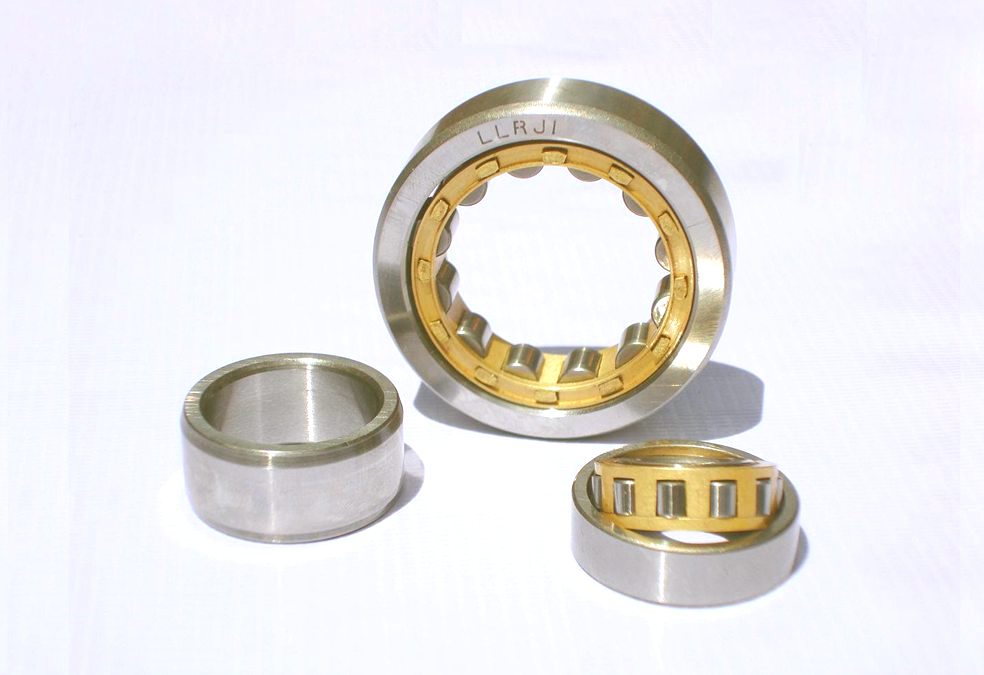

LLRJ1/2 RL 5 E Inch Cylindrical Roller Bearings
Unit Price: Negotiable.
Minimium Order Quantity: 10 PCS.
Place of Origin: Sichuan, China.
Production Capacity: 50,000 PCS / month.
Mark: Neutral, TIK or your mark.
Package: Industrial packing, single plastic bag/single box/carton/pallet.
Certification: ISO9001:2015.
Lead Time: 3-60 days.
Loading Port: Shanghai, Ningbo, Tianjin, Qingdao.
Samples: Free samples are available.
Payment: Western Union, T/T, D/P, L/C.
Quantity in stock: 2500 pcs.
Request a Quote
Features
Cylindrical rollers have linear contact with the raceway, and the bearings can carry heavier radial load. Cylindrical bearing applications are found in situations characterized by heavy load and shock load and also high rotation speed. The N type and NU type bearings can be movable along the shaft. They can adapt to the position changes between the shaft and housing caused by the thermal expansion or the mounting error and are most suitable for free end shafts. NJ and NF types can accept certain axial load in one direction, and NH and NUP types can accept certain axial load in two directions. Inner ring and outer ring can be separable, so they are convenient to mount and dismount.
Applications
These bearings are mostly found in middle-sized and large-sized motors, electricity generators, internal combustion engines, gas turbines, machine tool spindles, deceleration devices, unloading and lifting machines and other industrial machines.
| Bearing Number: | LLRJ1/2 |
| Interchanged No.: | RL 5 E |
| Brand: | TIK, Neutral or OEM |
| Size (mm): | 1/2 x 1 5/16 x 3/8 |
| Material: | GCr15 bearing steel |
| Precision: | P0 P6 P5 |
| Clearence: | C2 C0 C3 C4 C5 |
| Cage: | brass or steel cage |
| Weight (Kg): | 0.039 |
| Country of Origin: | CHINA |
| Certification: | ISO9001:2015 |

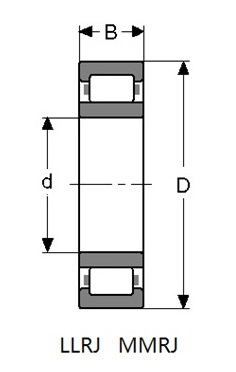

| TIK No. | Dimesions(inch) | Load rating / KN | weight | Interchange |
| Dynamic | Static | Approx. | FAG |
| d | D | B | C | C0 | kg |
| LLRJ1/2 | 1/2 | 1 5/16 | 3/8 | 9.85 | 6.95 | 0.039 | RL 5 E |
| LLRJ5/8 | 5/8 | 1 9/16 | 7/16 | 12.5 | 9.95 | 0.067 | RL 7 E |
| LLRJ3/4 | 3/4 | 1 7/8 | 9/16 | 22.8 | 19.4 | 0.123 | RL 8 E |
| LLRJ7/8 | 7/8 | 2 | 9/16 | 24.6 | 20.8 | 0.133 | RL 9 E |
| LLRJ1 | 1 | 2 1/4 | 5/8 | 31.1 | 27.9 | 0.189 | RL 10 E |
| LLRJ1 1/8 | 1 1/8 | 2 1/2 | 5/8 | 33.1 | 31.3 | 0.238 | RL 11 E |
| LLRJ1 1/4 | 1 1/4 | 2 3/4 | 11/16 | 42.1 | 37.9 | 0.303 | RL 12 E |
| LLRJ1 3/8 | 1 3/8 | 3 | 11/16 | 42.1 | 38.3 | 0.371 | RL 12 1/2 E |
| LLRJ1 1/2 | 1 1/2 | 3 1/4 | 3/4 | 54 | 48.8 | 0.451 | RL 13 E |
| LLRJ1 5/8 | 1 5/8 | 3 1/2 | 3/4 | 57.5 | 54 | 0.538 | RL 13 1/2 E |
| LLRJ1 3/4 | 1 3/4 | 3 3/4 | 13/16 | 68 | 63 | 0.647 | RL 14 E |
| LLRJ1 7/8 | 1.875 | 44 | 13/16 | 72 | 79 | 0.895 | RL 14 1/2 E |
| LLRJ2 | 2 | 4 | 13/16 | 72 | 79 | 0.765 | RL 15 E |
| LLRJ2 1/4 | 2 1/4 | 4 1/2 | 7/8 | 87.5 | 89.5 | 1.04 | RL 16 E |
| LLRJ2 1/2 | 2 1/2 | 5 | 15/16 | 86.5 | 97.5 | 1.48 | RL 17 E |
| LLRJ2 3/4 | 2 3/4 | 5 1/4 | 15/16 | 93 | 110 | 1.58 | RL 18 E |
| LLRJ3 | 3 | 5 3/4 | 1 1/16 | 139 | 147 | 1.93 | RL 19 E |
| LLRJ3 1/4 | 3.25 | 66 | 1.0625 | 115 | 140 | 2.24 | RL 19 1/2 E |
| LLRJ3 1/2 | 3 1/2 | 6 1/2 | 1 1/8 | 168 | 189 | 2.58 | RL 20 E |
| LLRJ3 3/4 | 3 3/4 | 6 3/4 | 1 1/8 | 145 | 181 | 2.94 | RL 20 1/2 E |
| LLRJ4 | 4 | 7 1/4 | 1 1/4 | 173 | 219 | 3.78 | RL 21 E |
| LLRJ4 1/4 | 4 1/4 | 7 1/2 | 1 1/4 | 222 | 270 | 4.42 | RL 21 1/2 E |
| LLRJ4 1/2 | 4 1/2 | 8 | 1 5/16 | 211 | 273 | 4.81 | RL 22 E |
| LLRJ4 3/4 | 4 3/4 | 8 1/4 | 1 5/16 | 210 | 274 | 4.81 | RL 22 1/2 E |
| LLRJ5 | 5 | 9 | 1 3/8 | 243 | 322 | 6.53 | RL 23 E |
| LLRJ5 1/2 | 5 1/2 | 9 1/2 | 1 3/8 | 249 | 339 | 6.89 | RL 23 1/2 E |
| LLRJ6 | 6 | 10 1/2 | 1 9/16 | 325 | 450 | 9.71 | RL 24 E |
| LLRJ6 1/2 | 6 1/2 | 11 | 1 9/16 | 334 | 471 | 10.3 | RL 24 1/2 E |
| LLRJ7 | 7 | 12 | 1 3/4 | 477 | 645 | 15.6 | RL 25 E |
| LLRJ7 1/2 | 7 1/2 | 12 1/2 | 1 3/4 | 508 | 712 | 16.1 | RL 25 1/2 E |
| LLRJ8 | 8 | 13 | 1 3/4 | 443 | 657 | 15.5 | RL 26 E |
| LLRJ8 1/2 | 8 1/2 | 14 | 2 | 531 | 786 | 20.6 | RL 26 1/2 E |
| LLRJ9 | 9 | 14 1/2 | 2 | 644 | 952 | 24 | RL 27 E |
| LLRJ9 1/2 | 9 1/2 | 15 1/8 | 2 | 556 | 856 | 26 | RL 27 1/2 E |
| LLRJ10 | 10 | 15 3/4 | 2 | 674 | 1040 | 29.6 | RL 28 E |
| LLRJ10 1/2 | 10 1/2 | 16 5/8 | 2 1/4 | 669 | 1050 | 31.8 | RL 28 1/2 E |
| LLRJ11 | 11 | 17 1/2 | 2 1/4 | 706 | 1110 | 35.8 | RL 29 E |
| LLRJ12 | 12 | 18 1/2 | 2 5/8 | 839 | 1310 | 43.2 | RL 29 1/2 E |
