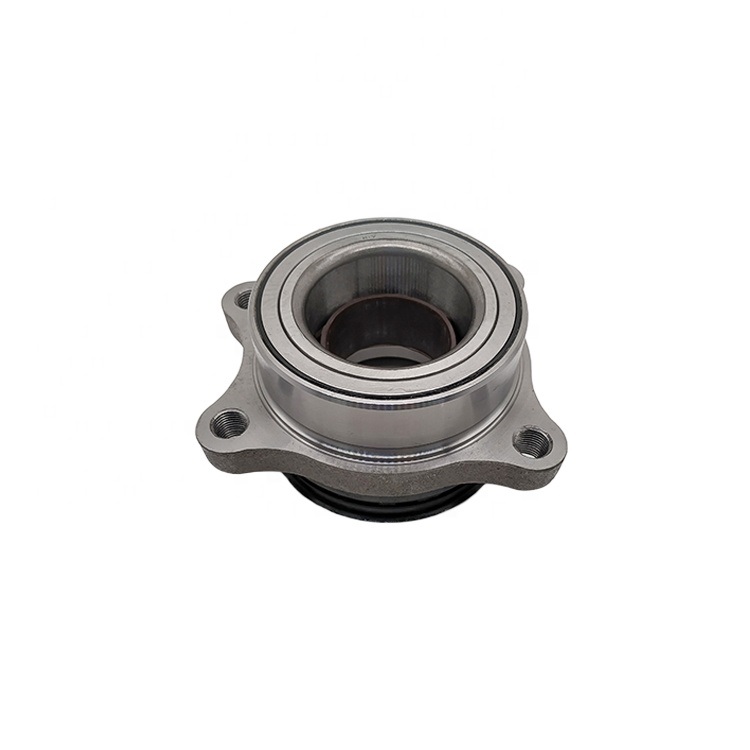

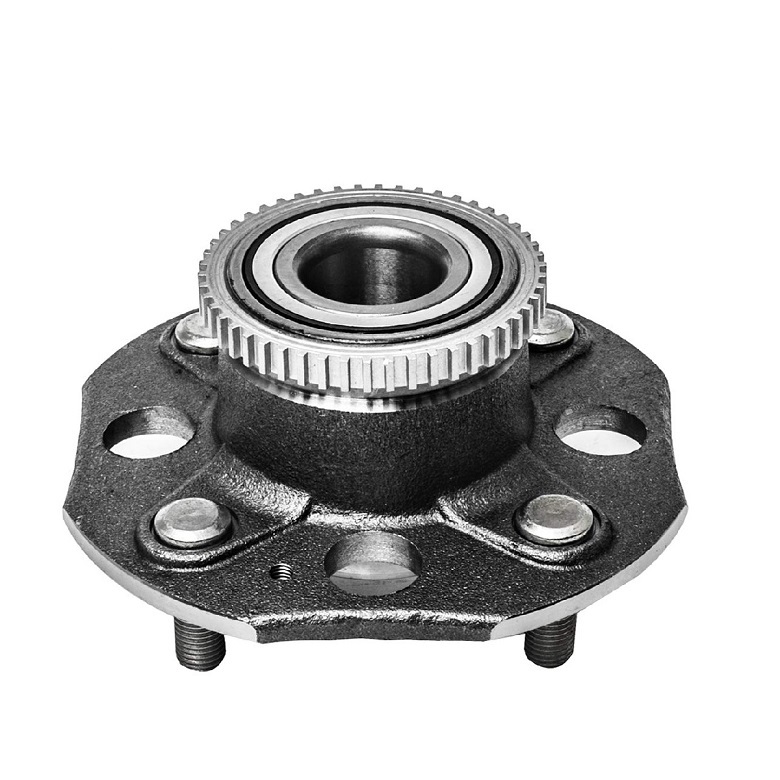

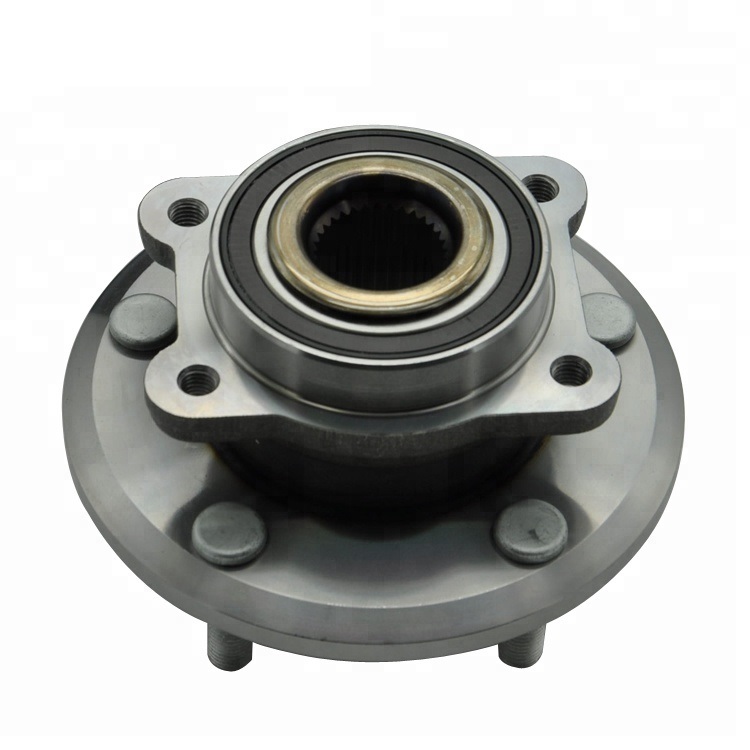

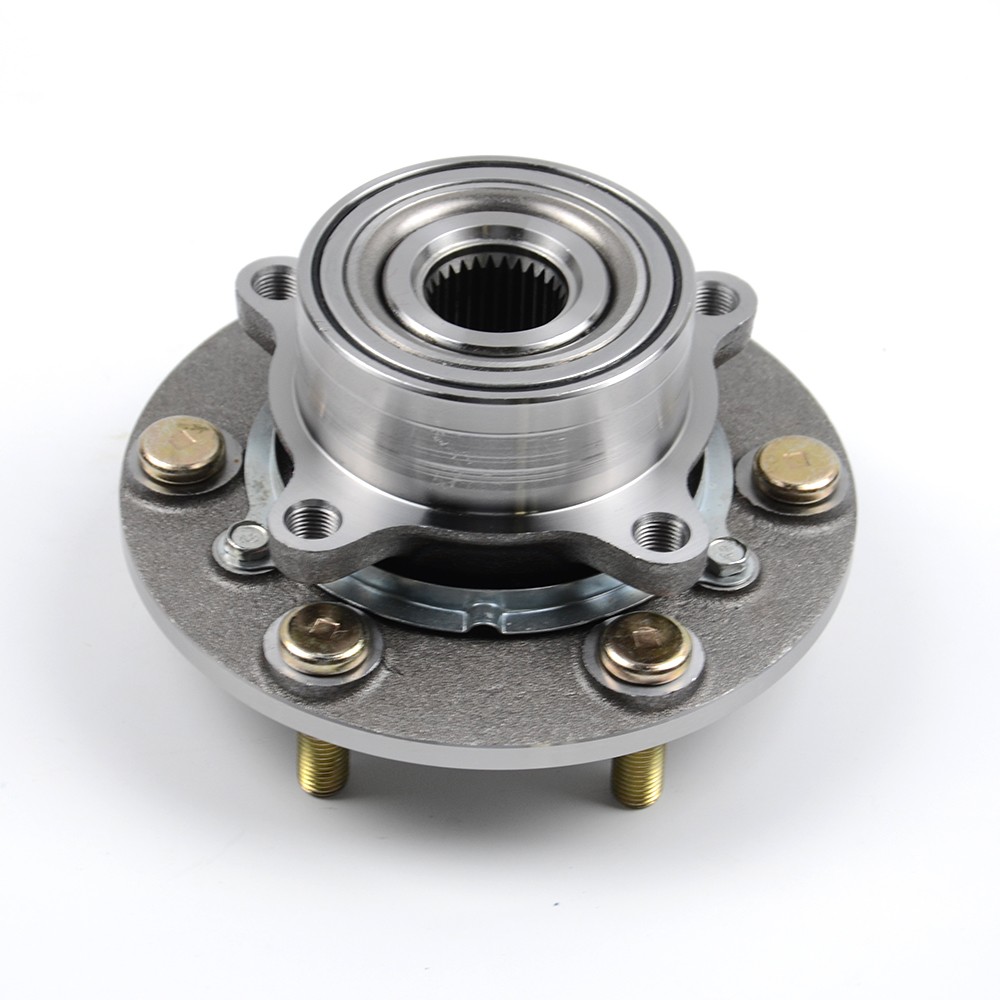

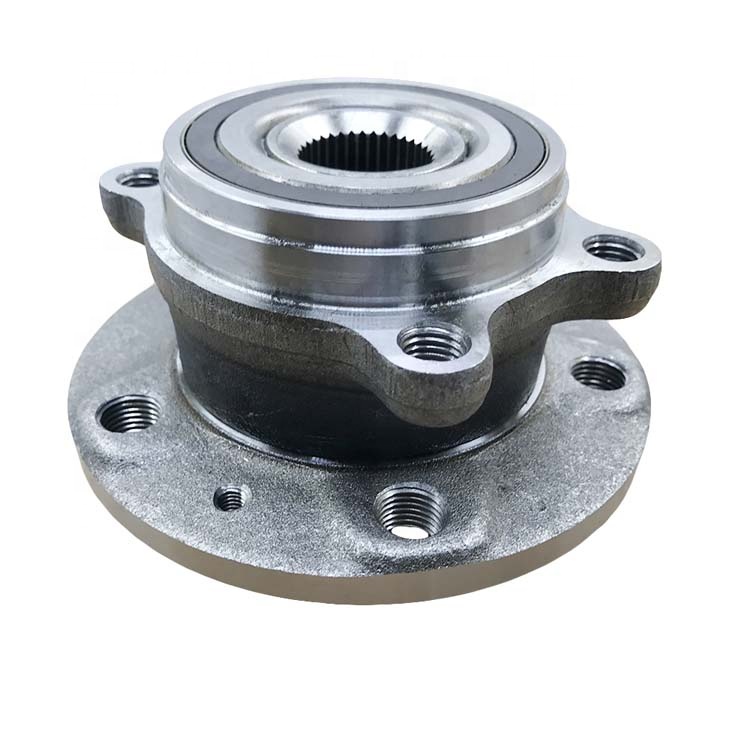

Second Generation Wheel Hub Units

The wheel hub bearing unit enables the wheels to rotate freely and smoothly, which plays a vital role in vehicle safety. They combine precision bearings and sensors, and increasingly include special coatings and greases to achieve higher performance.

We provide a series of wheel hub bearing units suitable for different models. For example, a double row angular contact ball bearing with mating ring and ball set is designed to provide the required axial clearance. This bearing unit combines the flange with the outer ring of the bearing, while the other combines the flange with the rotating ring.

There are other improvements in our product line, including bearing units with improved ABS and TCU sensors. The other one adopts anti-corrosion coating, which can simplify the bearing disassembly of steering knuckle and rim.

Request a Quote

Product Description

Features

The optimized contact angle provides specific preload and can withstand specific wheel loads.

Lightweight and compact design.

Models available for all types of vehicles.

Corrosion resistant coating increases protection and simplifies disassembly.

Low friction grease and preload range help reduce friction.

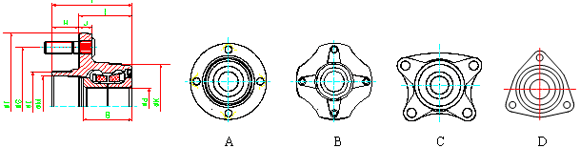

second generation whee hub units.gif

Unit No.	Dimensions (mm)											Outer ring flange		Automobile type
Unit No.	d	F	B	E1	E2	M	G	K	I	H	J	Bolt(hole) size	Flange shape	Automobile type
DACF1083CR	30	117	37	57.9	58.9	47	98	-	44.8	16.9	12	4 x M12 x 1.25	B	Fiat
BAFB633807D	30	117	37	57.9	58.9	51.8	98	66.8	44.8	16.9	12	4 x M12 x 1.25	B	Fiat
DACF1083CR-1	30	117	37	57.9	58.9	46.85	98	-	44.8	16.9	11	4 x M12 x 1.25	B	Fiat
633622-1	30	116	37	58	59	47	98	-	47	16.8	12	4 x M12 x 1.25	A	Fiat
633622	30	117	37	57.9	58.9	51.9	98	-	44.8	16.9	10.5	4 x M12 x 1.25	A	Fiat
633622-2	30	116	37	58	59	46.8	98	-	45	19.5	11.2	4 x M12 x 1.25	A	Fiat
633622-3	30	116	37	58	59	46.8	98	-	45	19.5	11.2	4 x M12 x 1.25	A	Fiat
TGB12095	25	132.5	43	60	65.9	54	100	-	55.6	19.5	12.5	4 x M12 x 1.5	A	Renault
TGB12095S49	25	132.5	43	60	65.9	54	100	75.5	61.8	19.5	12.5	4 x M12 x 1.5	A	Renault
IR 8688	32	129	38	65	71	60	108	-	43.6	17	12	4 x M12 x 1.25	A	Peugeot, Citroen
800179D	30	120	37	57	65	52	100	69.5	44.7	19	11.3	5 x M14 x 1.5	A	Volkswagen
801191E	28	120	39	57	65	51.9	100	66.3	41.5	20	10.6	5 x M14 x 1.5	A	Volkswagen
35016	28	120	40	60	-	47	100	63	49.5	6	9	4 x M12 x 1.25	B
DACF1050B	28	125.5	48	56	64	49.7	100	67.3	56.5	14	10	4 x M12 x 1.5	A	Mitsubishi
28BWK08g	28	125.5	48	56	64	49.7	100	67.3	56.5	14	10	4 x M12 x 1.5	A	Mitsubishi
57210-25000	28	140	38	54	62.5	47.7	100	70	50.5	14	10	4 x M12 x 1.5	B	Hyundai
57210-25100	28	140	38	54	62.5	47.7	100	70	50.5	14	10	4 x M12 x 1.5	B	Hyundai
52710-2D000	32	139	45	67	76	57.6	114.3	74	50.5	14	9	4 x M12 x 1.5	B	Hyundai
52710-2D115	32	139	45	67	76	57.6	114.3	74	50.5	14	9	4 x M12 x 1.5	B	Hyundai
52710-29XXX	28	139	38	66.9	76	57.7	114.3	66.95	50.5	14	9	4 x M12 x 1.5	B	Hyundai
52710-29450	28	139	38	66.9	76	57.7	114.3	66.95	50.5	14	9	4 x M12 x 1.5	B	Hyundai
52710-22400	28	139	38	66.9	90	57.7	114.3	70	50.5	14	9	4 x M12 x 1.5	B	Hyundai
52710-29400	28	139	38	66.9	76	57.7	114.3	70	50.5	14	9	4 x M12 x 1.5	B	Hyundai
DACF310203	31	-	47	65.9	-	59	100	73	44	14	10	4 x M10 x 1.25	D	Hyundai
513202	37	151.8	52	71.6	70.46	64	114.3	78	54.5	21	13	5 x 1/2'-20 UNF	A	Ford
578413	37	138.8	45	72.5	79	66	120	81.6	45	19	11.3	5 x M12 x 1.5	B	BMW
580494	45	-	41	90	-	-	106	88	37.2	3.8	10.5	4 x M10 x 1.0	D	BMW
3502950	30	123	50	56	64	50	100	65	56.5	14	10	4 x M12 x 1.5	A
BAF0006D	30	122	46	56	57	47.92	100	67	56	14	10	4 x M12 x 1.5	A
BAF0013E	30	116.5	37	58	59	52	98	70	44	16.8	10	4 x M12 x 1.5	A	Fiat
DACF20023	37	151	52	70.5	71.6	64	114.3	78	52	21	10	5 x 1/2'-20 UNF	A	Ford
BAF-4104E	30	120	37	57	65	52	100	69.5	44.5	19	10.5	4 x M14 x 1.5	A	Volkswagen
BAF-0095B	30	120	37	56.9	64.9	52	100	69.6	42.5	19	10.8	4 x M12 x 1.5	A	Volkswagen
DACF1005C	31	120	40	57	66	50.5	100	72.6	42	19	12	4 x M12 x 1.5	A	BMW
DACF1005CABS	31	120	40	57	66	50.5	100	72.6	42	19	12	4 x M12 x 1.5	A	BMW
DACF1018L	35	137	45	65	70	57	110	76	49	25	12	5 x M12 x 1.5	B	Opel
DACF1033K	37	139	45	72.5	79	65.9	120	79	45	19	11	5 x M12 x 1.5	C	BMW
DACF1033K-1	37	139	45	72.5	79	65.9	120	79	45	19	11	5 x M12 x 1.5	C	BMW
DACF1033K-2	37	139	45	72.5	79	65.9	120	79	45	19	11	5 x M12 x 1.5	B	BMW
DACF1091	30	-	50	66	-	58.3	90	68	44	10	10	4 x M10 x .25	D
DACF1092	40	-	43	84	-	-	106	-	26.6	16.4	10	4 x M12 x 1.25	D
DACF1097	30	-	42	-	-	63	99	72	51.8	-	7.7	4 x Ø10.5	D	Toyota
28BWK12	28	-	42	-	-	60.94	97	66	51.9	-	7.7	4 x Ø10.5	D	Toyota
HUB065/15	28	134	40	60	64	51	114.3	63	49.5	18	9	4 x M12 x 1.25	B
HUB065/15 ABS	28	134	40	60	64	51	114.3	63	49.5	18	9	4 x M12 x 1.25	B
HUB081-44	43	-	44	79.9	82.8	-	102	-	26	16.5	14.5	4 x M10 x 1.25	D	Honda
HUB083-15	30	151.5	41	64	-	58	114.3	65.96	55.27	11.55	9.3	4 x M12 x 1.5	B	Honda
HUB083-15ABS	30	151.5	41	64	-	58	114.3	65.96	55.27	11.55	9.3	4 x M12 x 1.5	B	Honda
HUB008	28	134	40	56	61	51	100	62.5	49.5	11.5	9	4 x M12 x 1.5	A	Nissan
HUB008ABS	28	134	40	56	61	51	100	62.5	49.5	11.5	9	4 x M12 x 1.5	A	Nissan
HUB005-39	30	136	41	56	60.9	51	100	66	54.7	11.5	8	4 x M12 x 1.5	A	Nissan
HUB005-39ABS	30	136	41	56	60.9	51	100	66	54.7	11.5	8	4 x M12 x 1.5	A	Nissan
HUB184	27	134	50	58.9	68	52	100	64.05	52.5	15	11	4 x M12 x 1.5	B	Nissan
HUB184ABS	27	134	50	58.9	68	52	100	64.05	52.5	15	11	4 x M12 x 1.5	B	Nissan
27BWK06	27	148	50	65.9	67.9	59	114.3	64	52.5	15.5	11.5	4 x M12 x 1.25	B	Nissan
HUB188-6	30	148	48	65.9	67.95	59	114.3	67	49	17.7	10.5	5 x M12 x 1.25	A	Nissan
HUB188-6ABS	30	148	48	65.9	67.95	59	114.3	67	49	17.7	10.5	5 x M12 x 1.25	A	Nissan
HUB280	30	140	50	67	90	59	114.3	68.9	56.5	15.5	9	4 x M12 x 1.5	A	-
HUB280-1	30	140	50	67	90	59	114.3	68.9	56.5	15.5	9	4 x M12 x 1.5	A	-
TGB12894	32	128	34	64.9	71	60	108	-	42	16	12.5	4 x M12 x 1.25	C	Renault
27BWK03	27	148	55	66	68	52	114.3	60	57.4	15.6	11.7	4 x M12 x 1.25	B	Nissan
27BWK03ABS	27	148	55	66	68	52	114.3	60	57.4	15.6	11.7	4 x M12 x 1.25	B	Nissan
30BWK10	30	-	42	-	-	63	99	72	51.8	-	7.7	4 x Ø10.5	D	Toyota
DACF1041	30	122	47	54	55	48	100	65	56.2	13.3	8	4 x M12 x 1.5	A	-
DACF1041JR	30	122	47	54	55	48	100	65	56.2	13.3	8	4 x M12 x 1.5	A	-
HUB048-35	27	134	40	59	61	50	100	62	45	15	11	4 x M12 x 1.25	B	-
HUB048-35ABS	27	134	40	59	61	50	100	62	45	15	11	4 x M12 x 1.25	B	-
HUB042-32	30	148	48	65.9	67.95	52.1	114.3	72	49	15.5	12	4 x M12 x 1.5	A	Nissan
800179B	30	120	37	57	65	52	100	69.5	44.7	19	11.3	4 x M12 x 1.5	A	Volkswagen
36BWK02ABS	36	140	62	67	72	60	114	78	59	18.7	10	5 x M12 x 1.5	A	Mazda
DACF1050B JH	28	125.5	48	56	64	49.7	100	67.3	56.5	14	10	4 x M12 x 1.5	A	Mitsubishi
BAF0066D	32	128	38	65	71	60	108	78	42	17	11	4 x M12 x 1.25	A	-
HUB002	25	134	40	56	61	51	100	60	49.5	11.5	9	4 x M12 x 1.5	A	Nissan
DACF1086	30	140	50	67	90	58.9	114.3	69	56.5	15.5	10	4 x M12 x 1.5	A	-
DACF1023D	35	137	45	65	68	53.3	108	75	49	20.5	12	5 x M12 x 1.5	A	-
HUB294	28	134	45	56	61	51	100	62.5	54.5	11.5	9.5	4 x M12 x 1.5	B	Honda
512025	27	125	51.5	59	67.9	52	100	69	51.5	15	9	4 x M12 x 1.25	B	Nissan
BE00700	30	116.5	37	58	59	51.8	98	71.2	44.8	17	11	4 x M12 x 1.25	A	Fiat
DACF1050E	28	140.8	50.5	56	-	47.8	100	66.6	57	14	10.5	4 x M12 x 1.5	B	CHARAD
TGB40175S05	32	129	38	65	71	60	108	-	43.6	17	12	4 x M12 x 1.25	B	Peugeot, Citroen
BAF4047D	33	140	51	67	72	60	114.3	-	59	14.5	10	4 x M12 x 1.5	B	-
30BWK06	30	148	48	65.9	67.95	52.1	114.3	72	49	15.5	12	5 x M12 x 1.5	A	Nissan
HUB066ABS	33	139.5	51	66.9	71.95	60	114.3	70.95	59	14.5	6	5 x M12 x 1.5	B	Mazda
