Home / Products / Spherical Plain Bearing & Rod End

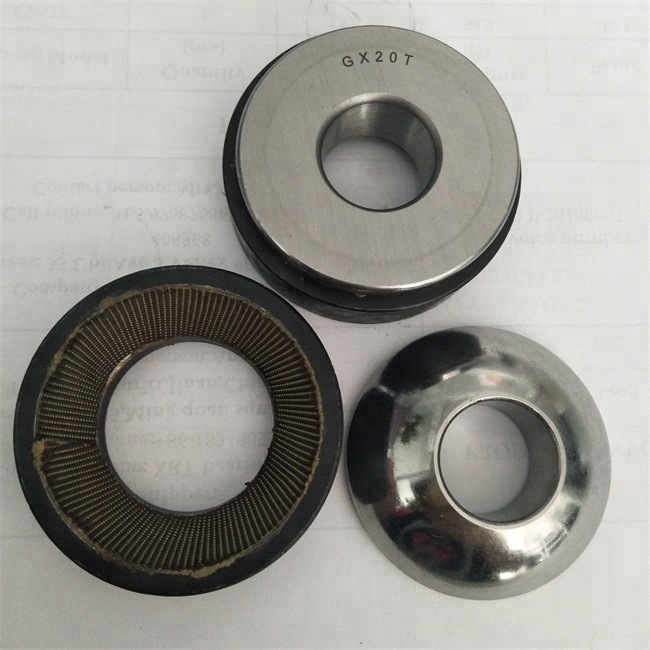

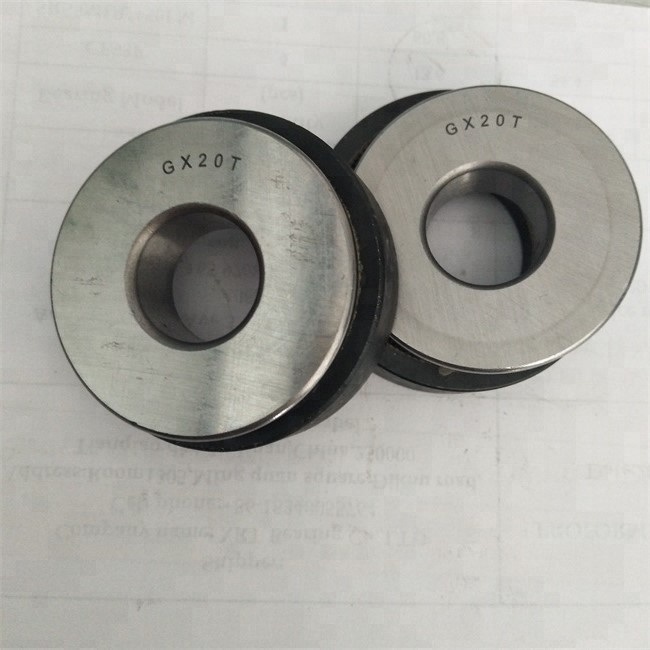

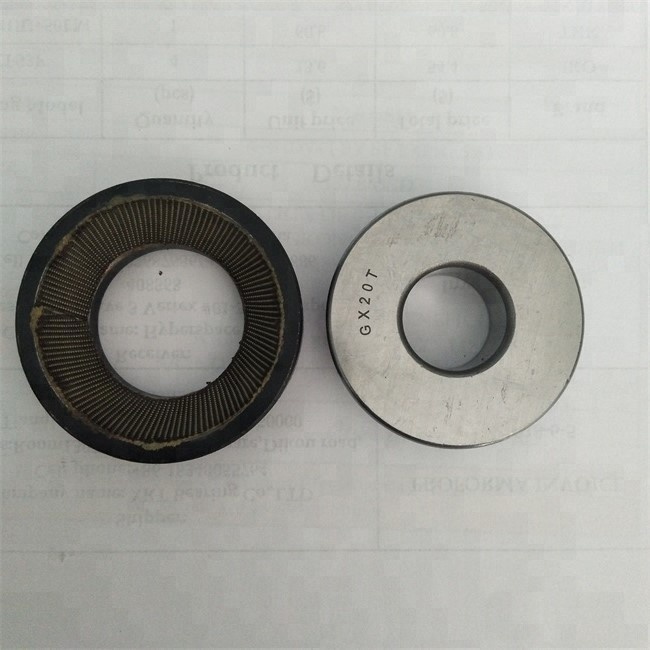

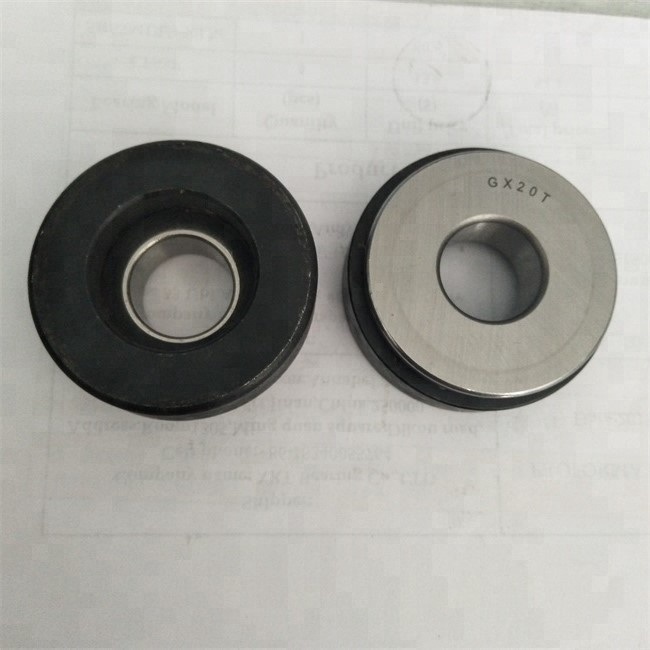

GX...T Series
Radial spherical plain bearings have an inner ring with a sphered convex outside diameter and an outer ring with a correspondingly sphered but concave inside surface. Their design makes them particularly suitable for bearing arrangements where alignment movements between shaft and housing have to be accommodated, or where oscillating or recurrent tilting or slewing movements must be possible at relatively slow sliding speeds, often accompanied with heavy loads.
Request a Quote
Product Description

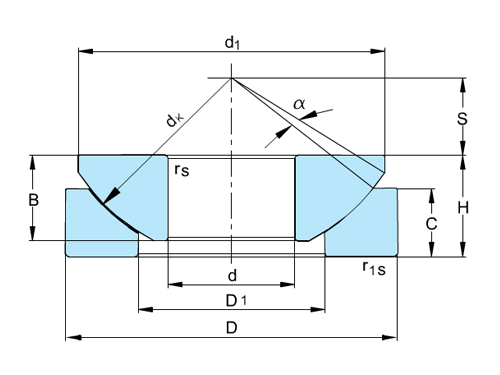

Bearing No.Boundary dimensions(mm)Mass
dDBCHdkSd1D1rs,r1sα°Kg
maxminmin≈≈
GX10T10307.579.532727.515.50.650.036
GX12T12359.59.31338832180.650.072
GX15T15421110.81546103922.50.660.108
GX17T174711.811.216521143.5270.640.137
GX20T205514.513.8206012.55031150.246
GX25T256216.516.722.5681458.534.5150.415
GX30T30751919268217.57042150.614
GX35T35902220.72898228450.5150.973
GX40T401052721.53211424.59759161.59
GX45T451203125.536.512827.511067162.24
GX50T501303330.542.51393012070163.14
GX60T601503734451603514084164.63
GX70T701604236.5501763515394.5135.37
GX80T8018043.5385019742.5172107.5146.91
GX100T100210514659222451981271.1410.9
GX120T12023053.5506425052.52201451.1313.9
GX140T14026061547227452.52431771.5318.1
GX160T160290665877313652712001.5223.2
GX180T18032074628634067.52992251.5430.9
GX200T200340806687365703202471.5134.2
