Home / Products / Spherical Plain Bearing & Rod End

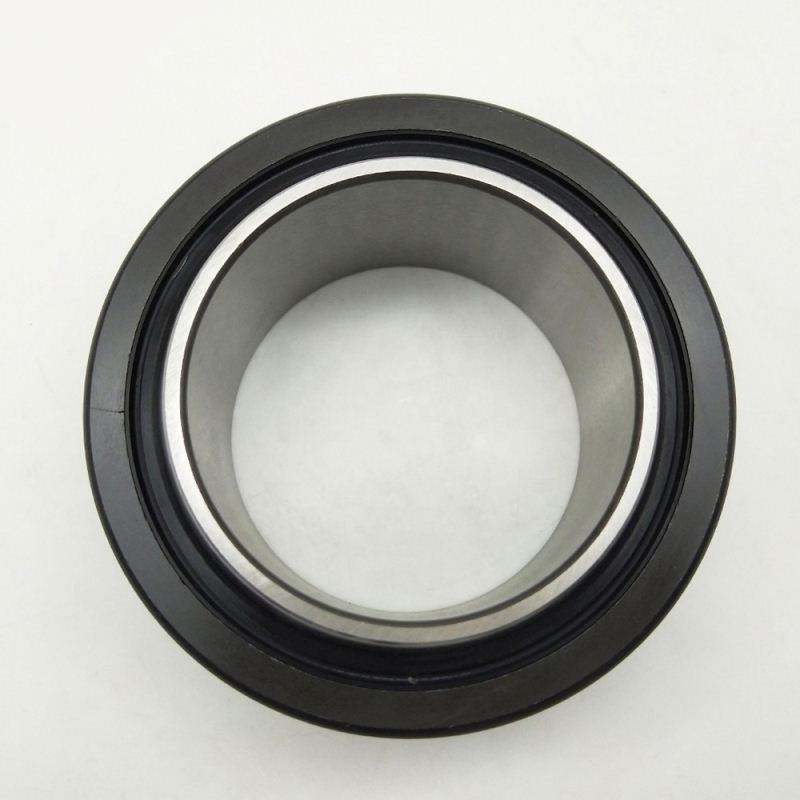

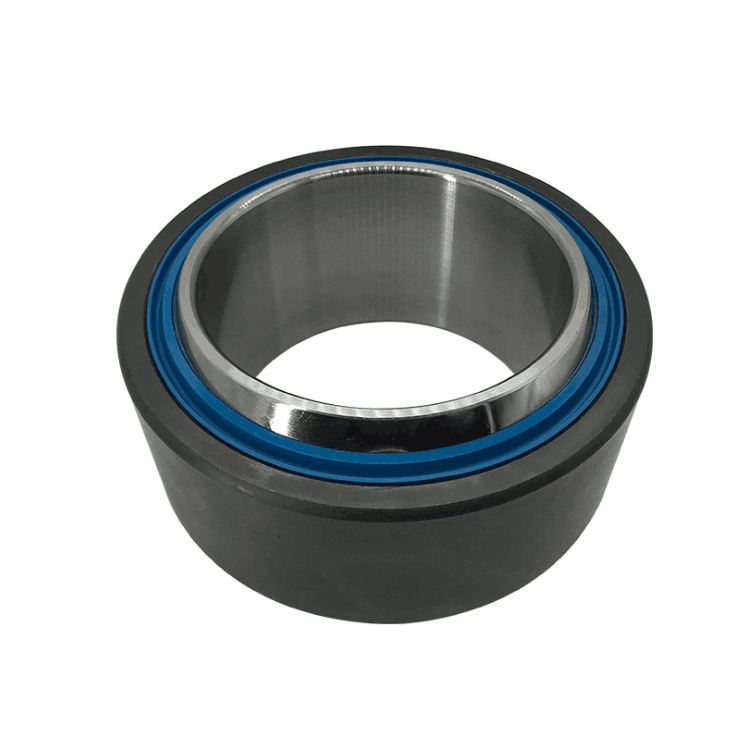

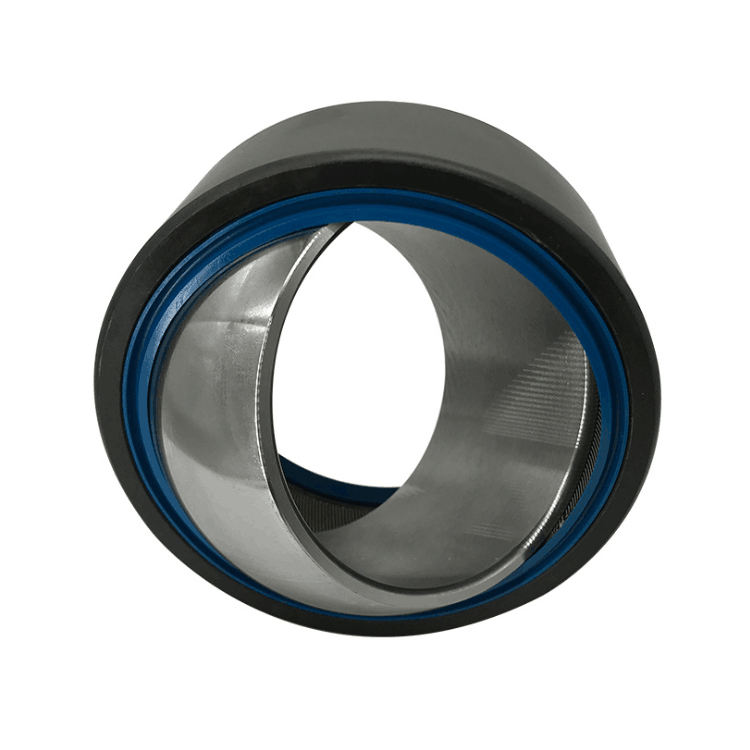

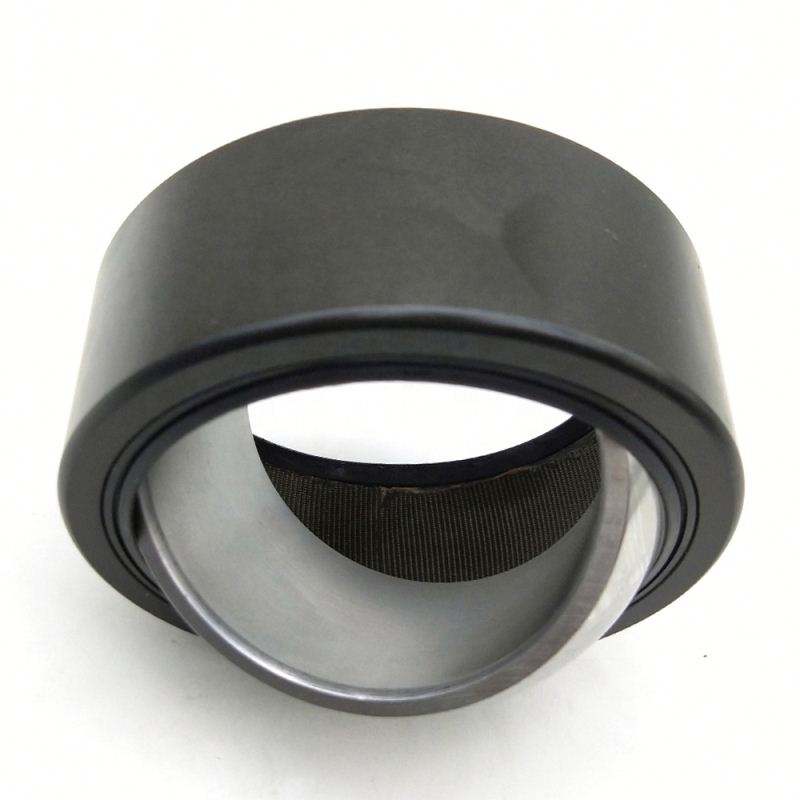

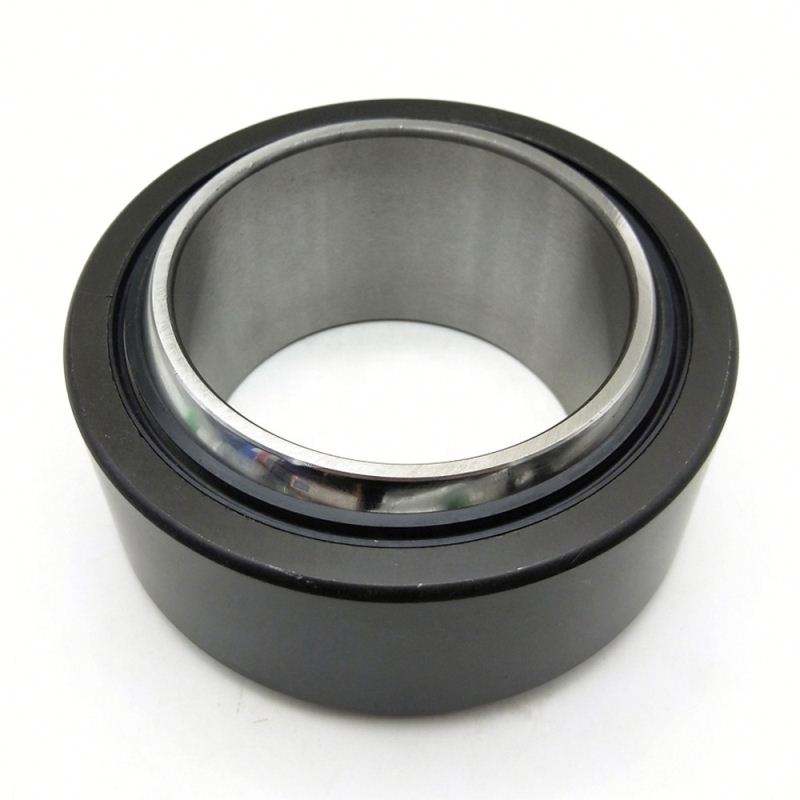

GEH...XT 2RS Series
Radial spherical plain bearings have an inner ring with a sphered convex outside diameter and an outer ring with a correspondingly sphered but concave inside surface. Their design makes them particularly suitable for bearing arrangements where alignment movements between shaft and housing have to be accommodated, or where oscillating or recurrent tilting or slewing movements must be possible at relatively slow sliding speeds, often accompanied with heavy loads.
Request a Quote
Product Description

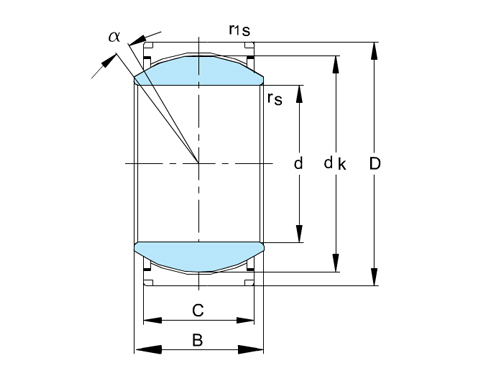

GEH...XT 2RS.jpg


Bearing No.Boundary dimensions(mm)Mass
dDBCdkrsr1sα°Kg
minmin≈≈
GEH100XT-2RS10015071671351124.51
GEH110XT-2RS11016078741451125.35
GEH120XT-2RS12018085801601127.96
GEH140XT-2RS1402101009518511213
GEH160XT-2RS16023011510921011216.6
GEH180XT-2RS1802601281222401.11.1224.4
GEH200XT-2RS2002901401342601.11.1233.5
GEH220XT-2RS2203201551482901.11.1245.8
GEH240XT-2RS2403401701623101.11.1253.7
GEH260XT-2RS2603701851753401.11.1269.5
GEH280XT-2RS2804002001903701.11.1289.5
GEH300XT-2RS3004302122003901.11.12110
GEH320XT-2RS3204602302184141.132135
GEH340XT-2RS3404802432304341.132150
GEH360XT-2RS3605202582434741.142200
GEH380XT-2RS3805402722584941.542220
GEH400XT-2RS4005802802655141.542275
GEH420XT-2RS4206003002805341.542300
