Home / Products / Spherical Plain Bearing & Rod End
GEH...XT Series
Radial spherical plain bearings have an inner ring with a sphered convex outside diameter and an outer ring with a correspondingly sphered but concave inside surface. Their design makes them particularly suitable for bearing arrangements where alignment movements between shaft and housing have to be accommodated, or where oscillating or recurrent tilting or slewing movements must be possible at relatively slow sliding speeds, often accompanied with heavy loads.
Request a Quote
Product Description

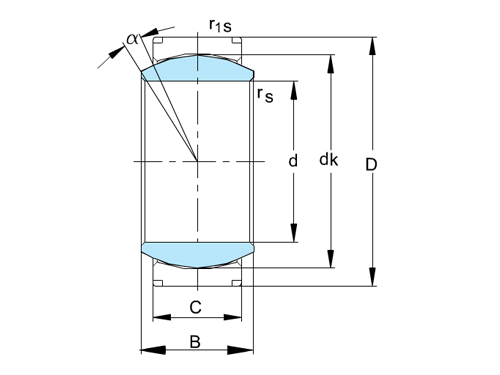

Bearing No.Boundary dimensions(mm)Mass
dDBCdkrsr1sα°Kg
minmin≈≈
GEH100XT10015071671351124.51
GEH110XT11016078741451125.35
GEH120XT12018085801601127.96
GEH140XT1402101009518511213
GEH160XT16023011510921011216.6
GEH180XT1802601281222401.11.1224.4
GEH200XT2002901401342601.11.1233.5
GEH220XT2203201551482901.11.1245.8
GEH240XT2403401701623101.11.1253.7
GEH260XT2603701851753401.11.1269.5
GEH280XT2804002001903701.11.1289.5
GEH300XT3004302122003901.11.12110
GEH320XT3204602302184141.132135
GEH340XT3404802432304341.132150
GEH360XT3605202582434741.142200
GEH380XT3805402722584941.542220
GEH400XT4005802802655141.542275
GEH420XT4206003002805341.542300
