Home / Products / Spherical Plain Bearing & Rod End

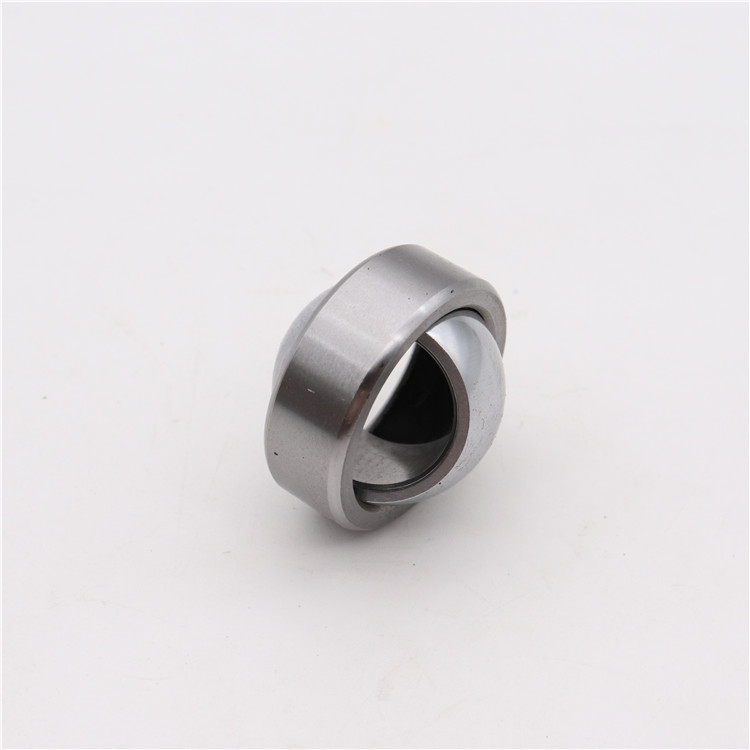

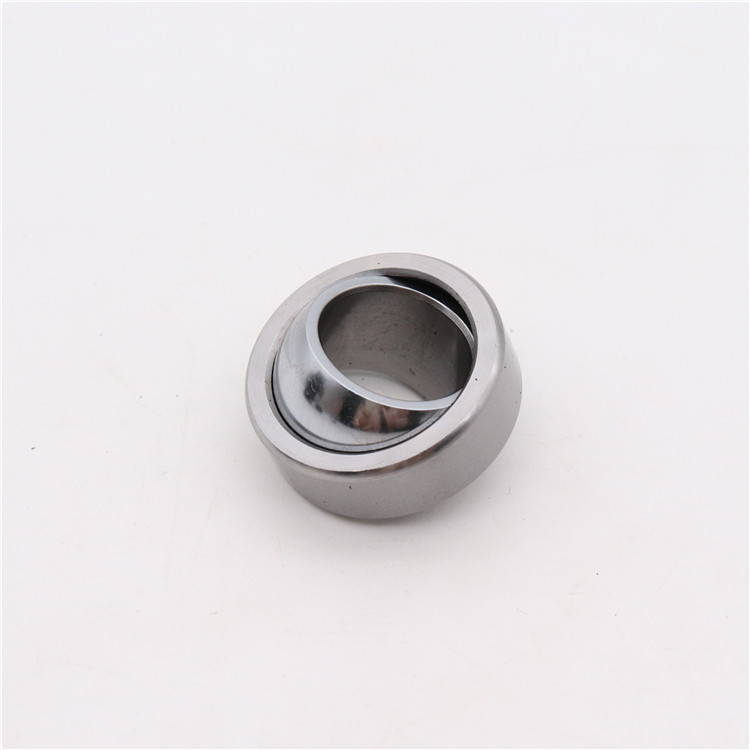

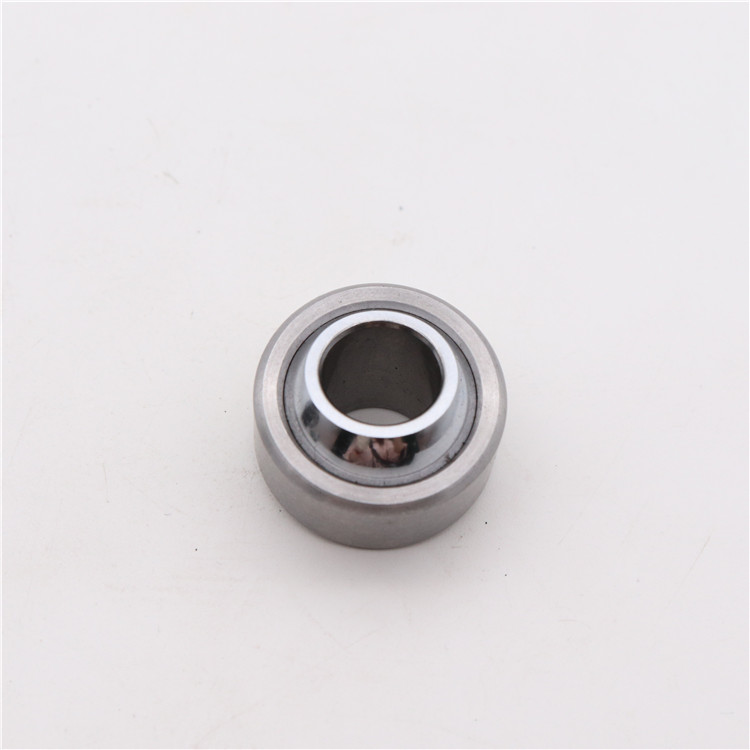

GEFZ...S Series
Radial spherical plain bearings have an inner ring with a sphered convex outside diameter and an outer ring with a correspondingly sphered but concave inside surface. Their design makes them particularly suitable for bearing arrangements where alignment movements between shaft and housing have to be accommodated, or where oscillating or recurrent tilting or slewing movements must be possible at relatively slow sliding speeds, often accompanied with heavy loads.
Request a Quote
Product Description

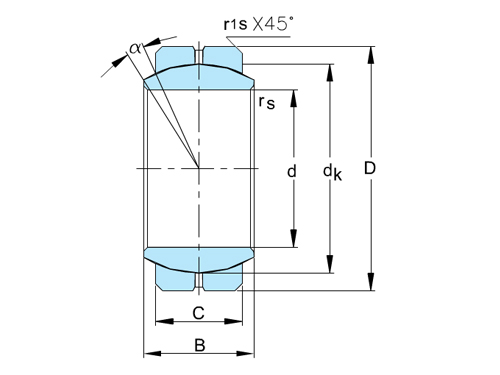

Bearing No.Boundary dimensions(mm)Mass
dDBCdkrsr1sα°Kg
minmin≈≈
GEFZ4S4.8314.297.145.5410.310.30.38110.006
GEFZ6S6.3516.678.716.3512.70.30.5613.50.01
GEFZ7S7.9419.059.537.1414.270.30.81120.014
GEFZ9S9.5320.6410.317.9216.660.30.81100.017
GEFZ11S11.1123.0211.18.7117.450.30.8180.021
GEFZ12S12.725.412.79.9120.650.30.819.50.029
GEFZ14S14.2927.7814.2711.123.010.30.819.50.039
GEFZ15S15.8830.1615.8812.725.430.819.50.05
GEFZ19S19.0536.5119.0515.0630.1531.1290.093
GEFZ22S22.2339.6922.2317.8633.320.61.129.50.119
GEFZ25S25.444.4525.420.2438.10.61.12100.175
