UCT Series

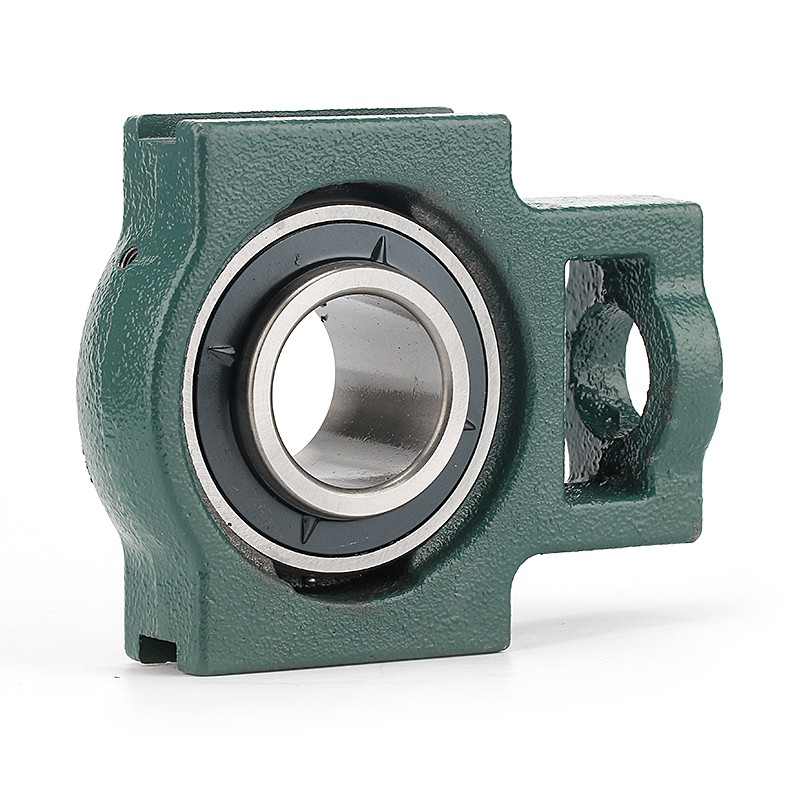

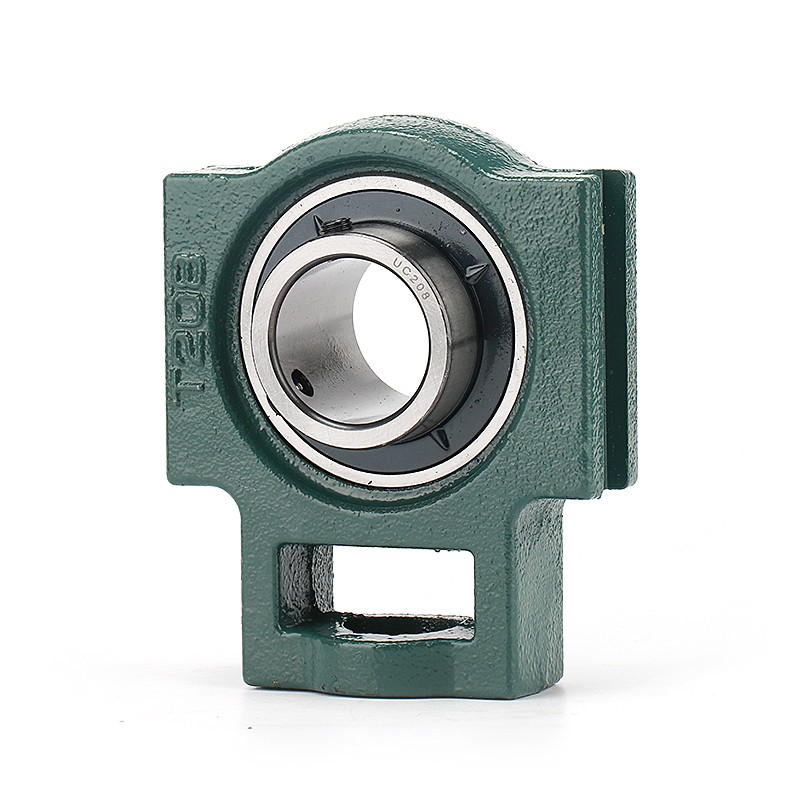

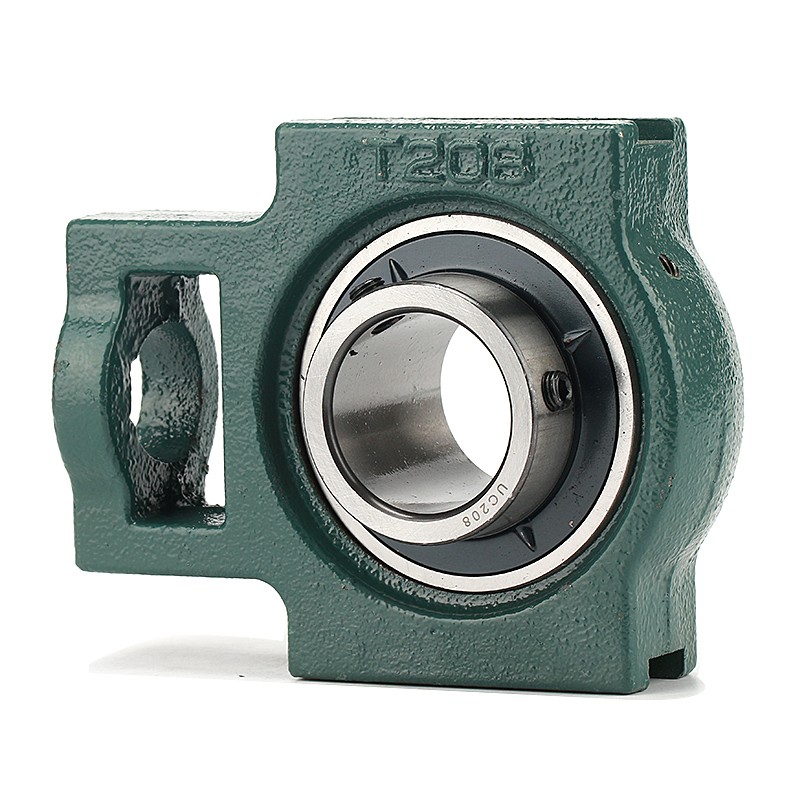

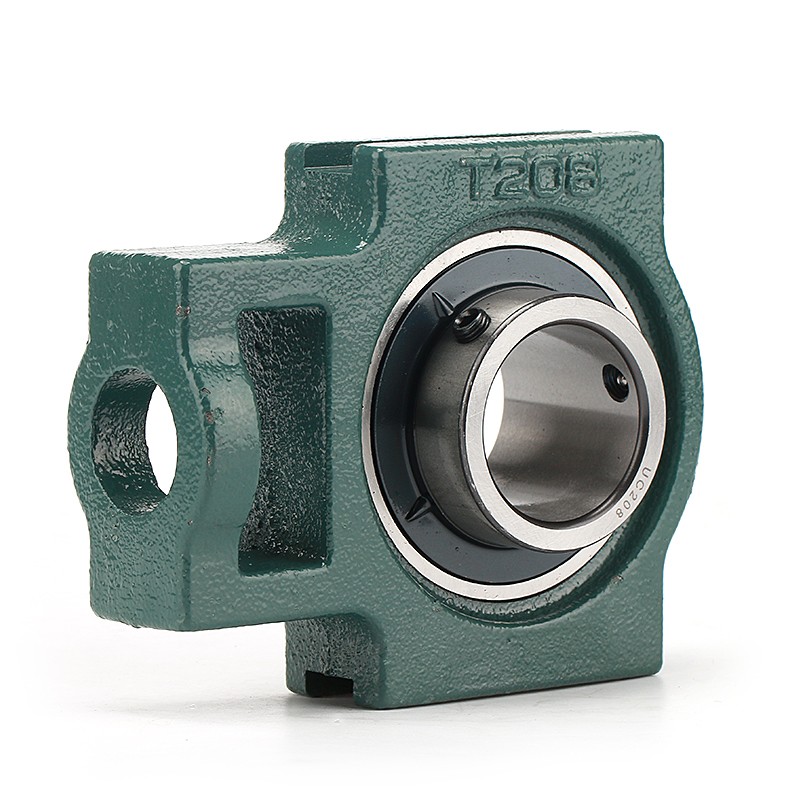

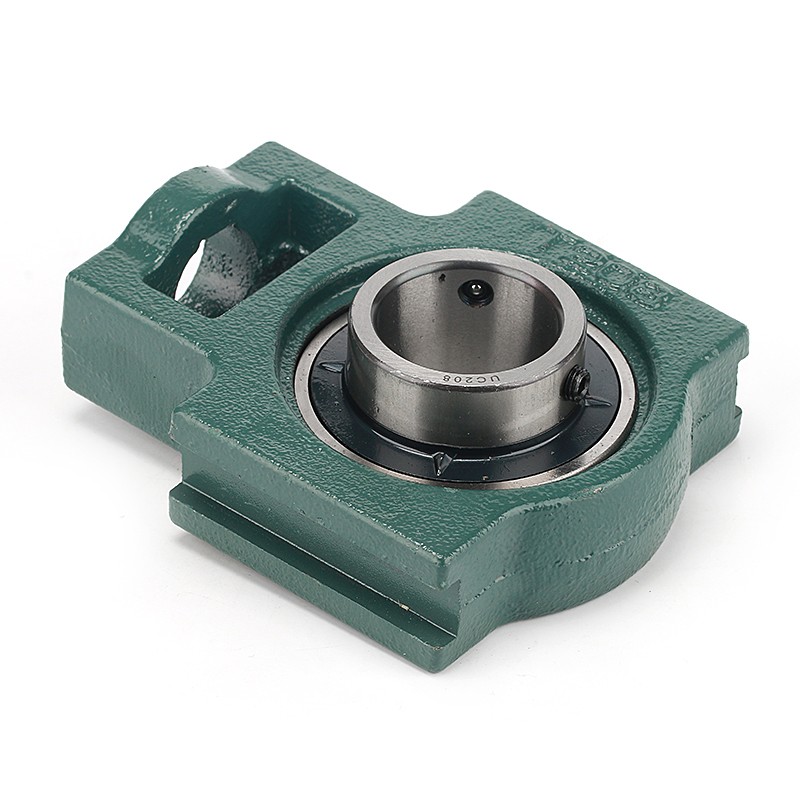

Take-up ball bearing units, consisting of an insert bearing based on a sealed deep groove ball bearing mounted in a grey cast iron housing. Typically mounted in take-up frames, the unit has an inner ring extended on both sides and is locked by tightening two set screws on the inner ring, which makes it easy to mount. Units with designation suffix /H feature a 120° angle of separation between the set screws that contributes to a higher stability and a better load balance.

Request a Quote

Product Description

Features

· Designed for an alternating rotation;

· Quick and easy to mount onto the shaft;

· Accommodate static initial misalignment;

· Long service life;

· Reduced noise and vibration levels.

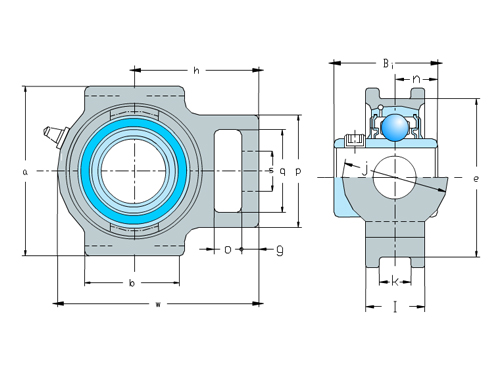

UCT jiantu.jpg

Unit No.	Bearing No.	Housing No.	Shaft Dia		Boundary dimensions(mm)																Mass(Kg)
Unit No.	Bearing No.	Housing No.	in.	mm	o	g	p	q	s	b	k	e	a	w	l	j	r	h	Bi	n	≈
UCT201-8	UC201-8	T204	1/2		16	10	51	32	19	51	12	76.2	89	94	21	32	33	61	31	12.7	0.77
UCT202-10	UC202-10	T204	5/8		16	10	51	32	19	51	12	76.2	89	94	21	32	33	61	31	12.7	0.77
UCT204	UC204	T204		20	16	10	51	32	19	51	12	76.2	89	94	21	32	33	61	31	12.7	0.77
UCT204-12	UC204-12	T204	3/4		16	10	51	32	19	51	12	76.2	89	94	21	32	33	61	31	12.7	0.77
UCT205	UC205	T205		25	16	10	51	32	19	51	12	76.2	89	97	24	32	35	62	34	14.3	0.86
UCT205-14	UC205-14	T205	7/8		16	10	51	32	19	51	12	76.2	89	97	24	32	35	62	34	14.3	0.86
UCT205-15	UC205-15	T205	15/16		16	10	51	32	19	51	12	76.2	89	97	24	32	35	62	34	14.3	0.86
UCT205-16	UC205-16	T205	1		16	10	51	32	19	51	12	76.2	89	97	24	32	35	62	34	14.3	0.86
UCT206	UC206	T206		30	16	10	56	37	22	57	12	89	102	113	28	37	43	70	38.1	15.9	1.32
UCT206-17	UC206-17	T206	1-1/16		16	10	56	37	22	57	12	89	102	113	28	37	43	70	38.1	15.9	1.32
UCT206-18	UC206-18	T206	1-1/8		16	10	56	37	22	57	12	89	102	113	28	37	43	70	38.1	15.9	1.32
UCT206-19	UC206-19	T206	1-3/16		16	10	56	37	22	57	12	89	102	113	28	37	43	70	38.1	15.9	1.32
UCT206-20	UC206-20	T206	1-1/4		16	10	56	37	22	57	12	89	102	113	28	37	43	70	38.1	15.9	1.32
UCT207	UC207	T207		35	16	13	64	37	22	64	12	89	102	129	30	37	51	78	42.9	17.5	1.59
UCT207-20	UC207-20	T207	1-1/4		16	13	64	37	22	64	12	89	102	129	30	37	51	78	42.9	17.5	1.59
UCT207-21	UC207-21	T207	1-5/16		16	13	64	37	22	64	12	89	102	129	30	37	51	78	42.9	17.5	1.59
UCT207-22	UC207-22	T207	1-3/8		16	13	64	37	22	64	12	89	102	129	30	37	51	78	42.9	17.5	1.59
UCT207-23	UC207-23	T207	1-7/16		16	13	64	37	22	64	12	89	102	129	30	37	51	78	42.9	17.5	1.59
UCT208	UC208	T208		40	19	16	83	49	29	83	16	102	114	144	33	49	56	88	49.2	19	2.3
UCT208-24	UC208-24	T208	1-1/2		19	16	83	49	29	83	16	102	114	144	33	49	56	88	49.2	19	2.3
UCT208-25	UC208-25	T208	1-9/16		19	16	83	49	29	83	16	102	114	144	33	49	56	88	49.2	19	2.3
UCT209	UC209	T209		45	19	16	83	49	29	83	16	102	117	145	35	49	57	88	49.2	19	2.5
UCT209-26	UC209-26	T209	1-5/8		19	16	83	49	29	83	16	102	117	145	35	49	57	88	49.2	19	2.5
UCT209-27	UC209-27	T209	1-11/16		19	16	83	49	29	83	16	102	117	145	35	49	57	88	49.2	19	2.5
UCT209-28	UC209-28	T209	1-3/4		19	16	83	49	29	83	16	102	117	145	35	49	57	88	49.2	19	2.5
UCT210	UC210	T210		50	19	16	83	49	29	86	16	102	117	151	37	49	59	92	51.6	19	2.6
UCT210-30	UC210-30	T210	1-7/8		19	16	83	49	29	86	16	102	117	151	37	49	59	92	51.6	19	2.6
UCT210-31	UC210-31	T210	1-15/16		19	16	83	49	29	86	16	102	117	151	37	49	59	92	51.6	19	2.6
UCT210-32	UC210-32	T210	2		19	16	83	49	29	86	16	102	117	151	37	49	59	92	51.6	19	2.6
UCT211	UC211	T211		55	25	19	102	64	35	95	22	130	146	171	38	64	65	106	55.6	22.2	4.1
UCT211-32	UC211-32	T211	2		25	19	102	64	35	95	22	130	146	171	38	64	65	106	55.6	22.2	4.1
UCT211-34	UC211-34	T211	2-1/8		25	19	102	64	35	95	22	130	146	171	38	64	65	106	55.6	22.2	4.1
UCT211-35	UC211-35	T211	2-3/16		25	19	102	64	35	95	22	130	146	171	38	64	65	106	55.6	22.2	4.1
UCT212	UC212	T212		60	32	19	102	64	35	102	22	130	146	194	42	64	75	119	65.1	25.4	4.8
UCT212-36	UC212-36	T212	2-1/4		32	19	102	64	35	102	22	130	146	194	42	64	75	119	65.1	25.4	4.8
UCT212-38	UC212-38	T212	2-3/8		32	19	102	64	35	102	22	130	146	194	42	64	75	119	65.1	25.4	4.8
UCT212-39	UC212-39	T212	2-7/16		32	19	102	64	35	102	22	130	146	194	42	64	75	119	65.1	25.4	4.8
UCT213	UC213	T213		65	32	21	111	70	41	121	26	151	167	224	44	70	87	137	65.1	25.4	6.8
UCT213-40	UC213-40	T213	2-1/2		32	21	111	70	41	121	26	151	167	224	44	70	87	137	65.1	25.4	6.8
UCT214	UC214	T214		70	32	21	111	70	41	121	26	151	167	224	46	70	87	137	74.6	30.2	7
UCT214-43	UC214-43	T214	2-11/16		32	21	111	70	41	121	26	151	167	224	46	70	87	137	74.6	30.2	7
UCT214-44	UC214-44	T214	2-3/4		32	21	111	70	41	121	26	151	167	224	46	70	87	137	74.6	30.2	7
UCT215	UC215	T215		75	32	21	111	70	41	121	26	151	167	232	46	70	92	140	77.8	33.3	7.8
UCT215-47	UC215-47	T215	2-15/16		32	21	111	70	41	121	26	151	167	232	46	70	92	140	77.8	33.3	7.8
UCT215-48	UC215-48	T215	3		32	21	111	70	41	121	26	151	167	232	46	70	92	140	77.8	33.3	7.8
