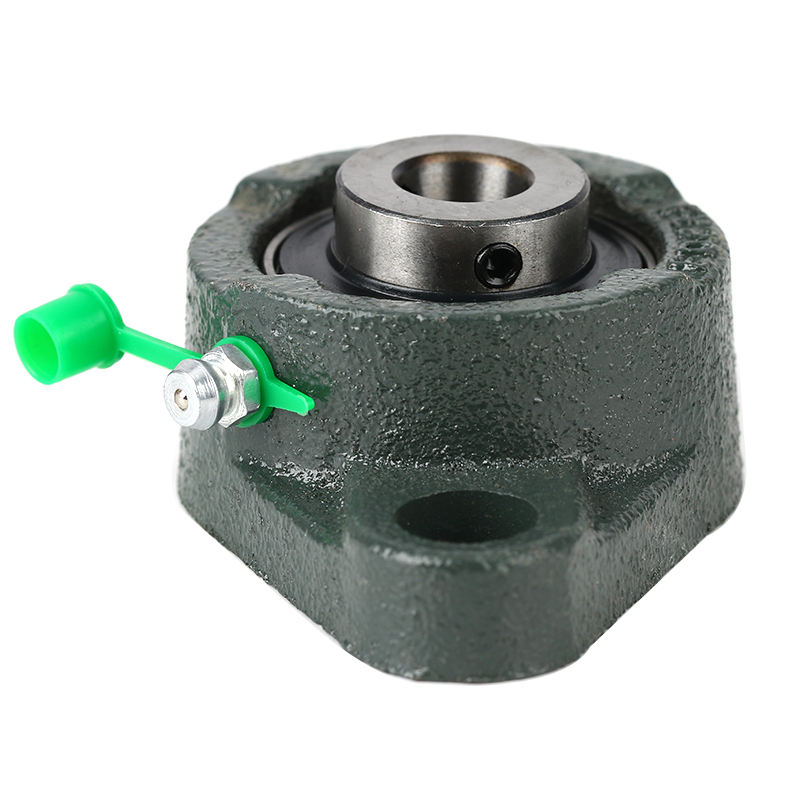

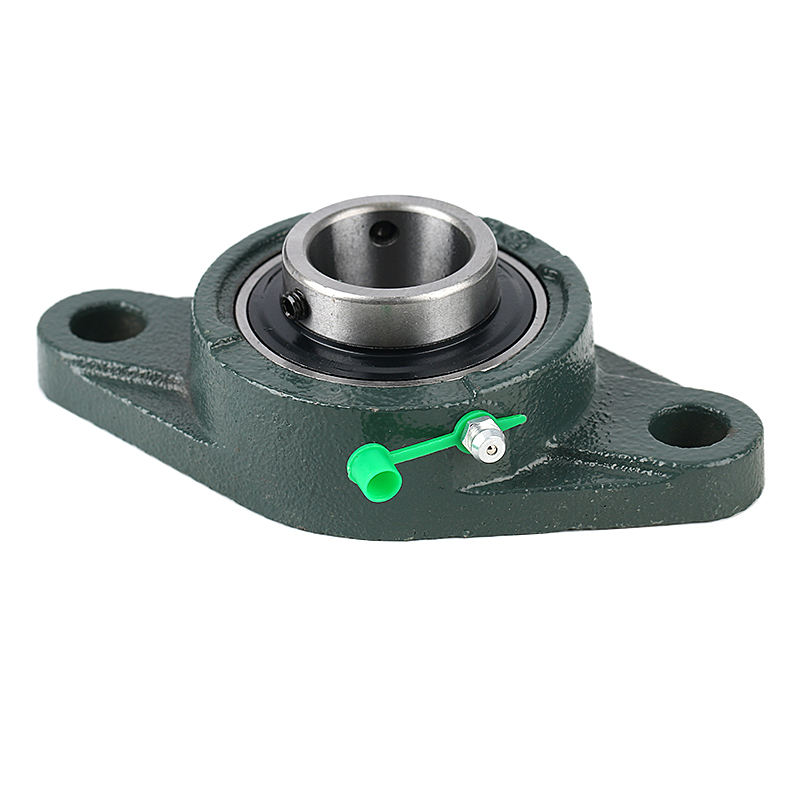

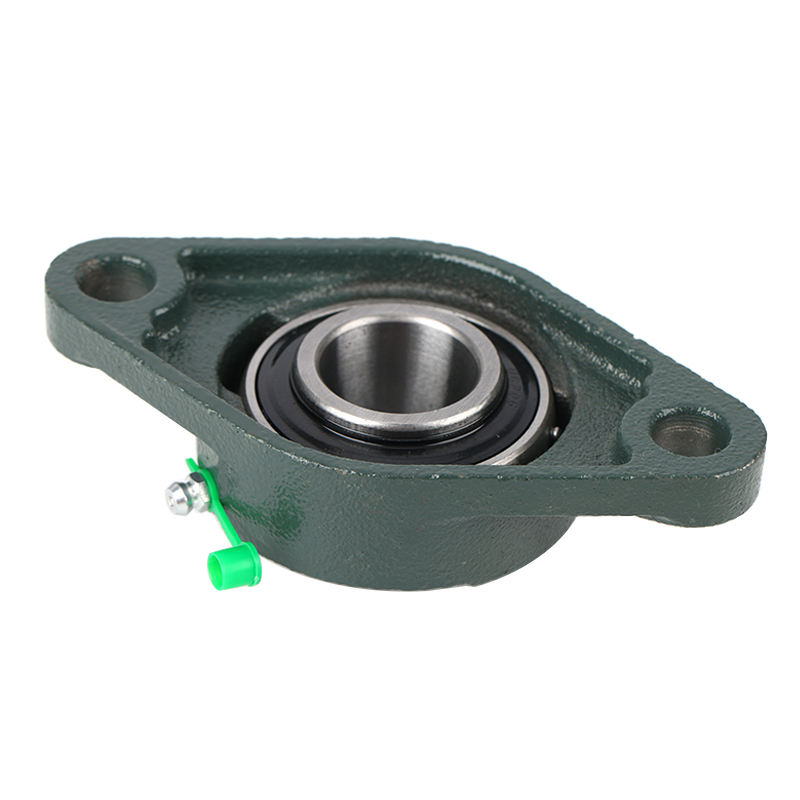

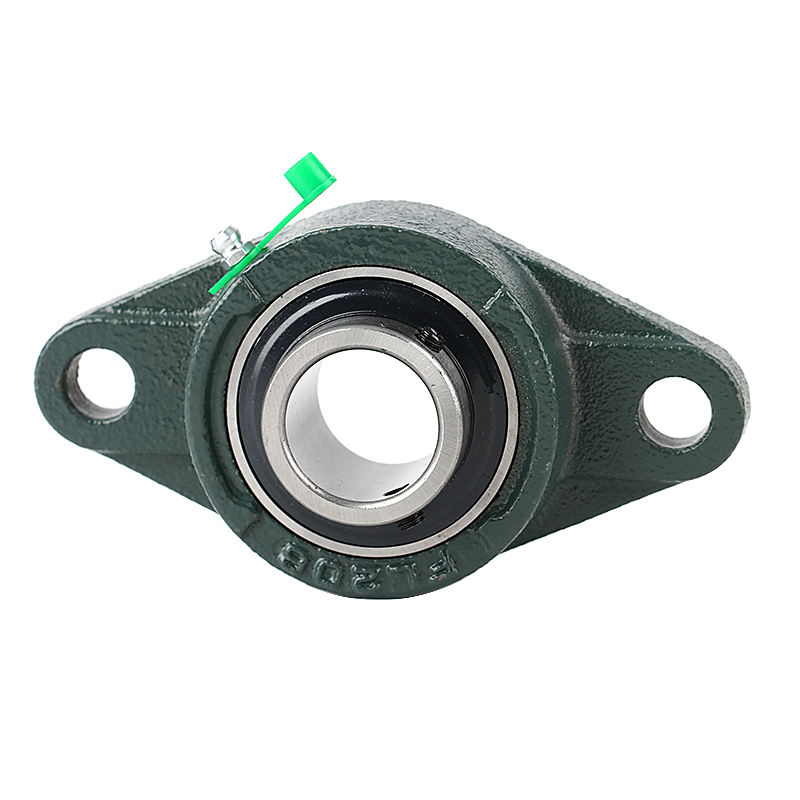

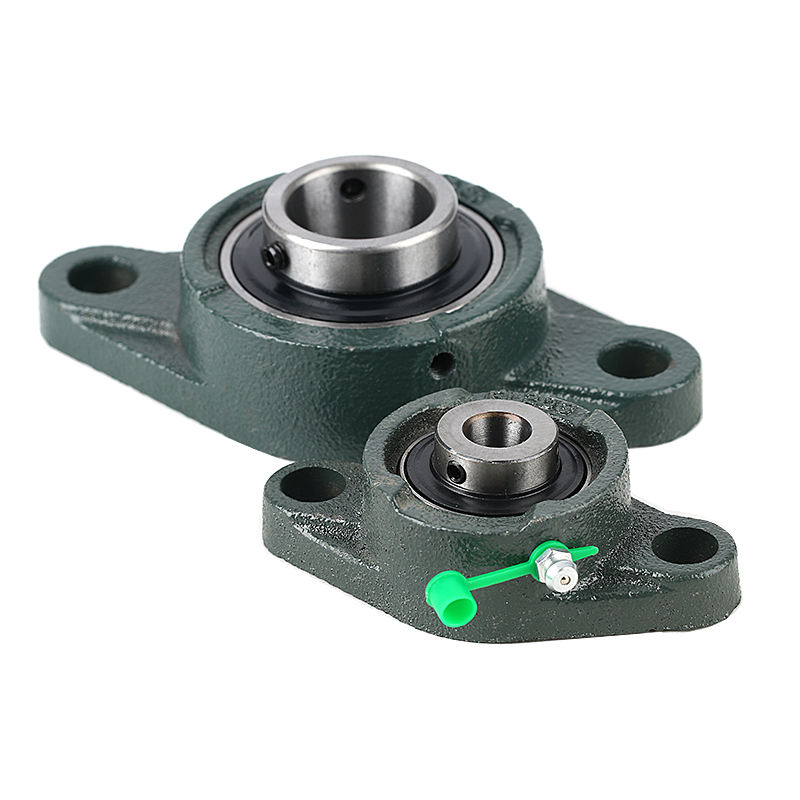

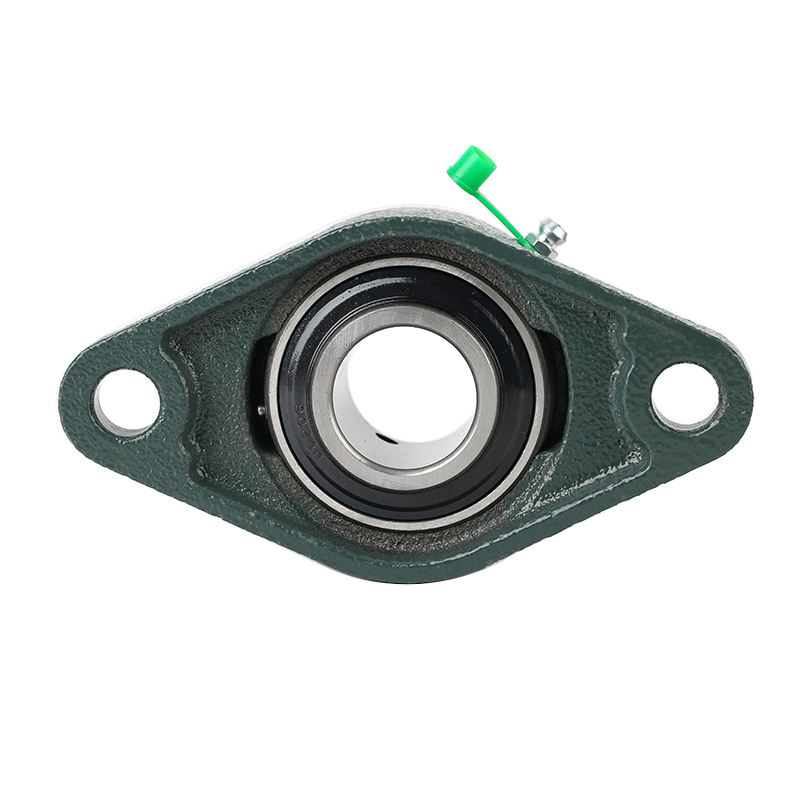

UCFL Series

These oval flanged ball bearing units are compliant with JIS standards. They consist of an insert bearing, with an extended inner ring and set screw locking, and are suitable for applications where the direction of rotation is constant or alternating. The bearing is mounted in a cast iron housing, which can be bolted to a machine wall or frame. Ball bearing units can accommodate moderate initial misalignment, but normally do not permit axial displacement.

Request a Quote

Product Description

Features

· Resist high levels of contamination;

· Designed for high temperatures and speeds;

· Accommodate relatively heavy loads;

· Cost-effective.

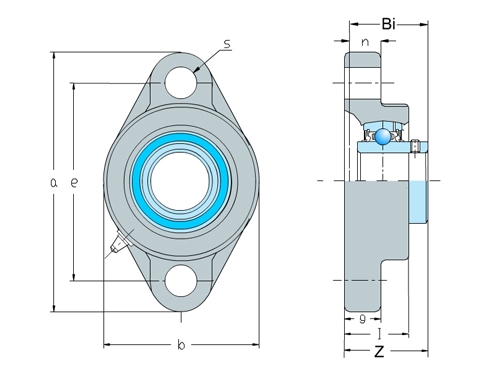

UCFL jiantu.jpg

Unit No.	Bearing No.	Housing No.	Shaft Dia		Boundary Dimensions(mm)										Bolt Size	Mass(Kg)
Unit No.	Bearing No.	Housing No.	in.	mm	a	e	i	g	l	s	b	z	Bi	n	Bolt Size	≈
UCFL201-8	UC201-8	FL204	1/2		113	90	15	11	25.5	12	60	33.3	31	12.7	3/8	0.5
UCFL202-10	UC202-10	FL204	5/8		113	90	15	11	25.5	12	60	33.3	31	12.7	3/8	0.5
UCFL204	UC204	FL204		20	113	90	15	11	25.5	12	60	33.3	31	12.7	M10	0.5
UCFL204-12	UC204-12	FL204	3/4		113	90	15	11	25.5	12	60	33.3	31	12.7	3/8	0.5
UCFL205	UC205	FL205		25	130	99	16	13	27	16	68	35.7	34	14.3	M14	0.6
UCFL205-14	UC205-14	FL205	7/8		130	99	16	13	27	16	68	35.7	34	14.3	1/2	0.6
UCFL205-15	UC205-15	FL205	15/16		130	99	16	13	27	16	68	35.7	34	14.3	1/2	0.6
UCFL205-16	UC205-16	FL205	1		130	99	16	13	27	16	68	35.7	34	14.3	1/2	0.6
UCFL206	UC206	FL206		30	148	117	18	13	31	16	80	40.2	38.1	15.9	M14	0.9
UCFL206-17	UC206-17	FL206	1-1/16		148	117	18	13	31	16	80	40.2	38.1	15.9	1/2	0.9
UCFL206-18	UC206-18	FL206	1-1/8		148	117	18	13	31	16	80	40.2	38.1	15.9	1/2	0.9
UCFL206-19	UC206-19	FL206	1-3/16		148	117	18	13	31	16	80	40.2	38.1	15.9	1/2	0.9
UCFL206-20	UC206-20	FL206	1-1/4		148	117	18	13	31	16	80	40.2	38.1	15.9	1/2	0.9
UCFL207	UC207	FL207		35	161	130	19	15	34	16	90	44.4	42.9	17.5	M14	1.2
UCFL207-20	UC207-20	FL207	1-1/4		161	130	19	15	34	16	90	44.4	42.9	17.5	1/2	1.2
UCFL207-21	UC207-21	FL207	1-5/16		161	130	19	15	34	16	90	44.4	42.9	17.5	1/2	1.2
UCFL207-22	UC207-22	FL207	1-3/8		161	130	19	15	34	16	90	44.4	42.9	17.5	1/2	1.2
UCFL207-23	UC207-23	FL207	1-7/16		161	130	19	15	34	16	90	44.4	42.9	17.5	1/2	1.2
UCFL208	UC208	FL208		40	175	144	21	15	36	16	100	51.2	49.2	19	M14	1.6
UCFL208-24	UC208-24	FL208	1-1/2		175	144	21	15	36	16	100	51.2	49.2	19	1/2	1.6
UCFL208-25	UC208-25	FL208	1-9/16		175	144	21	15	36	16	100	51.2	49.2	19	1/2	1.6
UCFL209	UC209	FL209		45	188	148	22	16	38	19	108	52.2	49.2	19	M16	1.9
UCFL209-26	UC209-26	FL209	1-5/8		188	148	22	16	38	19	108	52.2	49.2	19	5/8	1.9
UCFL209-27	UC209-27	FL209	1-11/16		188	148	22	16	38	19	108	52.2	49.2	19	5/8	1.9
UCFL209-28	UC209-28	FL209	1-3/4		188	148	22	16	38	19	108	52.2	49.2	19	5/8	1.9
UCFL210	UC210	FL210		50	197	157	22	16	40	19	116	54.6	51.6	19	M16	2.2
UCFL210-30	UC210-30	FL210	1-7/8		197	157	22	16	40	19	116	54.6	51.6	19	5/8	2.2
UCFL210-31	UC210-31	FL210	1-15/16		197	157	22	16	40	19	116	54.6	51.6	19	5/8	2.2
UCFL210-32	UC210-32	FL210	2		197	157	22	16	40	19	116	54.6	51.6	19	5/8	2.2
UCFL211	UC211	FL211		55	224	184	25	18	43	19	130	58.4	55.6	22.2	M16	3.1
UCFL211-32	UC211-32	FL211	2		224	184	25	18	43	19	130	58.4	55.6	22.2	5/8	3.1
UCFL211-34	UC211-34	FL211	2-1/8		224	184	25	18	43	19	130	58.4	55.6	22.2	5/8	3.1
UCFL211-35	UC211-35	FL211	2-3/16		224	184	25	18	43	19	130	58.4	55.6	22.2	5/8	3.1
UCFL212	UC212	FL212		60	250	202	29	18	48	23	140	68.7	65.1	25.4	M20	4
UCFL212-36	UC212-36	FL212	2-1/4		250	202	29	18	48	23	140	68.7	65.1	25.4	3/4	4
UCFL212-38	UC212-38	FL212	2-3/8		250	202	29	18	48	23	140	68.7	65.1	25.4	3/4	4
UCFL212-39	UC212-39	FL212	2-7/16		250	202	29	18	48	23	140	68.7	65.1	25.4	3/4	4
UCFL213	UC213	FL213		65	258	210	30	20	50	23	155	69.7	65.1	25.4	M20	5
UCFL213-40	UC213-40	FL213	2-1/2		258	210	30	20	50	23	155	69.7	65.1	25.4	3/4	5
UCFL214	UC214	FL214		70	265	216	31	20	54	23	160	75.4	74.6	30.2	M20	5.6
UCFL214-43	UC214-43	FL214	2-11/16		265	216	31	20	54	23	160	75.4	74.6	30.2	3/4	5.6
UCFL214-44	UC214-44	FL214	2-3/4		265	216	31	20	54	23	160	75.4	74.6	30.2	3/4	5.6
UCFL215	UC215	FL215		75	275	225	34	20	56	23	165	78.5	77.8	33.3	M20	6.2
UCFL215-47	UC215-47	FL215	2-15/16		275	225	34	20	56	23	165	78.5	77.8	33.3	3/4	6.2
UCFL215-48	UC215-48	FL215	3		275	225	34	20	56	23	165	78.5	77.8	33.3	3/4	6.2
