UCF Series

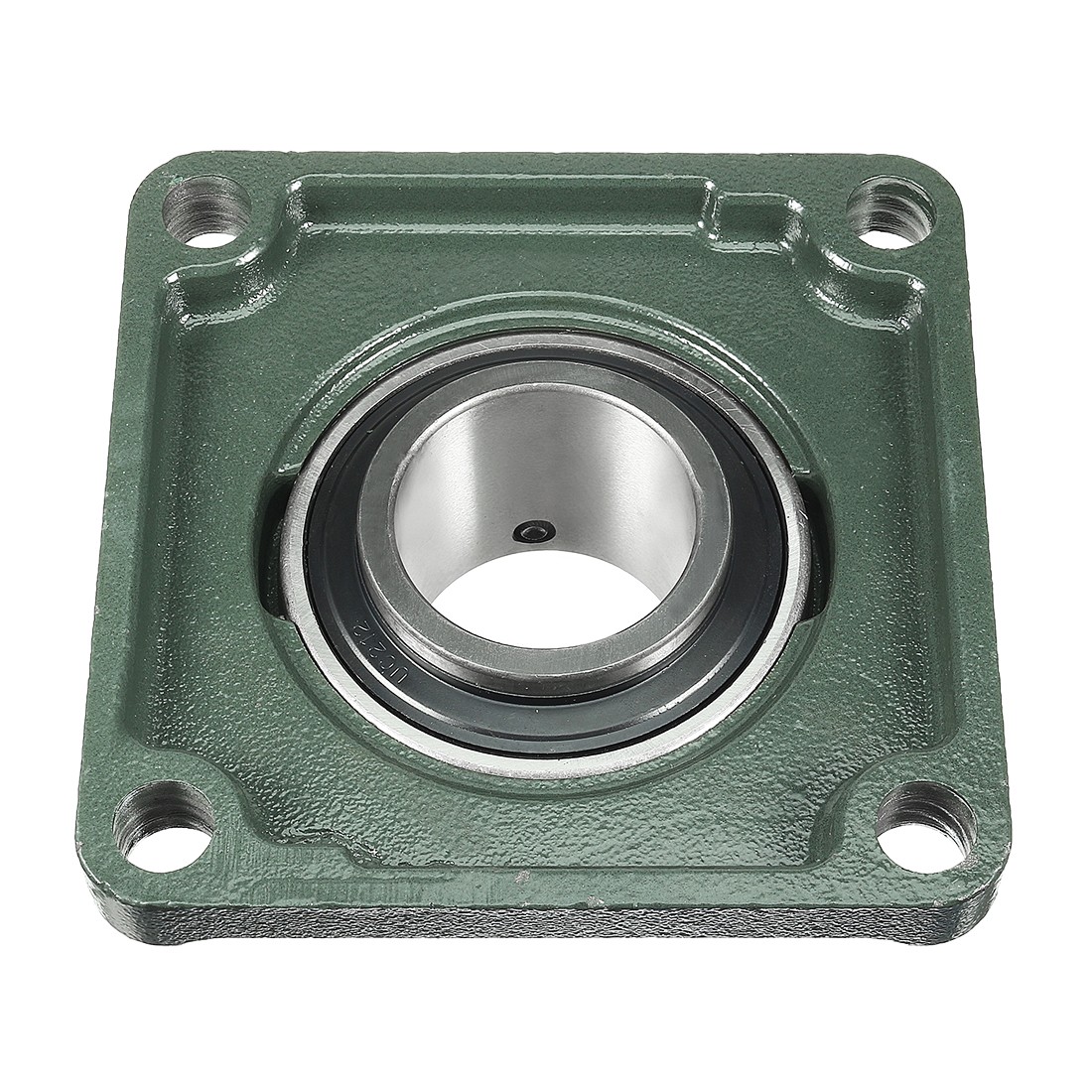

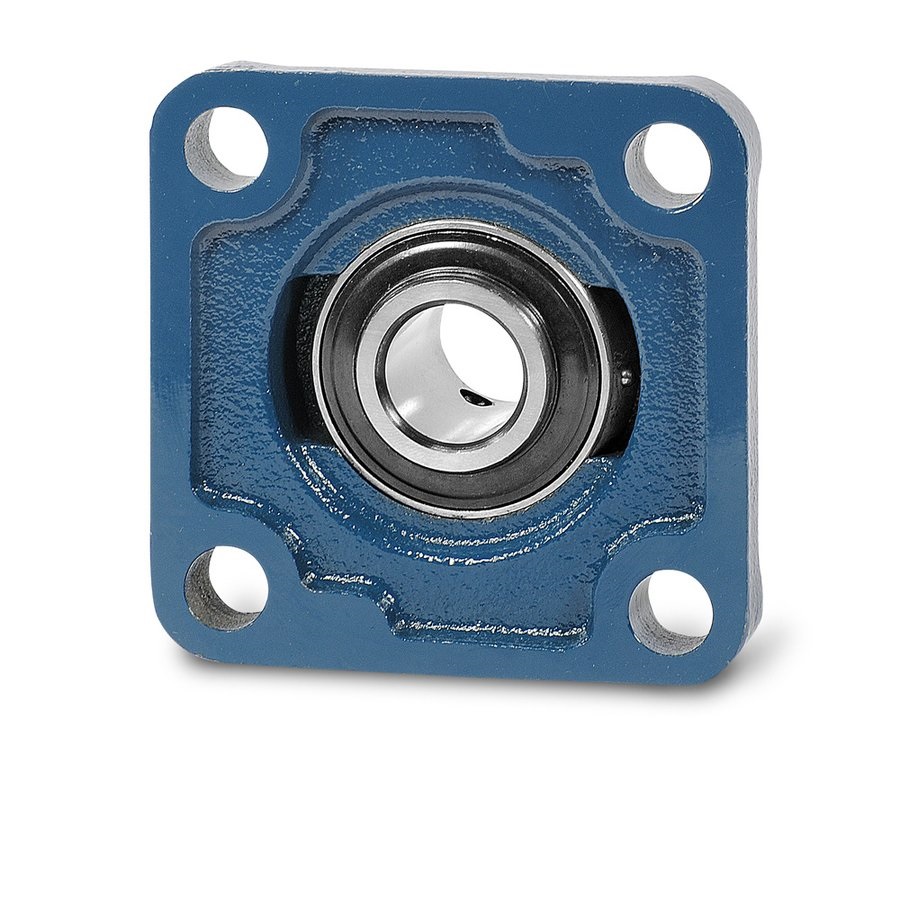

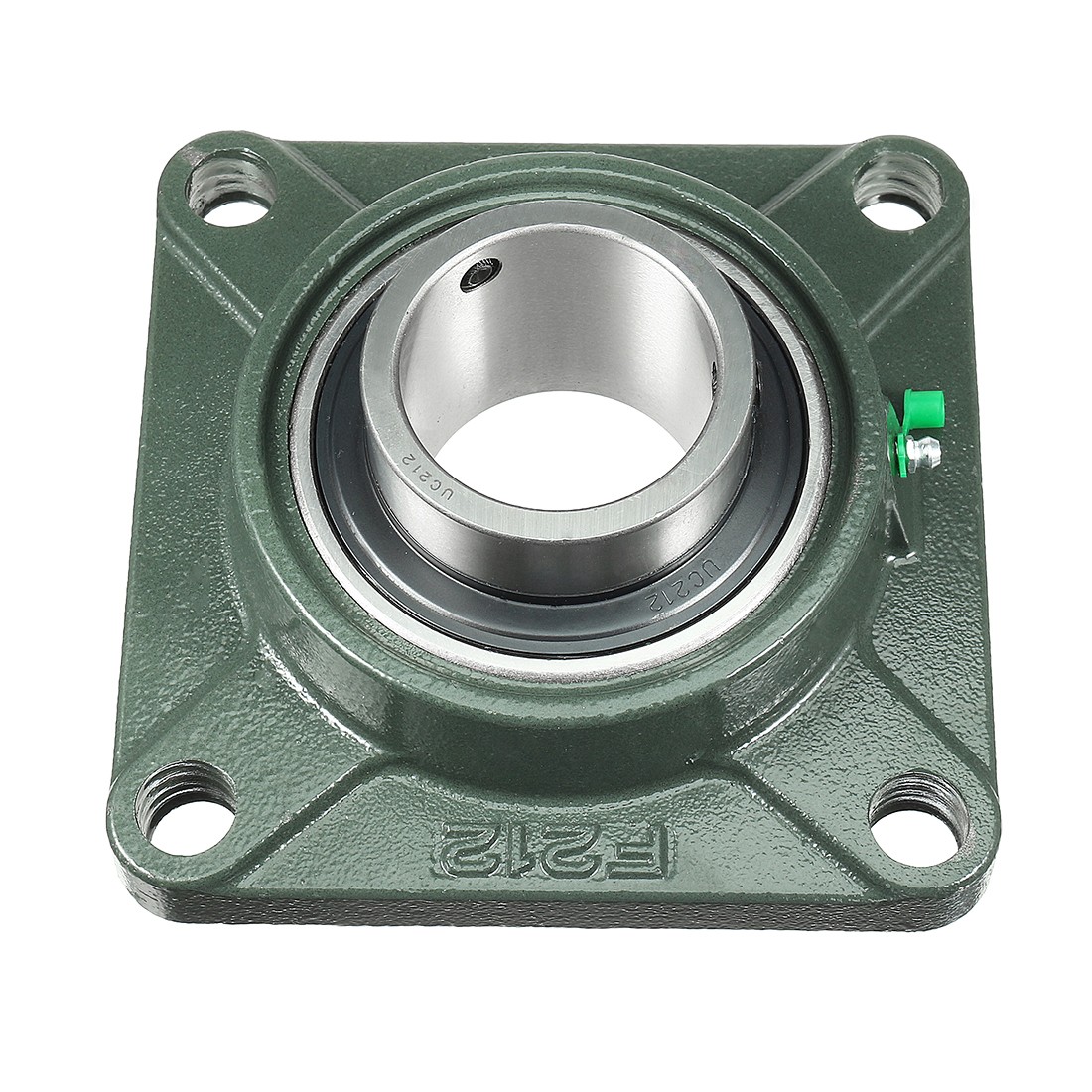

These square flanged ball bearing units are compliant with Japanese Industrial Standards (JIS). They consist of an insert bearing, with an extended inner ring and set screw locking, and are suitable for applications where the direction of rotation is constant or alternating. The bearing is mounted in a cast iron housing, which can be bolted to a machine wall or frame. Ball bearing units can accommodate moderate initial misalignment, but normally do not permit axial displacement.

Request a Quote

Product Description

Features

· Resist high levels of contamination;

· Designed for high temperatures and speeds;

· Accommodate relatively heavy loads;

· Cost-effective.

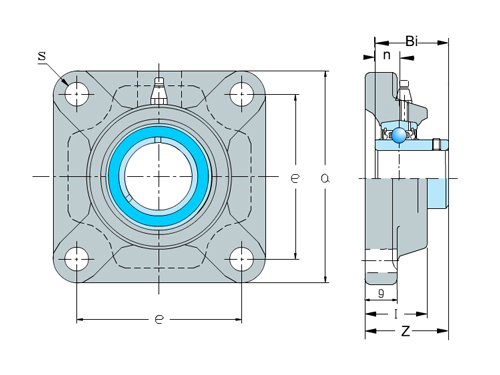

UCF gongchengtu.jpg

Unit No.	Bearing No.	Housing No.	Shaft Dia		Boundary Dimensions(mm)									Bolt Size	Mass(Kg)
Unit No.	Bearing No.	Housing No.	in.	mm	a	e	i	g	l	s	z	Bi	n	Bolt Size	≈
UCF201-8	UC201-8	F204	1/2		86	63.5	15	11	25.4	12	33.3	31	12.7	3/8	0.7
UCF202-10	UC202-10	F204	5/8		86	63.5	15	11	25.4	12	33.3	31	12.7	3/8	0.7
UCF204	UC204	F204		20	86	63.5	15	11	25.4	12	33.3	31	12.7	M10	0.7
UCF204-12	UC204-12	F204	3/4		86	63.5	15	11	25.4	12	33.3	31	12.7	3/8	0.7
UCF205	UC205	F205		25	95	70	16	13	27	12	35.7	34	14.3	M10	0.8
UCF205-14	UC205-14	F205	7/8		95	70	16	13	27	12	35.7	34	14.3	3/8	0.8
UCF205-15	UC205-15	F205	15/16		95	70	16	13	27	12	35.7	34	14.3	3/8	0.8
UCF205-16	UC205-16	F205	1		95	70	16	13	27	12	35.7	34	14.3	3/8	0.8
UCF206	UC206	F206		30	108	83	18	13	31	12	40.2	38.1	15.9	M10	1
UCF206-17	UC206-17	F206	1-1/16		108	83	18	13	31	12	40.2	38.1	15.9	3/8	1
UCF206-18	UC206-18	F206	1-1/8		108	83	18	13	31	12	40.2	38.1	15.9	3/8	1
UCF206-19	UC206-19	F206	1-3/16		108	83	18	13	31	12	40.2	38.1	15.9	3/8	1
UCF206-20	UC206-20	F206	1-1/4		108	83	18	13	31	12	40.2	38.1	15.9	3/8	1
UCF207	UC207	F207		35	117	92	19	15	34	14	44.4	42.9	17.5	M12	1.4
UCF207-20	UC207-20	F207	1-1/4		117	92	19	15	34	14	44.4	42.9	17.5	7/16	1.4
UCF207-21	UC207-21	F207	1-5/16		117	92	19	15	34	14	44.4	42.9	17.5	7/16	1.4
UCF207-22	UC207-22	F207	1-3/8		117	92	19	15	34	14	44.4	42.9	17.5	7/16	1.4
UCF207-23	UC207-23	F207	1-7/16		117	92	19	15	34	14	44.4	42.9	17.5	7/16	1.4
UCF208	UC208	F208		40	130	102	21	15	36	16	51.2	49.2	19	M14	1.8
UCF208-24	UC208-24	F208	1-1/2		130	102	21	15	36	16	51.2	49.2	19	1/2	1.8
UCF208-25	UC208-25	F208	1-9/16		130	102	21	15	36	16	51.2	49.2	19	1/2	1.8
UCF209	UC209	F209		45	137	105	22	16	38	16	52.2	49.2	19	M14	2.2
UCF209-26	UC209-26	F209	1-5/8		137	105	22	16	38	16	52.2	49.2	19	1/2	2.2
UCF209-27	UC209-27	F209	1-11/16		137	105	22	16	38	16	52.2	49.2	19	1/2	2.2
UCF209-28	UC209-28	F209	1-3/4		137	105	22	16	38	16	52.2	49.2	19	1/2	2.2
UCF210	UC210	F210		50	143	111	22	16	40	16	54.6	51.6	19	M14	2.4
UCF210-30	UC210-30	F210	1-7/8		143	111	22	16	40	16	54.6	51.6	19	1/2	2.4
UCF210-31	UC210-31	F210	1-15/16		143	111	22	16	40	16	54.6	51.6	19	1/2	2.4
UCF210-32	UC210-32	F210	2		143	111	22	16	40	16	54.6	51.6	19	1/2	2.4
UCF211	UC211	F211		55	162	130	25	18	43	19	58.4	55.6	22.2	M16	3.6
UCF211-32	UC211-32	F211	2		162	130	25	18	43	19	58.4	55.6	22.2	5/8	3.6
UCF211-34	UC211-34	F211	2-1/8		162	130	25	18	43	19	58.4	55.6	22.2	5/8	3.6
UCF211-35	UC211-35	F211	2-3/16		162	130	25	18	43	19	58.4	55.6	22.2	5/8	3.6
UCF212	UC212	F212		60	175	143	29	18	48	19	68.7	65.1	25.4	M16	4.4
UCF212-36	UC212-36	F212	2-1/4		175	143	29	18	48	19	68.7	65.1	25.4	5/8	4.4
UCF212-38	UC212-38	F212	2-3/8		175	143	29	18	48	19	68.7	65.1	25.4	5/8	4.4
UCF212-39	UC212-39	F212	2-7/16		175	143	29	18	48	19	68.7	65.1	25.4	5/8	4.4
UCF213	UC213	F213		65	187	149	30	22	50	19	69.7	65.1	25.4	M16	5.5
UCF213-40	UC213-40	F213	2-1/2		187	149	30	22	50	19	69.7	65.1	25.4	5/8	5.5
UCF214	UC214	F214		70	193	152	31	22	54	19	75.4	74.6	30.2	M16	6.1
UCF214-43	UC214-43	F214	2-11/16		193	152	31	22	54	19	75.4	74.6	30.2	5/8	6.1
UCF214-44	UC214-44	F214	2-3/4		193	152	31	22	54	19	75.4	74.6	30.2	5/8	6.1
UCF215	UC215	F215		75	200	159	34	22	56	19	78.5	77.8	33.3	M16	6.9
UCF215-47	UC215-47	F215	2-15/16		200	159	34	22	56	19	78.5	77.8	33.3	5/8	6.9
UCF215-48	UC215-48	F215	3		200	159	34	22	56	19	78.5	77.8	33.3	5/8	6.9
