KR...PP Series

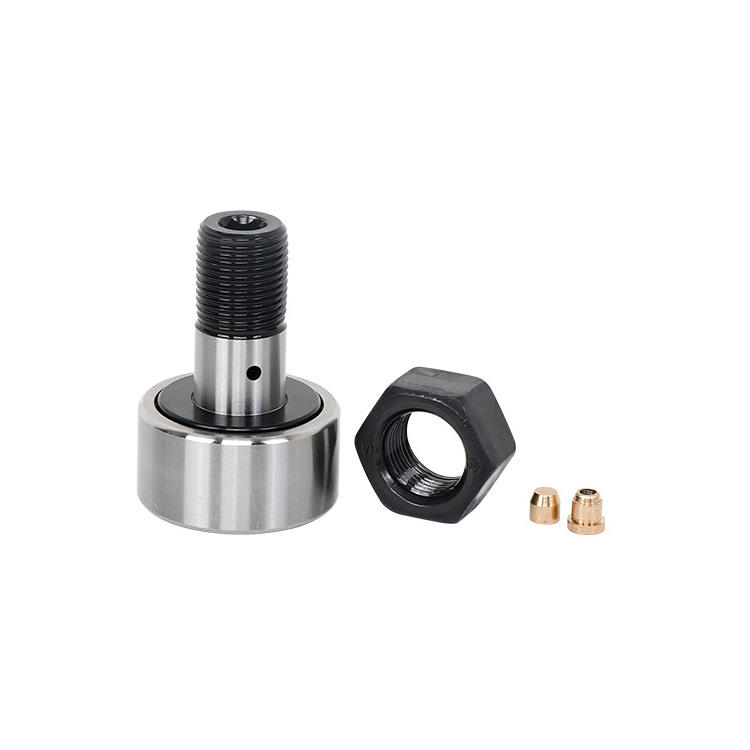

Stud type track rollers KR...PP, with axial guidance, plastic axial plain washers on both sides.
Request a Quote
Product Description

Features

Yoke and stud type roller bearing track rollers:

· are ready-to-fit needle or cylindrical roller bearings of single or double row design;

· are mounted on shafts or studs (yoke type track rollers) or supplied with a heavy-section roller stud with fixing thread and a mounting aid (stud type track rollers);

· have particularly thick-walled outer rings with a crowned outside surface;

· can support high radial loads;

· tolerate axial loads which are due to small misalignment defects, skewed running or temporary contact running impacts;

· are available with or without an inner ring (yoke type track rollers);

· are produced with or without axial guidance of the outer ring (stud type track rollers are always produced with axial guidance);

· are open or sealed on both sides;

· are not mounted in a housing bore, but are supported on a flat mating track;

· can be adjusted to the mating track in the design with the eccentric collar, thus permitting, for example, larger manufacturing tolerances in the adjacent construction.

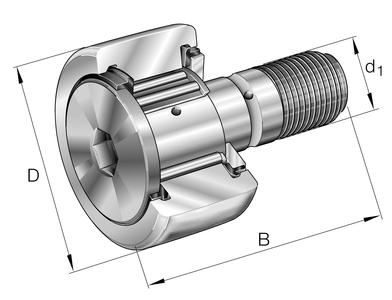

Bearing No.Dd1B
mmmmmm

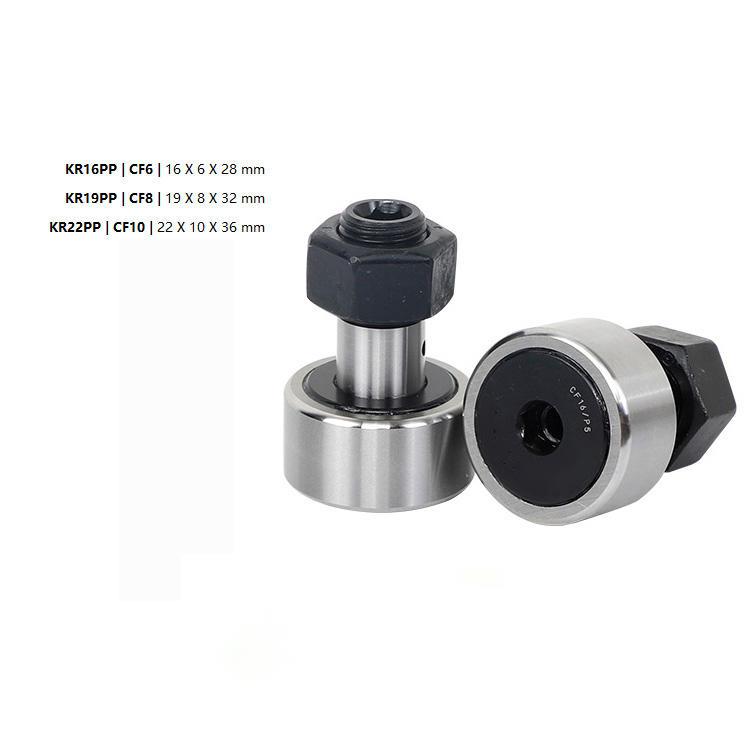

KR16-PP16628
KR19-PP19832
KR22-PP221036

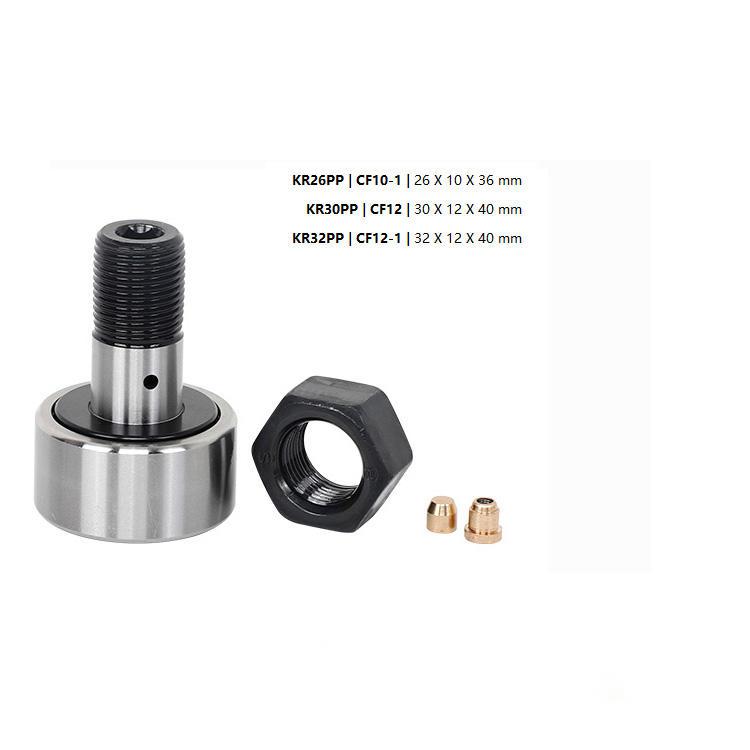

KR26-PP261036
KR30-PP301240
KR32-PP321240
KR35-PP351652
KR40-PP401858

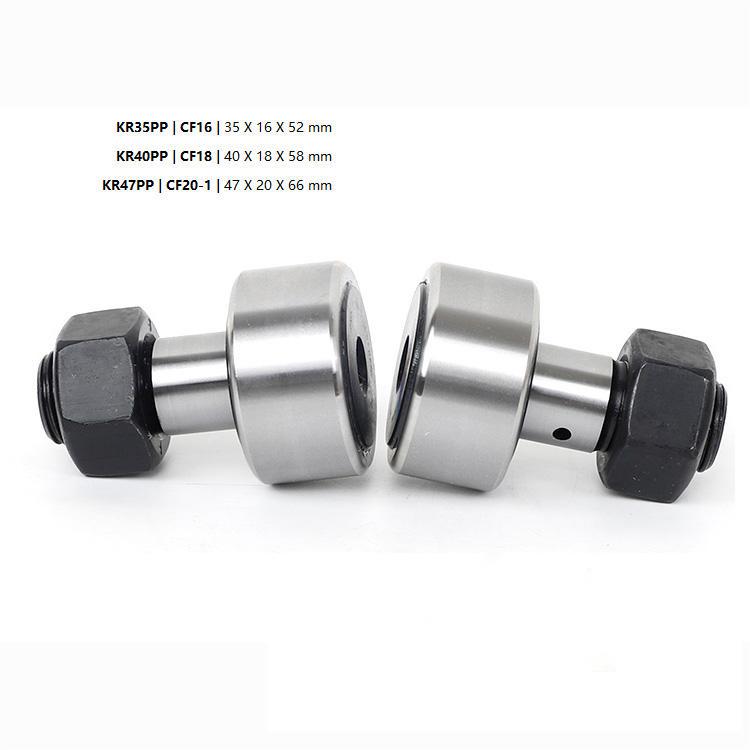

KR47-PP472066

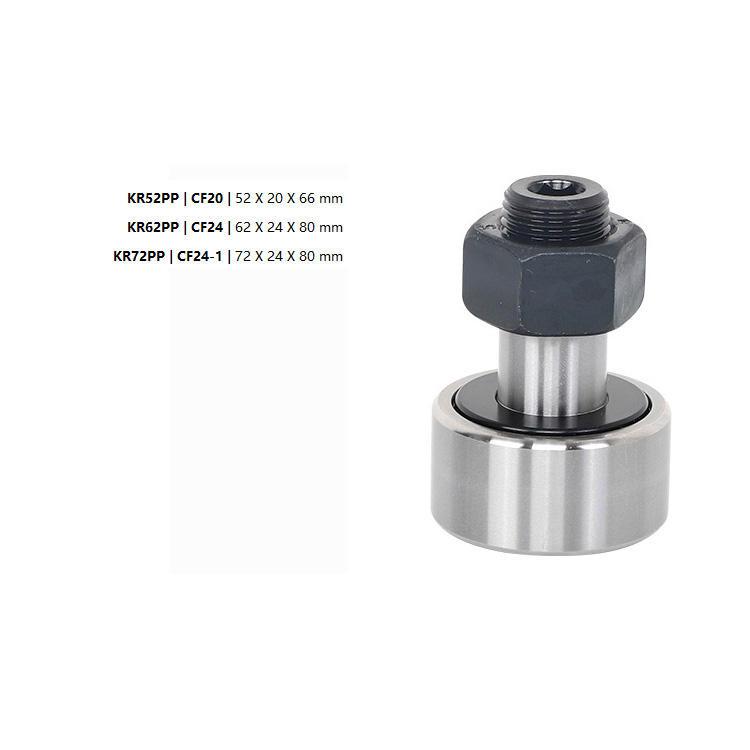

KR52-PP522066
KR62-PP622480
KR72-PP722480

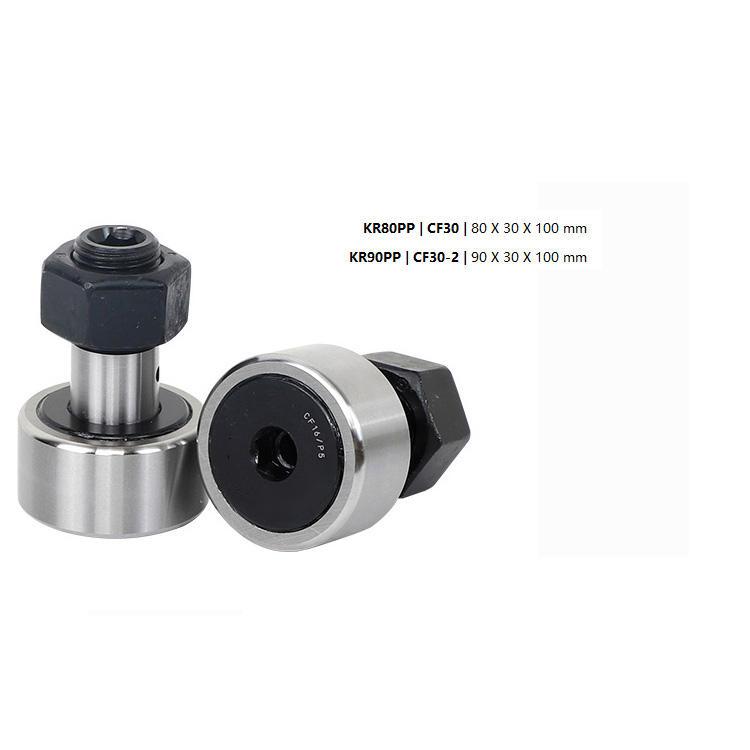

KR80-PP8030100
KR90-PP9030100
