Features
The bearings can support high to very high radial forces.
The bearings are used when the load carrying capacity or accuracy of drawn cup needle roller bearings with open ends is no longer sufficient and the high load capacity of cylindrical roller bearings is not yet required.
The bearings can only support radial loads and, as a result, are highly suitable for use as non-locating bearings (they permit axial displacement of the shaft relative to the housing in the bearing).
The bearings permit high speeds in spite of line contact
The bearings compensate misalignments between the shaft and housing (aligning needle roller bearings).
The bearings require only a very small radial design envelope, particularly if the bearing arrangement is designed without an inner ring.
The bearings are available in numerous sizes and designs.
The bearings result in particularly compact, cost-effective and economical bearing arrangements.

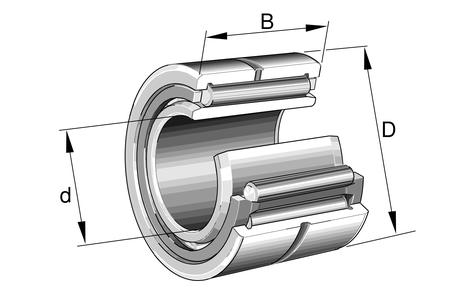

| Bearing No. | Boundary dimensions(mm) | Basic load ratings(N) | Limiting speeds(rpm) | Mass(g) |
| d | Fw | D | B | Cr | Cor | Oil | ≈ |
| NKI8 | 8 | 14 | 25 | 16 | 12400 | 11300 | 21500 | 46.00 |
| NKI9/12 | 9 | 12 | 19 | 12 | 6200 | 7002 | 21700 | 14.60 |
| NKI10/16 | 10 | 14 | 22 | 16 | 9808 | 10500 | 19650 | 27.30 |
| NKI12/20 | 12 | 16 | 24 | 20 | 14000 | 18400 | 21000 | 39.00 |
| NKI15/16 | 15 | 19 | 27 | 16 | 8847 | 12853 | 19100 | 38.00 |
| NKI15/20 | 15 | 19 | 27 | 20 | 12347 | 19053 | 19100 | 45.70 |
| NKI17/16 | 17 | 21 | 29 | 16 | 13000 | 18200 | 20000 | 41.40 |
| NKI20/16 | 20 | 24 | 32 | 16 | 10800 | 17000 | 16700 | 48.50 |
| NKI22/16 | 22 | 25 | 34 | 16 | 8721 | 15340 | 16200 | 50.00 |
| NKI25/30 | 25 | 29 | 38 | 30 | 31500 | 56000 | 14000 | 115.00 |

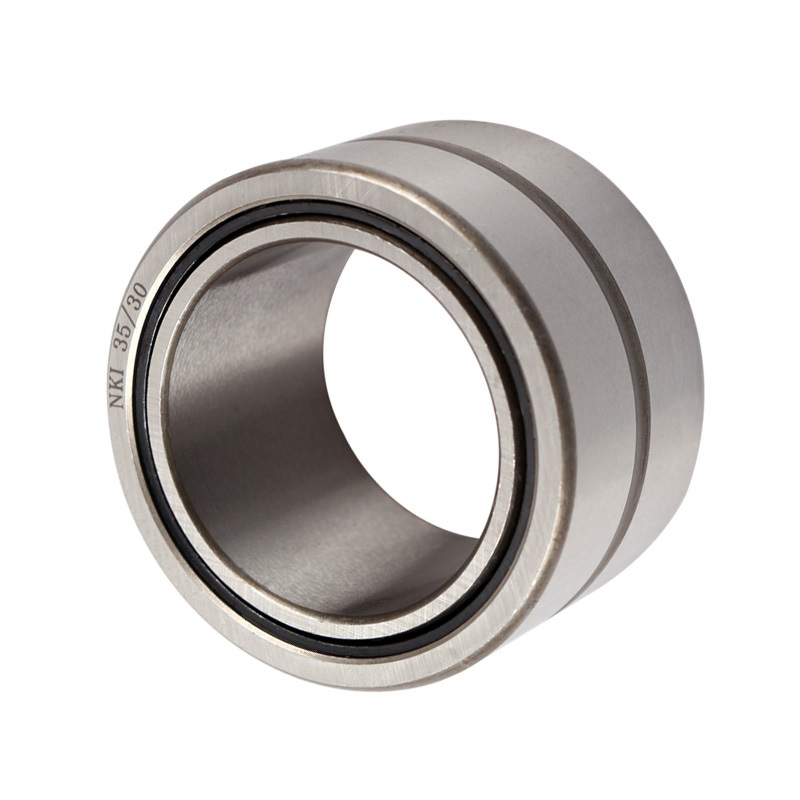

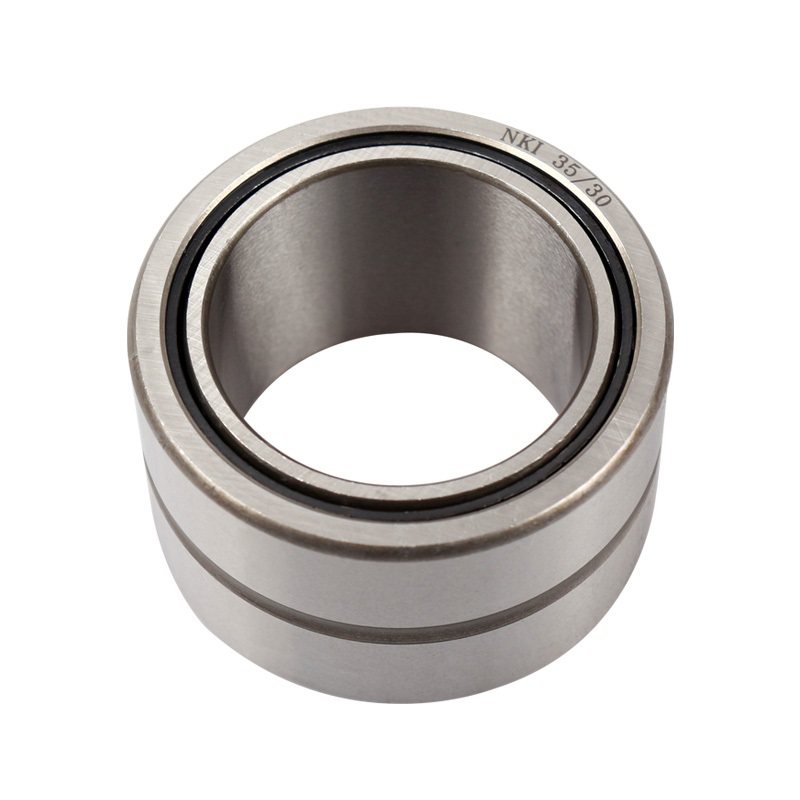

| NKI35/30 | 35 | 40 | 50 | 30 | 22200 | 51350 | 11134 | 165.00 |
| NKI40/20 | 40 | 45 | 55 | 20 | 22000 | 48000 | 10127 | 124.00 |
| NKI40/30 | 40 | 45 | 55 | 30 | 35000 | 86000 | 10127 | 184.00 |
| NKI42/20 | 42 | 47 | 57 | 20 | 26000 | 52500 | 9500 | 138.00 |
| NKI45/25 | 45 | 50 | 62 | 25 | 36000 | 70000 | 8567 | 218.00 |
| NKI45/35 | 45 | 50 | 62 | 35 | 41500 | 102000 | 8567 | 289.00 |
| NKI50/25 | 50 | 55 | 68 | 25 | 32000 | 78000 | 7890 | 262.00 |
| NKI55/35 | 55 | 60 | 72 | 35 | 48000 | 126800 | 7256 | 357.00 |
| NKI60/25 | 60 | 68 | 82 | 25 | 35500 | 85000 | 7156 | 388.00 |
