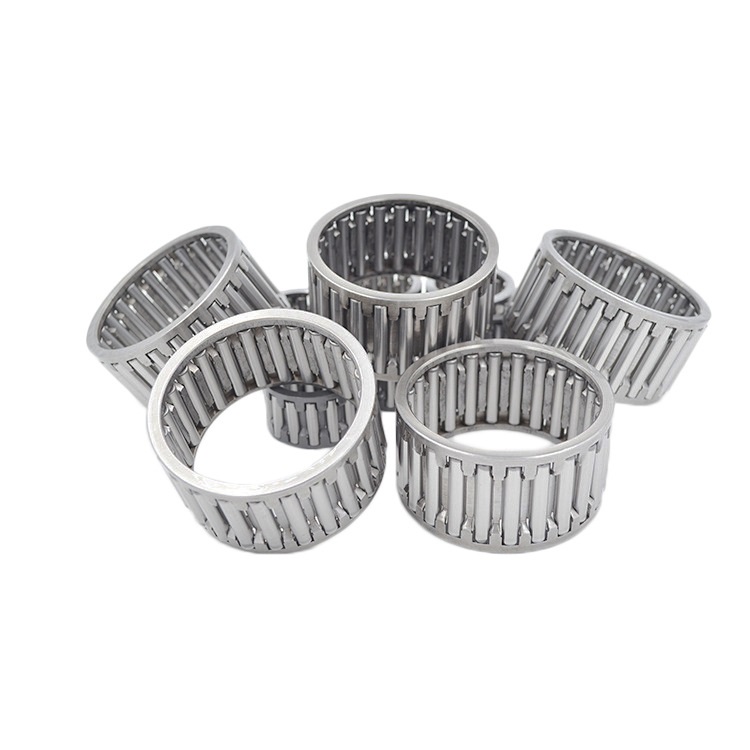

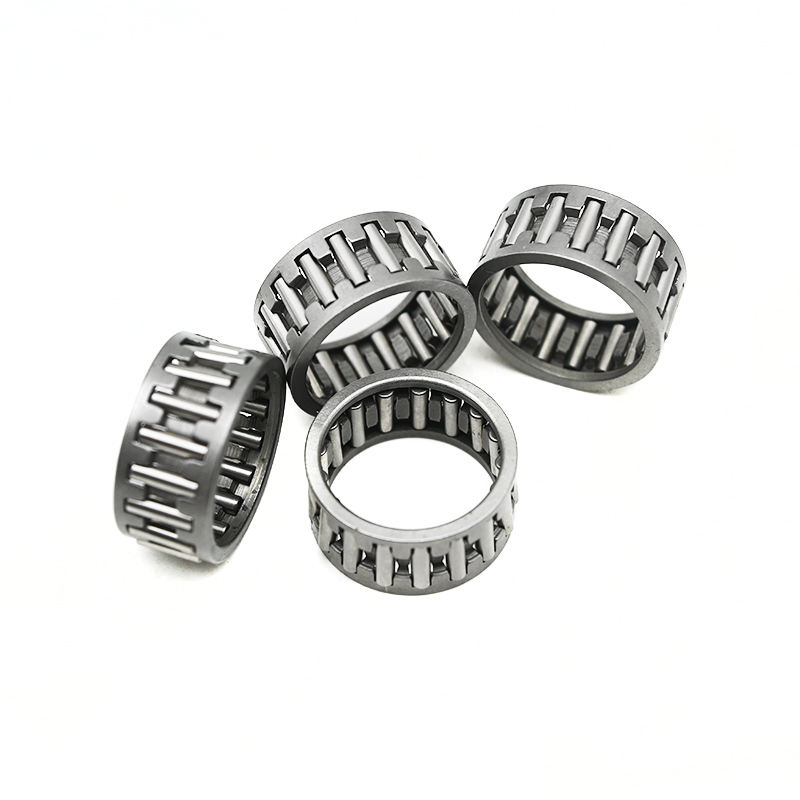

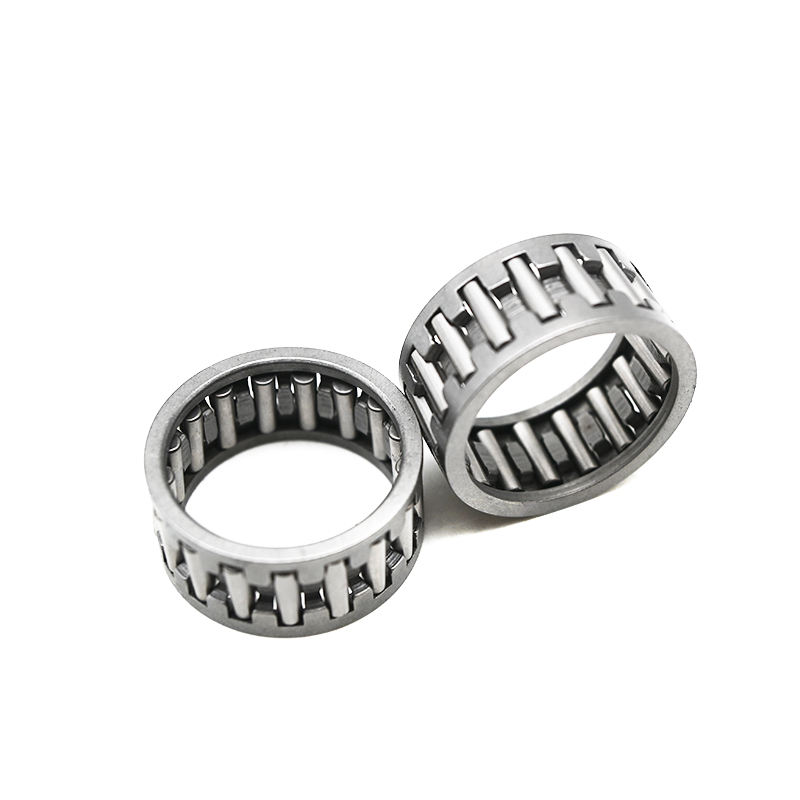

K Series

Needle roller bearings have needle rollers as rolling elements. In terms of rolling bearing technology, cylindrical rolling elements are classified as needle rollers if the rolling element diameter is ≦6 mm and the ratio of the rolling element diameter to the rolling element length is Dw/lw ＜ 1:3.

Due to the small diameter of the rolling elements, all needle roller bearings have the common feature of a low radial section height. Due to the line contact, they are particularly suitable for bearing arrangements with high radial load carrying capacity and rigidity in a restricted radial design envelope.

Radial needle roller bearings can only be used as non-locating bearings. The defined axial displacement value in the case of bearings with inner rings allows axial motion between the shaft and housing. Where necessary, wider inner rings are available for larger displacement values.

Request a Quote

Product Description

Features

The bearings can support high to very high radial forces.

The bearings are used when the load carrying capacity or accuracy of drawn cup needle roller bearings with open ends is no longer sufficient and the high load capacity of cylindrical roller bearings is not yet required.

The bearings can only support radial loads and, as a result, are highly suitable for use as non-locating bearings (they permit axial displacement of the shaft relative to the housing in the bearing).

The bearings permit high speeds in spite of line contact

The bearings compensate misalignments between the shaft and housing (aligning needle roller bearings).

The bearings require only a very small radial design envelope, particularly if the bearing arrangement is designed without an inner ring.

The bearings are available in numerous sizes and designs.

The bearings result in particularly compact, cost-effective and economical bearing arrangements.

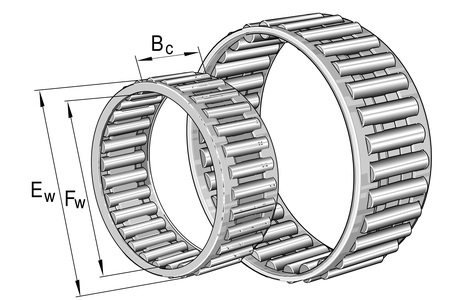

K jiantu.jpg

Bearing No.	Boundary dimensions(mm)			Basic load ratings(N)		Limiting speeds(rpm)	Mass(g)
Bearing No.	Fw	Ew	Bc	Cr	Cor	Oil	≈
K5X8X10TN	5	8	10	2800	2450	37000	0.90
K5X8X8TN	5	8	8	2300	1880	37000	0.70
K6X10X13TN	6	10	13	3500	2800	33000	1.30
K6X9X10TN	6	9	10	3300	3100	35000	1.00
K6X9X8TN	6	9	8	25600	2240	35000	0.80
K7X10X10TN	7	10	10	3350	3400	32000	1.10
K7X10X8TN	7	10	8	2750	2550	32000	0.90
K8X11X10TN	8	11	10	3830	3950	30000	1.70
K8X11X13TN	8	11	13	5000	5700	30000	1.80
K8X11X8TN	8	11	8	3000	2900	30000	1.10
K8X12X10TN	8	12	10	4900	4600	30000	1.30
K9X12X10TN	9	12	10	4200	4700	30000	1.50
K9X12X13TN	9	12	13	5500	6700	30000	1.90
K10X13X10TN	10	13	10	4500	5250	27000	1.60
K10X13X13TN	10	13	13	6000	7600	27000	2.10
K10X13X16TN	10	13	16	6300	7800	27000	2.20
K10X14X10TN	10	14	10	7000	7900	27000	2.90
K10X14X13TN	10	14	13	8000	9100	26000	4.30
K10X16X12TN	10	16	12	7000	9300	27000	3.70
K12X15X10TN	12	15	10	4320	5730	25000	1.90
K12X15X13TN	12	15	13	6000	8100	25000	2.40
K12X15X20TN	12	15	20	8200	12000	25000	3.80
K12X15X9TN	12	15	9	4120	5210	25000	2.70
K12X16X10TN	12	16	10	6000	6900	25000	3.40
K12X16X13TN	12	16	13	7900	9200	25000	3.80
K12X16X8TN	12	16	8	4200	4700	25000	2.90
K12X17X13TN	12	17	13	9300	10000	24000	4.40
K12X18X12TN	12	18	12	9800	8000	24000	5.00
K14X17X10	14	17	10	5100	6800	23000	4.00
K14X17X17	14	17	17	9300	14000	23000	6.80
K14X18X10	14	18	10	6800	8300	23000	4.80
K14X18X13	14	18	13	8100	9800	23000	6.30
K14X18X14	14	18	14	9200	12000	23000	6.80
K14X18X15	14	18	15	10000	13000	23000	7.30
K14X18X17	14	18	17	10500	13900	23000	8.10
K14X20X12	14	20	12	9900	10500	22000	8.60
K15X18X14	15	18	14	7500	11000	23000	5.30
K15X18X17	15	18	17	9600	15900	23000	6.40
K15X19X10	15	19	10	7200	9000	22000	5.10
K15X19X13	15	19	13	8300	9800	22000	7.00
K15X19X17	15	19	17	10300	15000	22000	8.80
K15X20X13	15	20	13	9700	11000	22000	8.90
K15X21X12	15	21	12	10000	13000	22000	10.00
K15X21X15	15	21	15	13800	16000	22000	13.00
K15X21X21	15	21	21	18000	24000	22000	18.20
K16X20X10	16	20	10	7600	9700	22000	5.70
K16X20X13	16	20	13	8700	11300	22000	7.10
K16X20X17	16	20	17	11200	16300	22000	9.20
K16X21X10	16	21	10	9000	12000	22000	3.70
K16X22X12	16	22	12	11000	12000	21000	10.40
K16X22X13	16	22	13	12000	13400	21000	11.90
K16X22X16	16	22	16	14300	17000	21000	13.70
K16X22X20	16	22	20	18000	22300	21000	16.70
K16X23X14	16	23	14	19000	21000	19000	20.00
K16X24X20	16	24	20	21100	23000	20000	24.90
K17X21X10	17	21	10	7900	10100	21000	5.60
K17X21X13	17	21	13	10000	14100	21000	7.50
K17X21X17	17	21	17	12000	17400	21000	9.50
K17X23X14	17	23	14	11000	15000	21000	11.50
K18X22X10	18	22	10	8200	9900	20000	6.10
K18X22X13	18	22	10	9000	12100	20000	7.70
K18X22X17	18	22	17	11900	17600	20000	10.80
K18X24X12	18	24	12	11200	12900	20000	11.60
K18X24X13	18	24	13	12900	14900	20000	12.60
K18X24X13.5	18	24	13.5	12900	14900	20000	13.00
K18X24X20	18	24	20	20000	26500	20000	19.00
K18X25X14	18	25	14	16500	18800	20000	14.90
K18X25X22	18	25	22	22900	28400	20000	24.30
K18X26X14	18	26	14	18000	20000	18000	19.00
K18X28X16	18	28	16	19000	18400	19000	24.00
K19X23X13	19	23	13	9300	13000	20000	8.20
K19X23X17	19	23	17	12000	18600	20000	11.10
K20X24X10	20	24	10	8700	12100	19000	6.50
K20X24X12	20	24	12	9600	13800	19000	8.00
K20X24X13	20	24	13	9600	13800	19000	8.90
K20X24X17	20	24	17	12400	20000	19000	11.20
K20X26X12	20	26	12	13100	15700	19000	13.20
K20X26X16	20	26	16	18000	25000	18500	17.50
K20X26X17	20	26	17	18700	25500	19000	18.20
K20X26X20	20	26	20	20600	28500	19000	22.00
K20X28X20	20	28	20	23400	28000	18000	26.80
K20X28X25	20	28	25	30000	28500	18000	36.20
K20X30X30	20	30	30	35000	41000	18000	56.00
K21X25X13	21	25	13	9600	14500	19000	9.00
K21X25X17	21	25	17	12800	21000	19000	12.00
K22X26X10	22	26	10	8700	12900	18000	7.10
K22X26X13	22	26	13	10000	15400	18000	9.40
K22X26X17	22	26	17	13100	22100	18000	12.10
K22X27X13	22	27	13	14000	23000	18000	10.80
K22X28X17	22	28	17	19000	26500	18000	19.70
K22X28X23	22	28	23	20000	27000	19000	26.00
K22X29X16	22	29	16	19500	25000	17000	22.20
K22X30X15TN	22	30	15	19600	22900	17000	14.40
K22X30X20	22	30	20	21000	23500	18900	28.00
K22X32X24	22	32	24	33500	39500	16000	43.40
K23X35X16TN	23	35	16	24000	23400	15000	30.00
K24X28X10	24	28	10	9400	14300	17000	8.10
K24X28X13	24	28	13	10500	17000	17000	10.10
K24X28X17	24	28	17	14000	24500	17000	13.20
K24X29X13	24	29	13	13100	19100	16000	13.50
K24X30X17	24	30	17	19000	27000	16000	21.50
K24X30X31	24	30	31	27000	43000	16000	39.10
K25X29X10	25	29	10	9700	14900	16000	8.30
K25X29X13	25	29	13	10800	17900	16000	10.40
K25X29X17	25	29	17	14500	25500	16000	13.70
K25X30X13	25	30	13	14100	21300	16000	12.90
K25X30X20	25	30	20	21100	28000	16000	20.50
K25X30X25	25	30	25	21700	40400	15000	21.00
K25X30X26	25	30	26	20100	26500	15000	21.60
K25X31X17	25	31	17	19000	28000	16000	21.80
K25X31X21	25	31	21	24100	37500	16000	26.20
K25X32X16	25	32	16	20500	27500	15000	24.50
K25X33X20	25	33	20	28000	37500	15000	32.00
K25X33X24	25	33	24	33900	46500	15000	38.70
K25X34X18	25	34	18	48000	67000	15000	32.00
K25X35X30	25	35	30	46500	61500	14000	65.50
K26X30X10	26	30	10	9500	15500	16000	9.00
K26X30X13	26	30	13	11100	18700	16000	11.40
K26X30X17	26	30	17	14700	27000	16000	15.00
K26X30X22	26	30	22	15200	28000	16000	12.30
K26X31X13	26	31	13	12400	18400	15000	9.90
K27X32X17	27	32	27	16000	34000	17000	29.00
K28X32X16.5	28	32	16.5	15000	32400	14000	16.00
K28X32X17	28	32	17	15000	32400	14000	18.20
K28X33X13	28	33	13	14800	23600	14000	15.20
K28X33X17	28	33	17	19100	33000	14000	19.50
K28X33X27TN	28	33	27	22800	40500	14000	19.00
K28X34X17	28	34	17	21300	35000	14000	24.20
K28X35X16	28	35	16	21000	29000	14000	26.00
K28X35X18	28	35	18	23500	33500	14000	31.00
K28X35X20	28	35	20	24000	34000	14000	35.00
K28X35X27	28	35	27	34500	54500	14000	47.00
K28X36X16	28	36	16	34000	47000	11000	40.00
K28X40X18	28	40	18	33000	36500	12000	50.00
K28X40X25	28	40	25	45000	54500	12000	71.00
K30X34X13	30	34	13	11800	21200	13000	14.60
K30X35X13	30	35	13	15100	25000	13000	16.30
K30X35X17	30	35	17	19100	33500	13000	21.30
K30X35X26	30	35	26	23500	43500	12000	32.00
K30X35X27	30	35	27	30000	58500	13000	33.30
K30X37X16	30	37	16	22500	33000	13000	26.40
K30X38X25	30	38	25	16000	39000	13000	43.00
K30X40X18	30	40	18	31500	39500	13000	44.00
K30X40X30	30	40	30	48500	68500	13000	78.00
K32X37X13	32	37	13	15000	25000	12000	18.30
K32X37X17	32	37	17	19400	35000	12000	22.40
K32X37X27	32	37	27	29500	59500	12000	36.70
K32X37X28TN	32	37	28	23100	43000	12000	22.30
K32X38X16	32	38	16	21000	34000	12000	25.00
K32X38X20	32	38	20	26000	44500	12000	31.00
K32X38X26TN	32	38	26	27000	46500	12000	25.20
K32X39X16	32	39	16	23500	35000	12000	36.70
K32X39X18	32	39	18	26000	40500	12000	37.20
K32X40X20	32	40	20	37000	40500	12000	48.00
K32X40X36	32	40	36	53500	91500	12000	73.00
K32X40X42TN	32	40	42	49500	83500	12000	77.10
K32X46X32	32	46	32	65500	82500	11000	119.00
K35X40X13	35	40	13	15800	27500	11000	18.80
K35X40X17	35	40	17	20300	38000	11000	25.30
K35X40X25	35	40	25	29000	59500	11000	31.00
K35X40X27	35	40	27	27800	62100	11000	28.00
K35X40X27TN	35	40	27	24500	48000	11000	23.40
K35X40X30	35	40	30	25000	49500	11000	43.00
K35X42X16	35	42	16	23900	37000	11000	34.00
K35X42X18	35	42	18	27000	42500	11000	39.20
K35X42X30	35	42	30	38500	67500	11000	62.40
K35X43X18	35	43	18	28000	41500	11000	38.00
K35X45X20	35	45	20	36500	49500	10000	55.50
K35X45X30	35	45	30	52500	78500	10000	80.00
K35X45X49	35	45	49	81500	13400	10000	120.00
K36X41X30	36	41	30	23000	43000	11000	52.00
K36X42X16	36	42	16	24000	42000	11000	50.00
K37X42X17	37	42	17	21900	42500	10000	25.80
K37X42X27	37	42	27	31500	67500	10000	40.70
K37X45X26	37	45	26	43500	73500	10000	60.50
K38X43X17	38	43	17	20000	38000	10000	26.90
K38X43X27	38	43	27	31000	67500	10000	43.20
K38X46X20	38	46	20	35000	56500	10000	46.00
K38X46X32	38	46	32	54500	98500	10000	72.70
K39X44X24	39	44	24	28000	58500	10000	38.00
K40X44X13	40	44	13	13500	28000	10000	20.00
K40X45X13	40	45	13	17100	32000	10000	21.50
K40X45X17	40	45	17	20900	41000	10000	27.40
K40X45X21	40	45	21	24400	49500	10000	36.50
K40X45X27	40	45	27	32500	72500	10000	46.00
K40X46X17	40	46	17	24500	44500	9000	30.00
K40X47X18	40	47	18	29000	49500	9000	45.20
K40X47X20	40	47	20	32000	56500	9000	42.00
K40X48X20	40	48	20	35500	58500	9000	57.70
K42X47X13	42	47	13	17300	33000	9000	22.50
K42X47X17	42	47	17	21100	42500	9000	31.10
K42X47X25TN	42	47	25	27000	57500	9000	25.40
K42X47X27	42	47	27	33000	74500	9000	46.60
K42X48X35	42	48	35	35000	76000	9000	60.00
K42X50X18	42	50	18	31000	49500	9000	53.00
K42X50X20	42	50	20	34500	56500	9000	54.00
K43X48X17	43	48	17	21000	42500	9000	29.30
K43X48X27	43	48	27	33000	74500	9000	45.70
K43X50X18	43	50	18	30500	53500	9000	48.50
K45X49X19	45	49	19	17500	40000	8000	27.00
K45X50X17	45	50	17	22000	45000	8000	25.50
K45X50X27	45	50	27	34000	79500	8000	50.00
K45X50X32TN	45	50	32	38000	90500	8000	45.00
K45X52X18	45	52	18	31000	56500	8000	51.00
K45X52X21TN	45	52	21	39500	57500	8000	32.90
K45X53X20	45	53	20	38500	66500	8000	62.20
K45X53X21	45	53	21	38000	66500	8000	65.00
K45X53X22	45	53	22	42000	66500	8000	68.40
K45X53X28	45	53	28	51500	97500	8000	78.00
K45X59X18TN	45	59	18	43500	53500	7000	60.50
K45X59X32	45	59	32	72500	101500	7000	145.50
K45X59X36	45	59	36	75500	108500	7000	195.00
K47X52X17	47	52	17	22800	48500	8000	32.00
K47X52X27	47	52	27	34500	82500	8000	50.70
K47X53X25	47	53	25	38000	81500	8000	53.00
K47X55X28	47	55	28	52500	99500	7500	62.40
K48X54X19	48	54	19	30000	60500	7500	44.00
K48X54X25	48	54	25	31000	91000	7500	55.00
K50X55X13.5	50	55	13.5	17500	36000	7500	31.00
K50X55X17	50	55	17	21400	46500	7500	35.00
K50X55X20	50	55	20	26000	59500	7500	39.40
K50X55X30	50	55	30	38500	96500	7500	59.40
K50X57X18	50	57	18	33000	62500	7000	53.40
K50X58X20	50	58	20	35000	61500	7000	64.90
K50X58X25	50	58	25	43500	80500	7000	81.00
K52X57X12	52	57	12	17500	36000	7000	24.00
K55X60X20	55	60	20	28000	65500	6500	43.40
K55X60X27	55	60	27	37500	96500	6500	60.50
K55X60X30	55	60	30	40500	10300	6500	68.60
K55X61X20	55	61	20	41000	11000	6500	56.00
K55X62X18	55	62	18	35000	69500	6500	58.40
K55X63X15	55	63	15	24500	40500	6500	53.00
K55X63X20	55	63	20	39500	73500	6500	73.30
K55X63X25	55	63	25	49500	99500	6500	88.00
K55X63X32	55	63	32	61500	129500	6500	117.00
K56X61X20	56	61	20	27000	64500	6500	45.00
K58X63X17	58	63	17	21500	63500	6000	42.00
K58X64X19	58	64	19	24500	77500	6000	53.00
K58X65X18	58	65	18	34500	69500	6000	52.00
K60X65X20	60	65	20	29000	71500	6000	50.50
K60X65X30	60	65	30	42000	115500	6000	71.20
K60X68X20	60	68	20	43000	84500	5500	79.00
K60X68X23	60	68	23	49000	100500	5500	94.00
K60X68X25	60	68	25	52500	110500	5500	97.00
K60X68X27	60	68	27	59000	120500	6000	98.00
K60X75X42	60	75	42	11300	19200	5500	240.00
K63X70X21	63	70	21	45000	100500	5500	75.00
K64X70X16	64	70	16	27500	59500	5500	53.00
K65X70X20	65	70	20	30000	76500	5500	49.00
K65X70X30	65	70	30	43500	123500	5500	83.00
K65X73X23	65	73	23	45500	93500	5000	100.00
K65X73X30	65	73	30	56500	122500	5000	126.00
K68X74X20	68	74	20	35000	83500	5000	65.00
K68X74X30	68	74	30	46000	117500	5000	97.00
K68X75X20	68	75	32	53500	127500	4500	120.00
K70X76X20	70	76	20	35500	85500	4500	70.00
K70X76X30	70	76	30	51500	138500	4500	100.00
K70X78X25	70	78	25	51500	111500	4500	115.00
K70X78X30	70	78	30	59500	134500	4500	136.00
K70X80X30	70	80	30	72500	147500	4500	150.00
K72X80X20	72	80	20	41000	84500	4500	94.00
K73X79X20	73	79	20	36500	99500	4500	69.00
K75X81X20	75	81	20	37000	93500	4500	72.00
K75X81X30	75	81	30	51500	142000	4500	106.00
K75X83X23	75	83	23	49500	108000	4000	113.00
K75X83X30	75	83	30	61500	142000	4000	147.00
K80X86X20	80	86	20	38000	97500	4000	76.00
K80X86X30	80	86	30	55500	158500	4000	114.00
K80X88X30	80	88	30	71500	178500	4000	141.00
K85X92X20	85	92	20	44000	107500	3500	96.00
K90X97X20	90	97	20	44500	112500	3000	103.00
K90X98X27	90	98	27	60500	149500	3000	150.00
K90X98X30	90	98	30	67500	171500	3000	172.00
K95X102X20	95	102	20	45500	122500	2900	110.00
K95X103X30	95	103	30	68500	179500	2900	177.00
K100X107X21	100	107	21	47500	126500	2700	120.00
K100X108X27	100	108	27	56500	142500	2700	176.00
K100X108X30	100	108	30	70500	187500	2700	190.00
K105X112X21	105	112	21	47000	126500	2500	123.00
K105X113X30	105	113	30	71500	196500	2500	198.00
K110X117X24	110	117	24	55500	157500	2300	146.00
K110X118X30	110	118	30	77500	218500	2300	217.00
