Home / Products / Spherical Roller Thrust Bearing
29300 Series

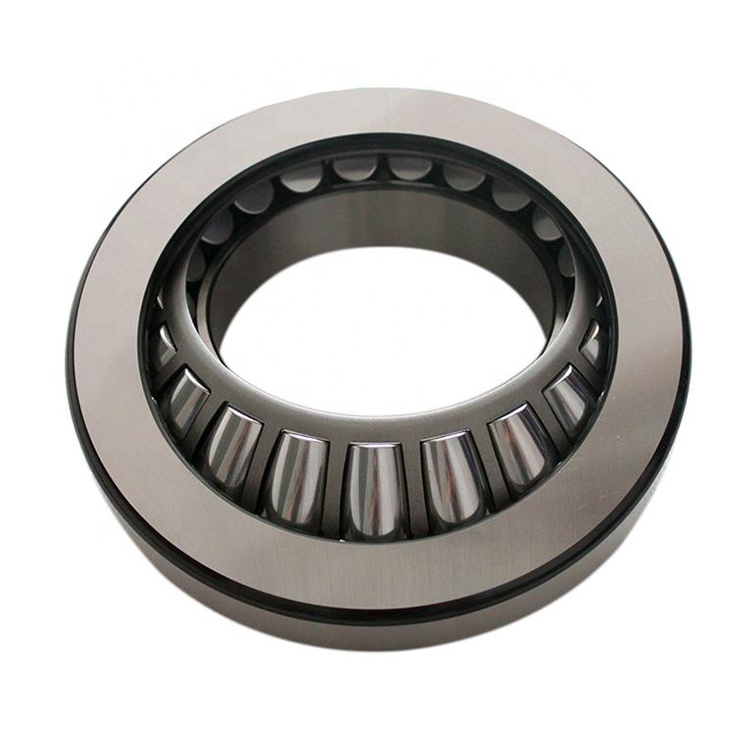

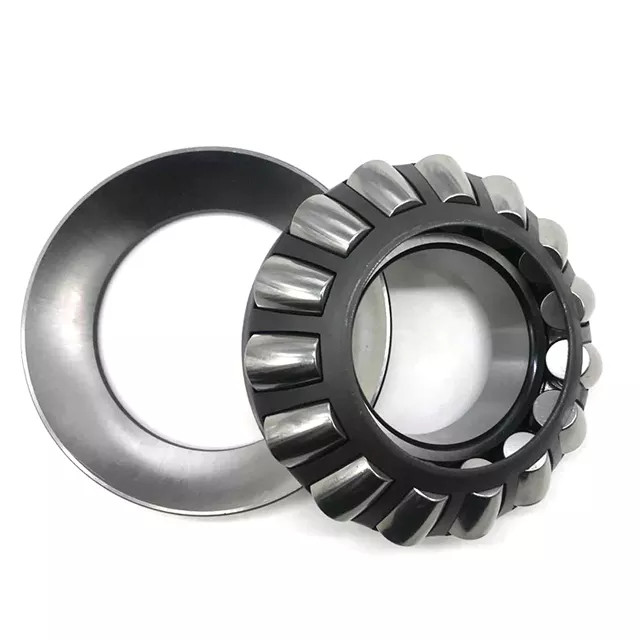

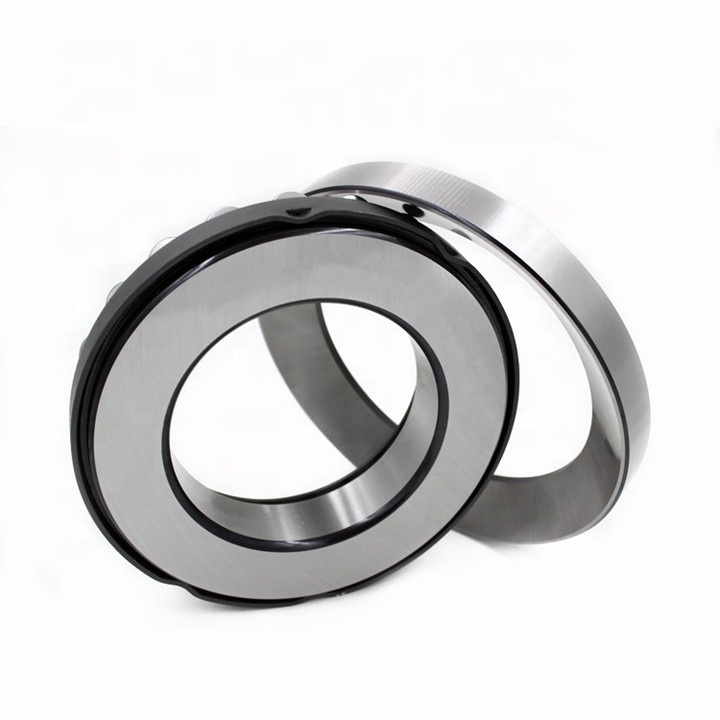

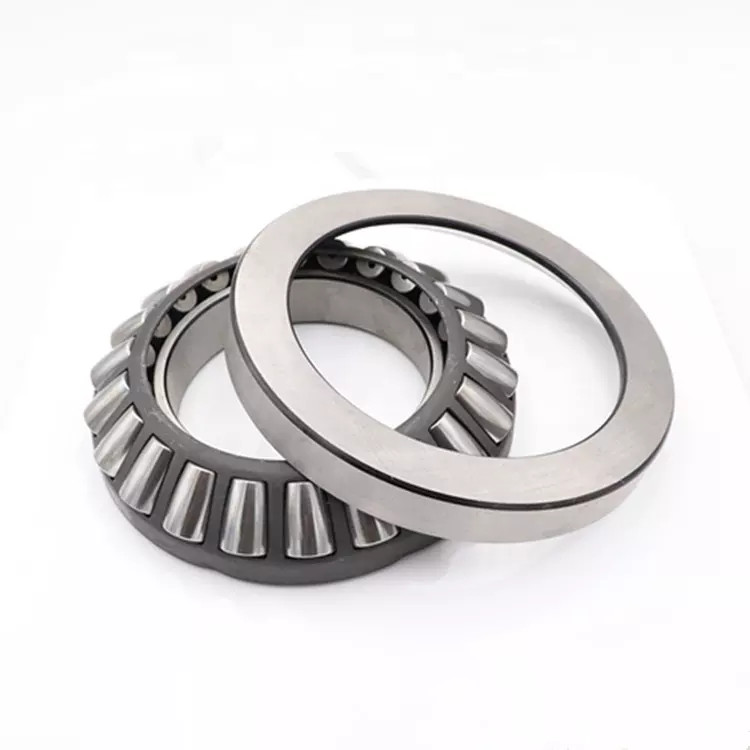

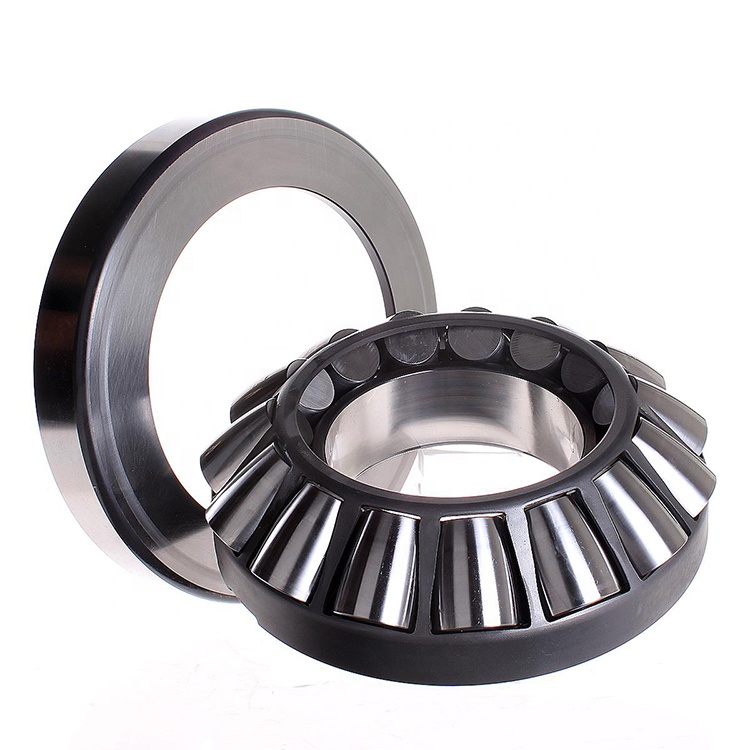

Spherical roller thrust bearings are separable and can carry heavy axial loads. Furthermore, they are stiff and insensitive to shock loads, and they require little space. They are single direction bearings and can only accommodate axial load in one direction. Their main use is in applications where the load carrying capacity of thrust ball bearing is inadequate.
Request a Quote
Product Description

Features

The rollers of these bearings are of spherical shape, and the spherical raceway surface of the housing washer in self-aligned. These bearings are featured by the extremely big axial load carrying capacity and meanwhile they can also carry certain radial load.

Cages

Pressed steel cages or machined brass cages are usually used.

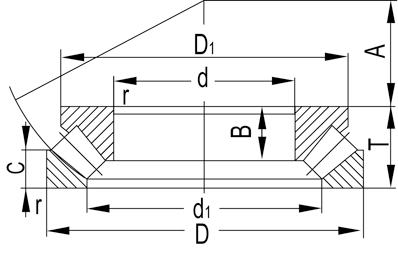

spherical roller thrust bearings gongcheng.jpg



Bearing No.Boundary dimensionsBasic load ratings(kN)Limiting speedMass
mmDynamicStaticrpmkg
dDTrsminCrCorOil≈
2931785150391.52658202,3002.94
2931890155391.52859152,3003.08
29320100170421.53451,1602,1003.94
293221101904824451,5001,8005.78
29324120210542.15351,7701,6007.92
29326130225582.16152,1001,5009.76
29328140240602.16852,3601,40011.4
29330150250602.16752,3901,40012
293321602706738202,8601,30015.9
293341702806738553,0501,20016.6
293361803007339953,6001,10021.2
293381903207841,1504,2501,10026
293402003408541,2804,60098031.9
