Features

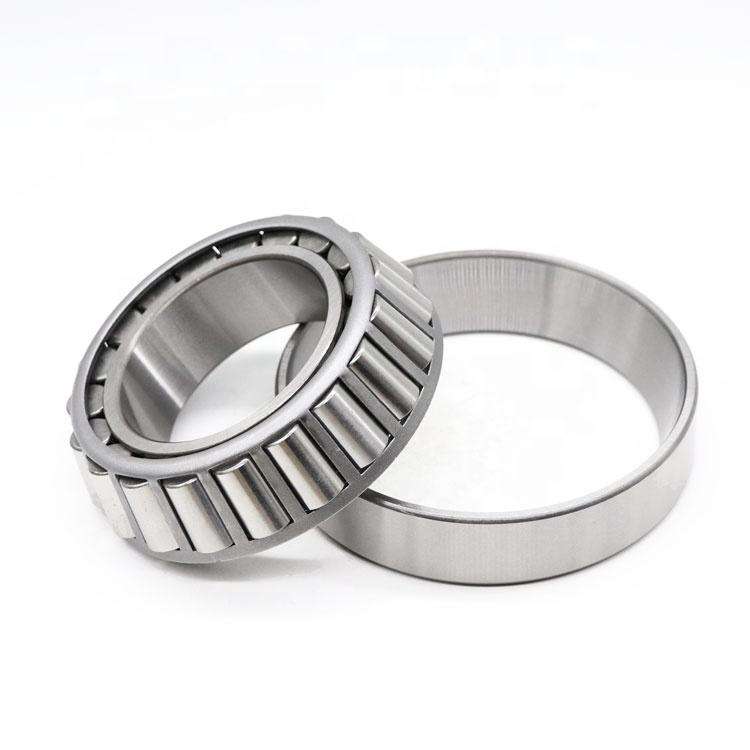

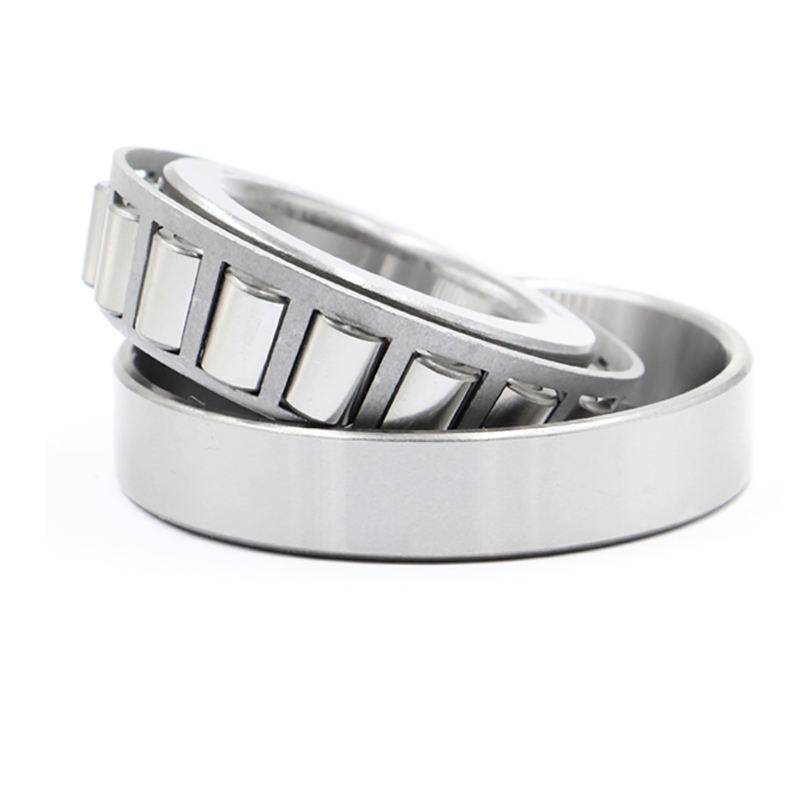

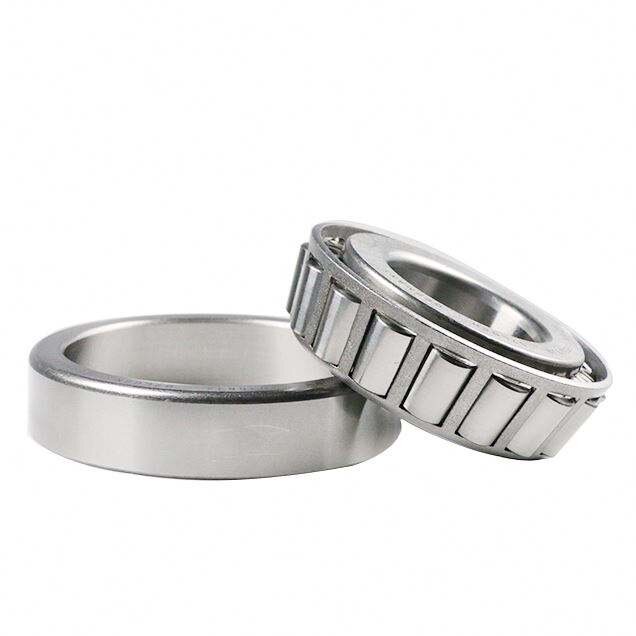

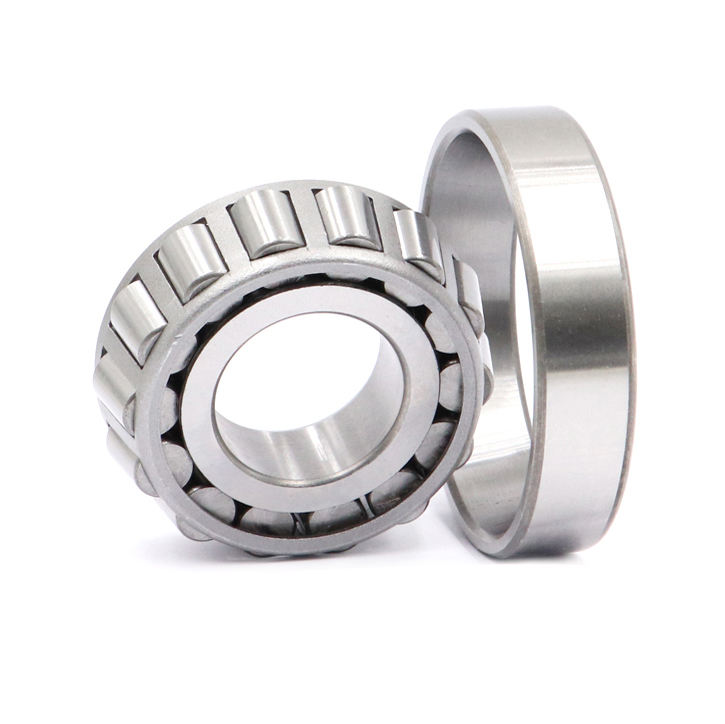

Tapered roller bearings are particularly suitable where:
high radial loads occur;
high axial loads act on one side;
combined loads must be supported (radial and axial forces acting simultaneously);
precise axial guidance of the shaft is required (locating bearing function);
the bearing arrangement must have very high axial rigidity;
the bearing position is operated clearance-free or under preload (single bearings are adjusted against each other);
high running accuracy is required;
the load carrying capacity of angular contact ball bearings is no longer sufficient and the higher speed suitability of angular contact ball bearings is not required;
the bearings are not required to compensate misalignments;
the design objective comprises compact, rigid and economical bearing arrangements with a high load carrying capacity.
Bearing No. | Boundary dimensions | Basic load rating(kN) | Limiting speed | Mass |
mm | Dynamic | Static | rpm | Kg |
d | D | T | B | C | Rmin | rmin | Cr | Cor | Grease | Oil | ≈ |
33005 | 25 | 47 | 17 | 17 | 14 | 0.6 | 0.6 | 27.5 | 37 | 8000 | 10700 | 0.131 |
33006 | 30 | 55 | 20 | 20 | 16 | 1 | 1 | 39.5 | 59.5 | 6700 | 9100 | 0.208 |
33007 | 35 | 62 | 21 | 21 | 17 | 1 | 1 | 51.3 | 68 | 6200 | 8200 | 0.267 |
33008 | 40 | 68 | 22 | 22 | 18 | 1 | 1 | 60.4 | 84.6 | 5500 | 7400 | 0.322 |
33009 | 45 | 75 | 24 | 24 | 19 | 1 | 1 | 69.6 | 101 | 5000 | 6700 | 0.414 |
33010 | 50 | 80 | 24 | 24 | 19 | 1 | 1 | 73 | 110 | 4600 | 6100 | 0.452 |
33011 | 55 | 90 | 27 | 27 | 21 | 1.5 | 1.5 | 96.5 | 145 | 4100 | 5400 | 0.672 |
33012 | 60 | 95 | 27 | 27 | 21 | 1.5 | 1.5 | 101 | 162 | 3900 | 5200 | 0.713 |
33013 | 65 | 100 | 27 | 27 | 21 | 1.5 | 1.5 | 103 | 169 | 3600 | 4800 | 0.758 |
33014 | 70 | 110 | 31 | 31 | 25.5 | 1.5 | 1.5 | 134 | 208 | 3300 | 4400 | 1.110 |
33015 | 75 | 115 | 31 | 31 | 25.5 | 1.5 | 1.5 | 141 | 225 | 3200 | 4200 | 1.180 |
33019 | 95 | 145 | 39 | 39 | 32.5 | 2 | 1.5 | 226 | 382 | 2500 | 3300 | 2.300 |
33022 | 110 | 170 | 47 | 47 | 37 | 2.5 | 2 | 287 | 502 | 2100 | 2800 | 3.775 |
