Features
Tapered roller bearings are particularly suitable where:
high radial loads occur;
high axial loads act on one side;
combined loads must be supported (radial and axial forces acting simultaneously);
precise axial guidance of the shaft is required (locating bearing function);
the bearing arrangement must have very high axial rigidity;
the bearing position is operated clearance-free or under preload (single bearings are adjusted against each other);
high running accuracy is required;
the load carrying capacity of angular contact ball bearings is no longer sufficient and the higher speed suitability of angular contact ball bearings is not required;
the bearings are not required to compensate misalignments;
the design objective comprises compact, rigid and economical bearing arrangements with a high load carrying capacity.
| Bearing No. | Boundary dimensions | Basic load rating(kN) | Limiting speed | Mass |
| mm | Dynamic | Static | rpm | Kg |
| d | D | T | B | C | Rmin | rmin | Cr | Cor | Grease | Oil | ≈ |
| 30302 | 15 | 42 | 14.25 | 13 | 11 | 1 | 1 | 22.9 | 21.7 | 9000 | 13000 | 0.096 |
| 30303 | 17 | 47 | 15.25 | 14 | 12 | 1 | 1 | 28.3 | 27.4 | 8500 | 12000 | 0.130 |
| 30304 | 20 | 52 | 16.25 | 15 | 13 | 1.5 | 1.5 | 33.2 | 33.3 | 8000 | 11000 | 0.166 |
| 30305 | 25 | 62 | 18.25 | 17 | 15 | 1.5 | 1.5 | 47 | 48.3 | 6700 | 9000 | 0.266 |

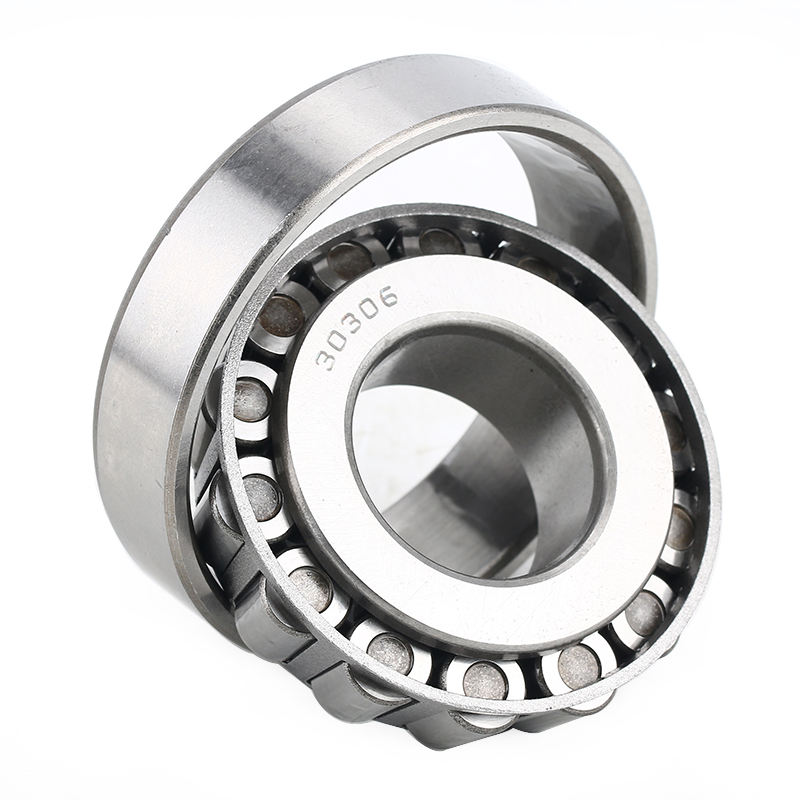

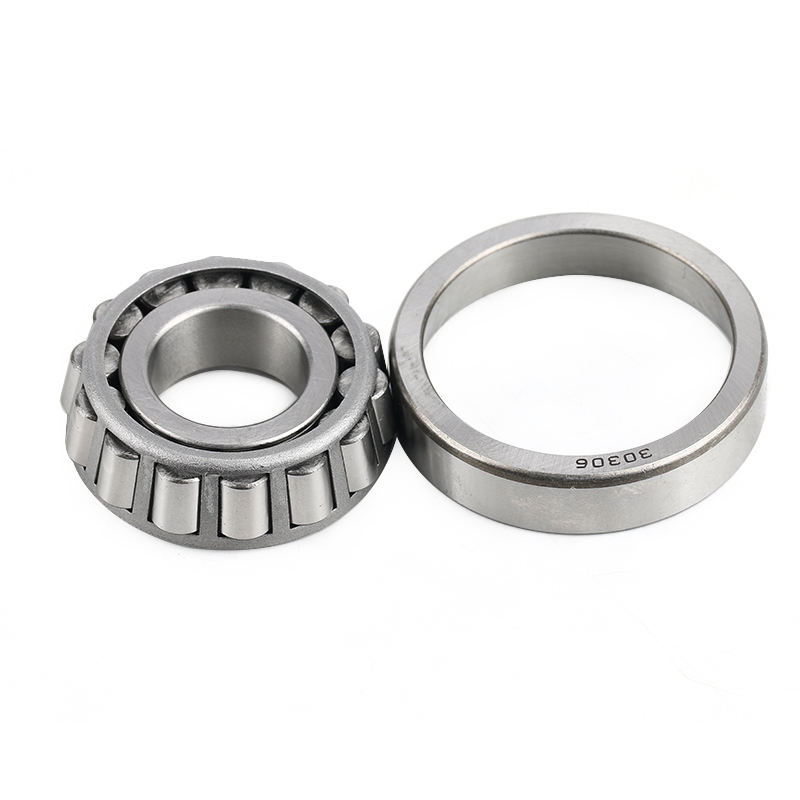

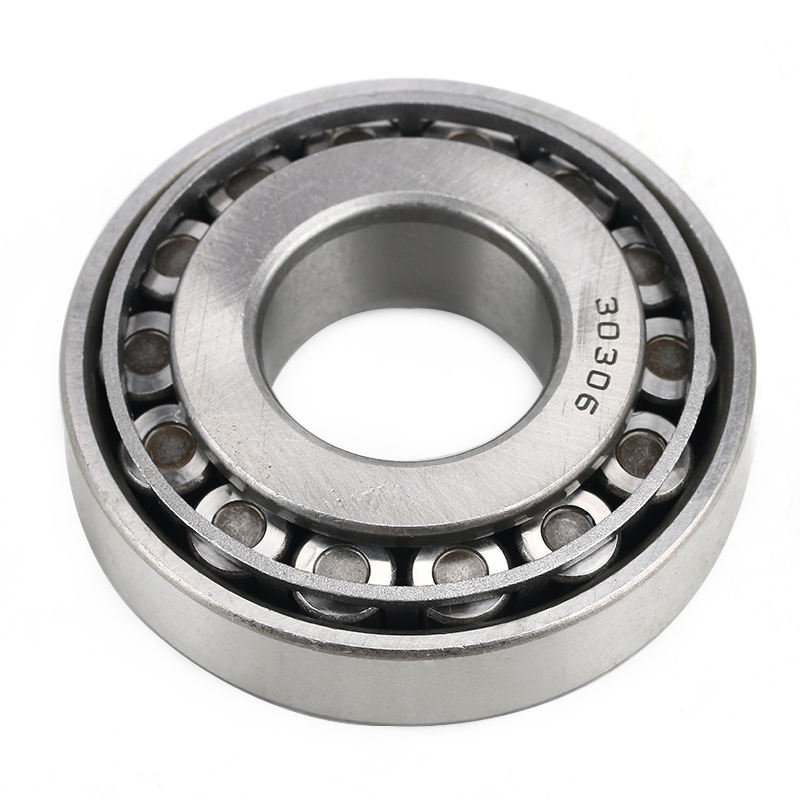

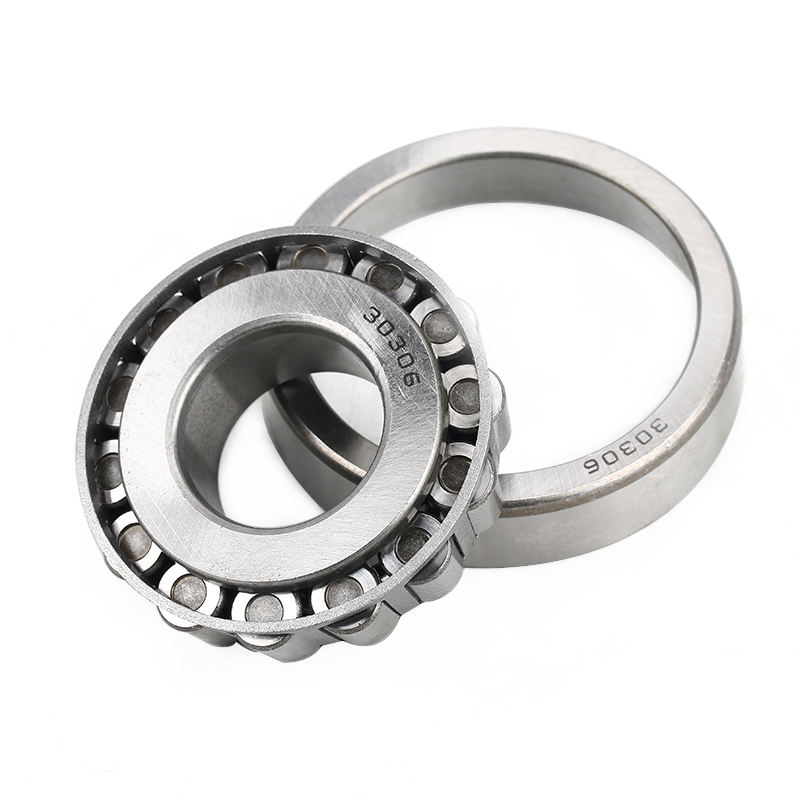

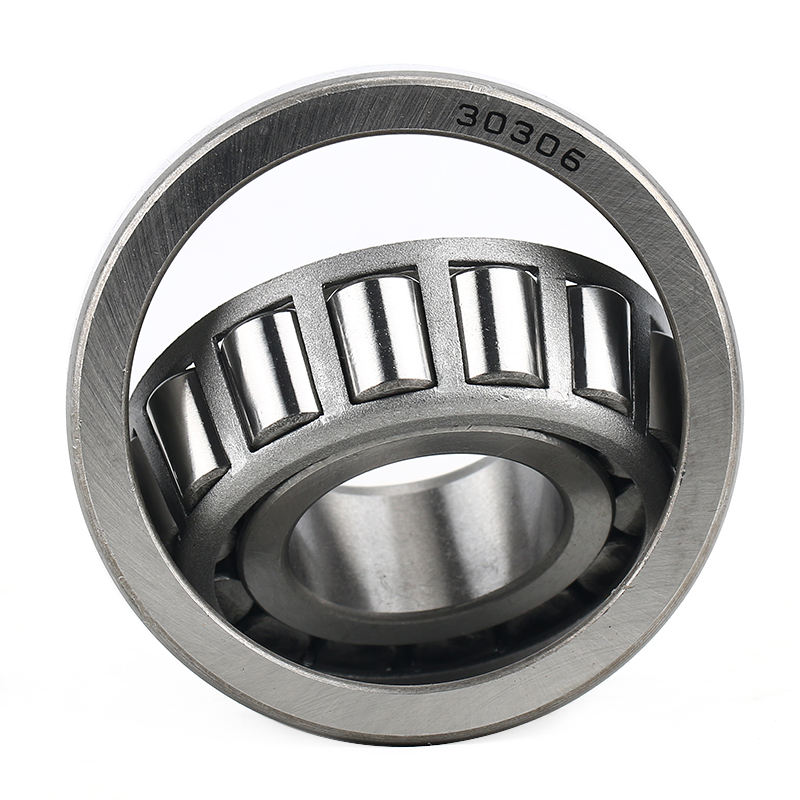

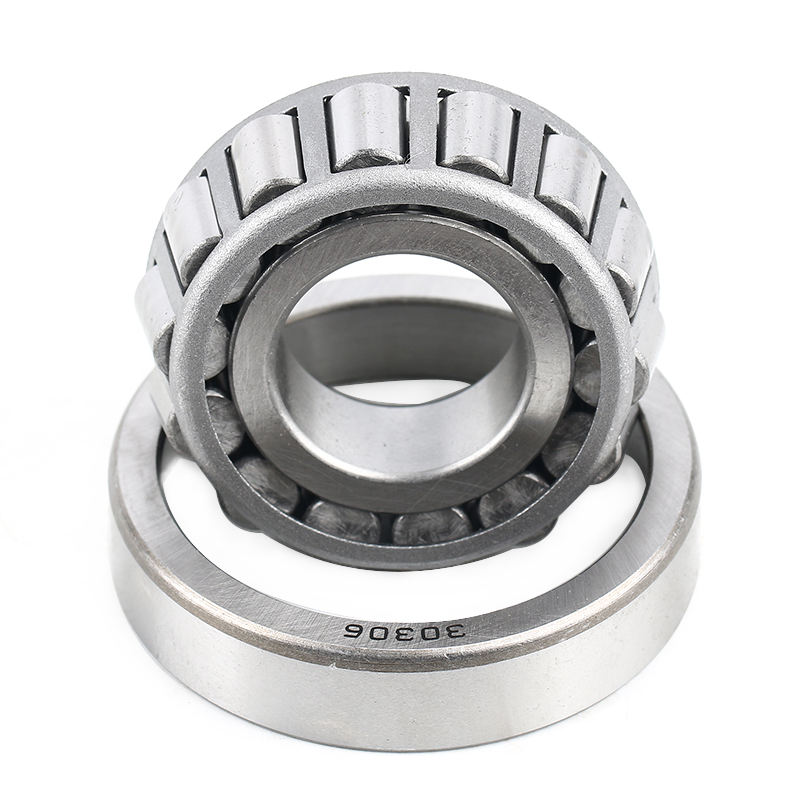

| 30306 | 30 | 72 | 20.75 | 19 | 16 | 1.5 | 1.5 | 59 | 63.9 | 5600 | 7500 | 0.391 |
| 30307 | 35 | 80 | 22.75 | 21 | 18 | 2 | 1.5 | 75.4 | 83.6 | 5000 | 6700 | 0.484 |
| 30308 | 40 | 90 | 25.25 | 23 | 20 | 2 | 1.5 | 90 | 108 | 4500 | 6000 | 0.751 |
| 30309 | 45 | 100 | 27.25 | 25 | 22 | 2 | 1.5 | 108 | 120 | 4000 | 5300 | 0.985 |
| 30310 | 50 | 110 | 29.25 | 27 | 23 | 2.5 | 2 | 130 | 159 | 3600 | 4800 | 1.280 |
| 30311 | 55 | 120 | 31.5 | 29 | 25 | 2.5 | 2 | 153 | 190 | 3200 | 4300 | 1.610 |
| 30312 | 60 | 130 | 33.5 | 31 | 26 | 3 | 2.5 | 170 | 211 | 3000 | 4000 | 1.950 |
| 30313 | 65 | 140 | 36 | 33 | 28 | 3 | 2.5 | 195 | 244 | 2600 | 3600 | 2.440 |
| 30314 | 70 | 150 | 38 | 35 | 30 | 3 | 2.5 | 187 | 220 | 2000 | 3000 | 2.990 |
| 30315 | 75 | 160 | 40 | 37 | 31 | 3 | 2.5 | 250 | 318 | 2200 | 3200 | 3.580 |
| 30316 | 80 | 170 | 42.5 | 39 | 33 | 3 | 2.5 | 278 | 356 | 2000 | 3000 | 4.270 |
| 30317 | 85 | 180 | 44.5 | 41 | 34 | 4 | 3 | 304 | 392 | 1900 | 2800 | 4.970 |
| 30318 | 90 | 190 | 46.5 | 43 | 36 | 4 | 3 | 341 | 445 | 1800 | 2600 | 5.790 |
| 30319 | 95 | 200 | 49.5 | 45 | 38 | 4 | 3 | 368 | 483 | 1800 | 2600 | 6.800 |
| 30320 | 100 | 215 | 51.5 | 47 | 39 | 4 | 3 | 402 | 490 | 1700 | 2400 | 8.200 |
| 30321 | 105 | 225 | 53.5 | 49 | 41 | 4 | 3 | 432 | 568 | 1600 | 2200 | 9.910 |
| 30322 | 110 | 240 | 54.5 | 50 | 42 | 4 | 3 | 471 | 619 | 1600 | 2200 | 11.500 |
| 30324 | 120 | 260 | 59.5 | 55 | 46 | 4 | 3 | 562 | 754 | 1500 | 2000 | 13.700 |
| 30326 | 130 | 280 | 63.75 | 58 | 49 | 5 | 4 | 639 | 864 | 1300 | 1800 | 17.100 |
| 30328 | 140 | 300 | 67.75 | 62 | 53 | 5 | 4 | 721 | 985 | 1200 | 1700 | 21.700 |
| 30330 | 150 | 320 | 72 | 65 | 55 | 5 | 4 | 825 | 1060 | 1100 | 1600 | 28.500 |
| 30332 | 160 | 340 | 75 | 68 | 58 | 5 | 4 | 880 | 1400 | 1100 | 1600 | 29.000 |
| 30334 | 170 | 360 | 80 | 72 | 62 | 5 | 4 | 1020 | 1340 | 950 | 1400 | 35.000 |
