Home / Products / Thrust Ball Bearing
51400 Series
Thrust ball bearings are separable which makes the assembling quite simple.
The design of thrust ball bearing makes it only possible to carry axial load. It can not carry any radial load.

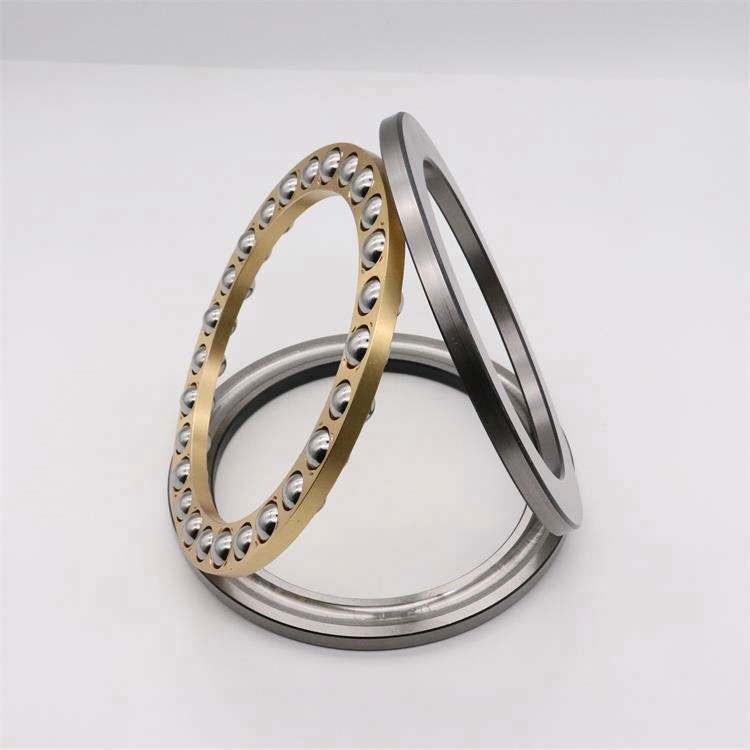

Bearings of this type consist of the washers with raceway and the assembly of ball and cage. The washer that contacts the shaft is called shaft washer, and the one attached to the housing is called housing washer. Thrust bearings in double directions have a central washer connected to the shaft. Single-direction bearings can carry axial load in one direction, and double-direction bearings can carry axial load in two directions. The bearings with housing washer which has spherical mounting surface is self-alignable, which can reduce the effects of mounting error. Applications of these bearings can be found in steering mechanism of automobiles and machine tool spindles.
Request a Quote
Product Description

Features

Thrust ball bearings are separable which makes the assembling quite simple. The design of thrust ball bearing makes it only possible to carry axial load. It can not carry any radial load.

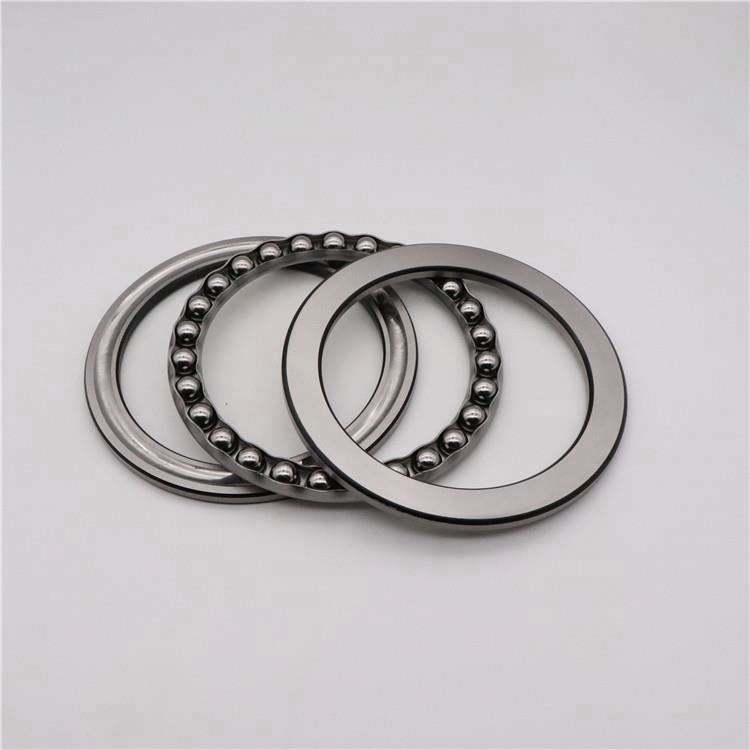

Single-direction thrust ball bearings are composed of washer-like bearing rings with raceway grooves. The ring attached to the shaft is called the shaft washer (or inner ring) while that attached to the housing is called the housing washer (or outer ring).

In double-direction thrust ball bearings, there are three rings with the middle one (center ring) being fixed to the shaft.

There are also thrust ball bearings with an aligning seat washer beneath the housing washer in order to compensate for shaft misalignment or mounting error.

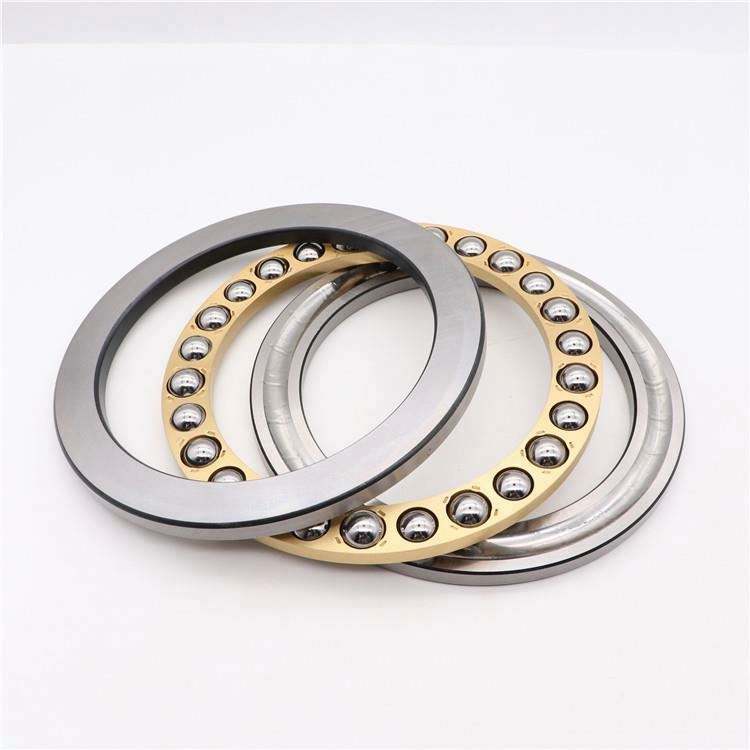

Pressed steel cages are usually used in the smaller bearings and machined cages in the larger ones.

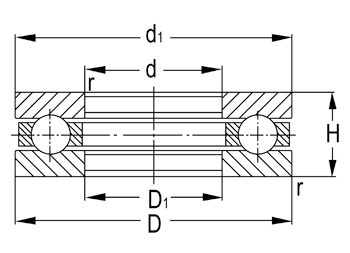

thrust ball bearing gongcheng.jpg



Bearing No.Boundary dimensionsBasic load ratings(kN)Limiting speedMass
mmDynamicStaticrpmKg
dDHCrCorGreaseOil≈
5140525602455.589.22,2003,4000.310
5140630702872.51251,9003,0000.510
5140735803286.81551,7002,6000.760
514084090361122051,5002,2001.060
5140945100391402621,4002,0001.410
5141050110431603021,3001,9001.860
5141155120481823551,1001,7002.510
5141260130512003951,0001,6003.080
5141365140562154489001,4003.910
5141470150602555608501,3004.850
5141575160652686158001,2006.080
5141680170682926927501,1007.120
5141785180723187827001,0008.280
