Home / Products / Thrust Ball Bearing

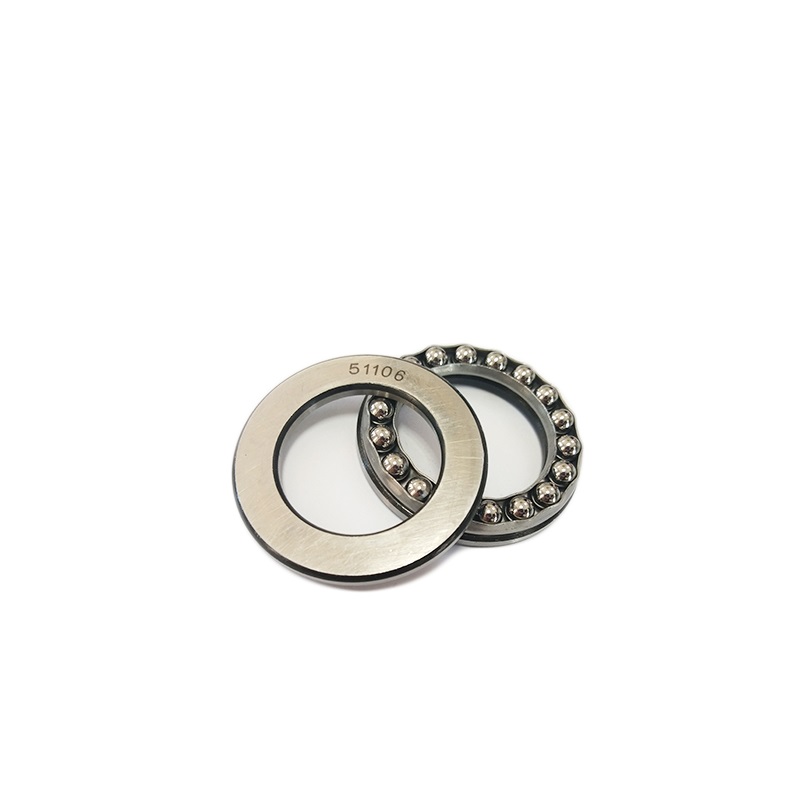

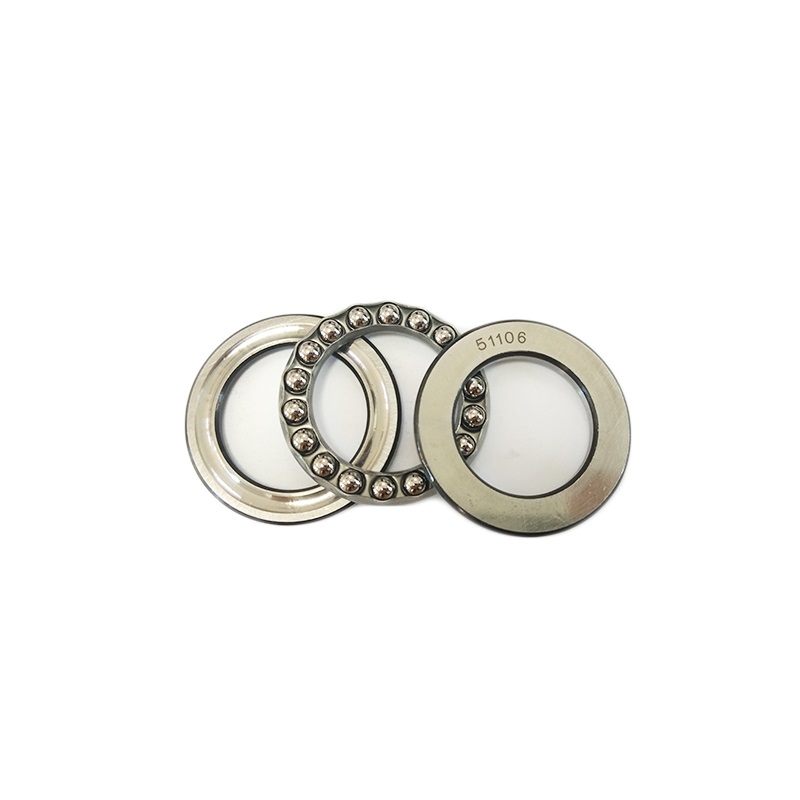

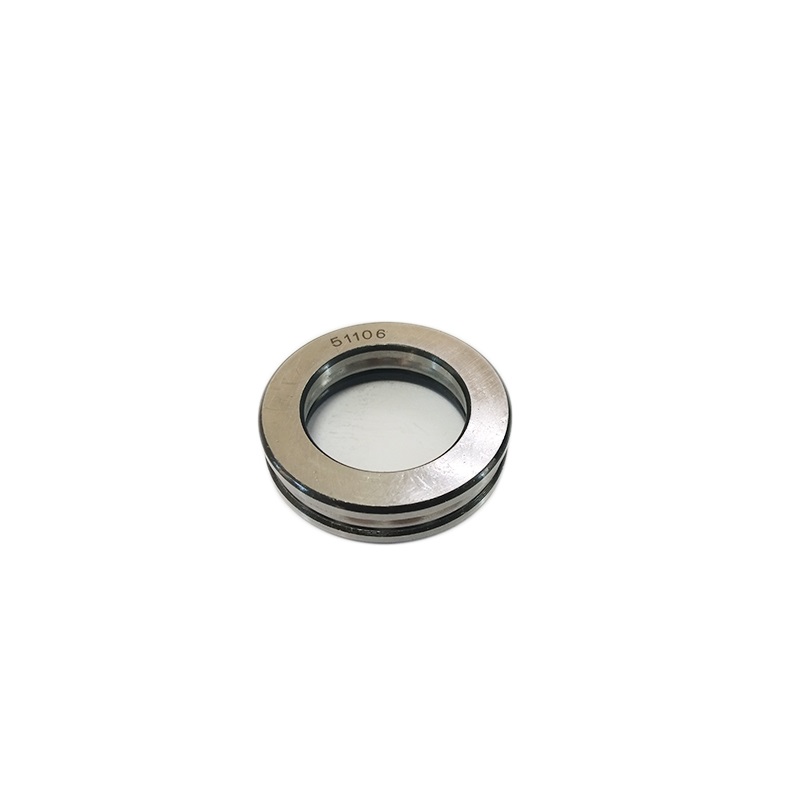

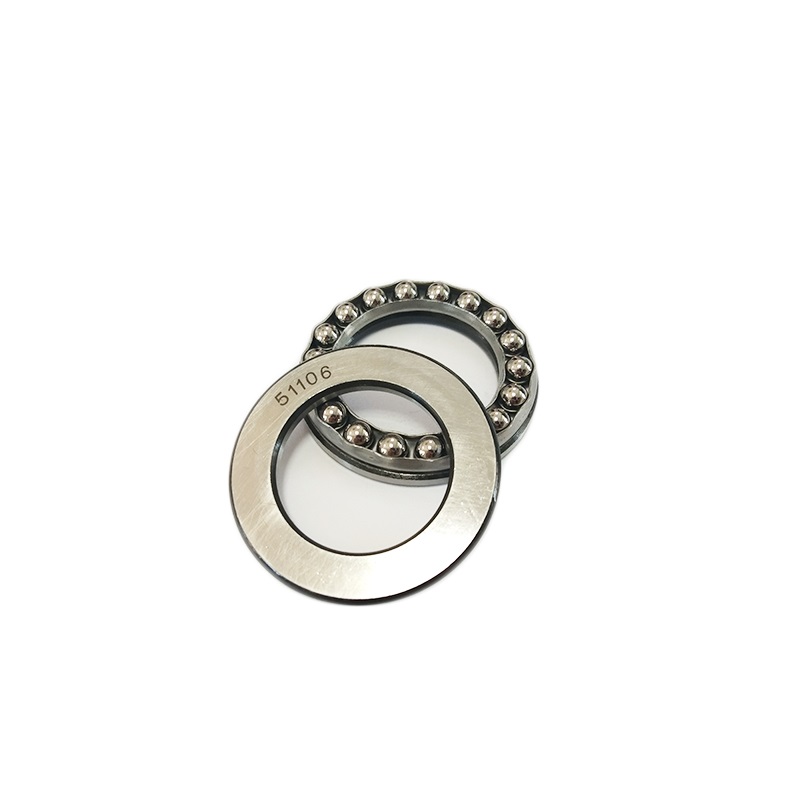

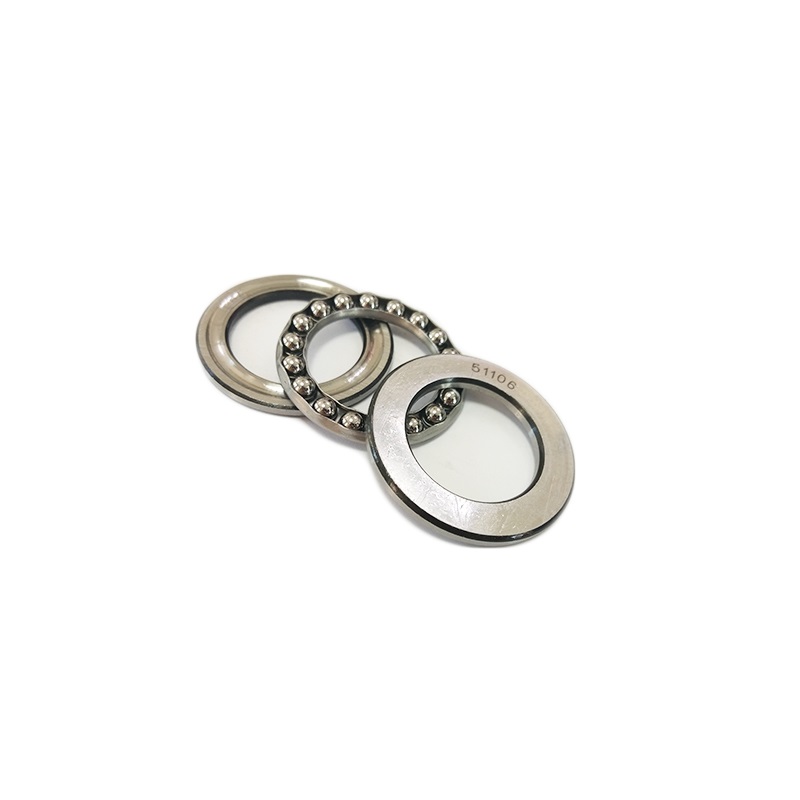

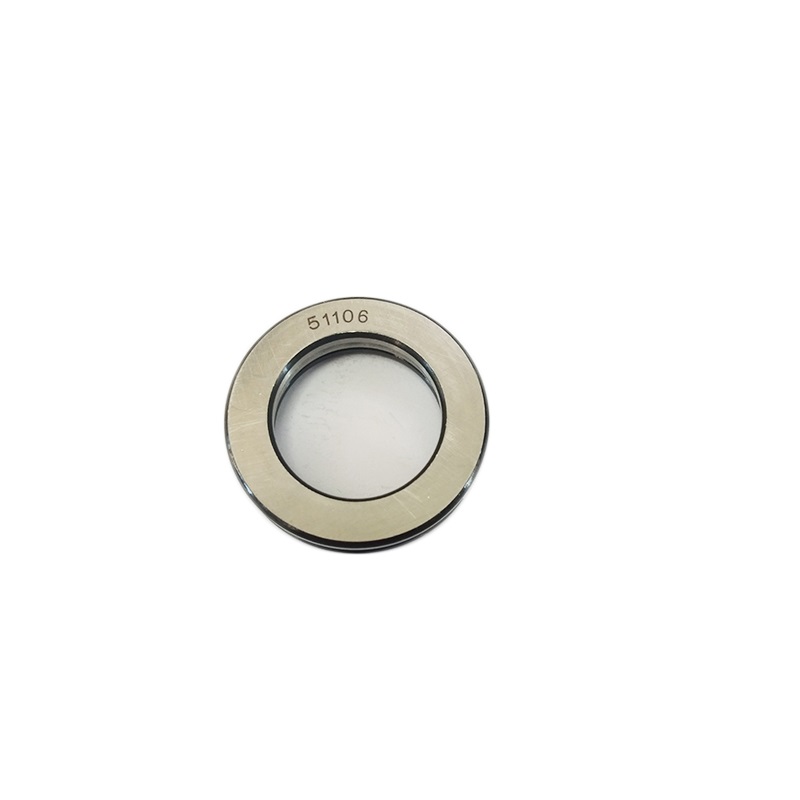

51100 Series
Thrust ball bearings are separable which makes the assembling quite simple.
The design of thrust ball bearing makes it only possible to carry axial load. It can not carry any radial load.
Bearings of this type consist of the washers with raceway and the assembly of ball and cage. The washer that contacts the shaft is called shaft washer, and the one attached to the housing is called housing washer. Thrust bearings in double directions have a central washer connected to the shaft. Single-direction bearings can carry axial load in one direction, and double-direction bearings can carry axial load in two directions. The bearings with housing washer which has spherical mounting surface is self-alignable, which can reduce the effects of mounting error. Applications of these bearings can be found in steering mechanism of automobiles and machine tool spindles.
Request a Quote
Product Description

Features

Thrust ball bearings are separable which makes the assembling quite simple. The design of thrust ball bearing makes it only possible to carry axial load. It can not carry any radial load.

Single-direction thrust ball bearings are composed of washer-like bearing rings with raceway grooves. The ring attached to the shaft is called the shaft washer (or inner ring) while that attached to the housing is called the housing washer (or outer ring).

In double-direction thrust ball bearings, there are three rings with the middle one (center ring) being fixed to the shaft.

There are also thrust ball bearings with an aligning seat washer beneath the housing washer in order to compensate for shaft misalignment or mounting error.

Pressed steel cages are usually used in the smaller bearings and machined cages in the larger ones.

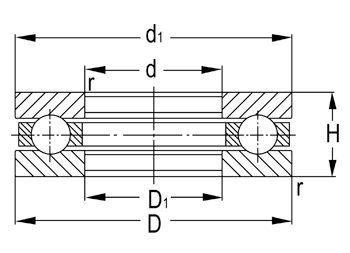

thrust ball bearing gongcheng.jpg



Bearing No.Boundary dimensionsBasic load ratings(kN)Limiting speedMass
mmDynamicStaticrpmKg
dDHCrCorGreaseOil≈
511031730910.818.25,3007,5000.024
5110420351014.224.54,8006,7000.036
5110525421115.230.24,3006,0000.055
511063047111634.24,0005,6000.062
5110735521218.241.53,8005,3000.077
5110840601326.862.83,4004,8000.110
5110945651427663,2004,5000.140
5111050701427.269.23,0004,3000.150
5111155781633.889.22,8004,0000.220
5111260851740.21082,6003,8000.270
5111365901840.51122,4003,6000.310
5111470951840.81152,2003,4000.330
51115751001948.21402,0003,2000.380
51116801051948.51451,9003,0000.400
